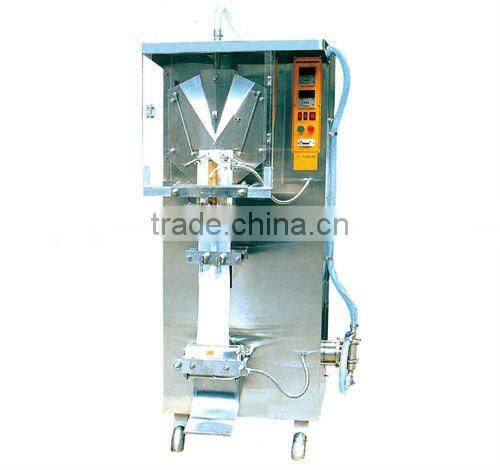

Automatic Insecticide Liquid/Liquor/Water Packaging Machine

Automatic Insecticide Liquid/Liquor/Water Packaging Machine

Function

This machine is designed for the automatic package of liquid materials in Food staffs, pharmacy and chemicals such as water, wine, oil, farm insecticide and etc.

Features
1. All the work of bag making, measuring, material filling, sealing, counting and code printing can be done automatically.
2. Photoelectric and tracing system or PLC system can be provided without your specific requirements. The PLC controller has the advantages such as setting the length of the bag, the out put alarm and the speed and quantity with buttons.
3. Ribbon coder can be equipped to automatically print 1-3 lines of letters such as number and production date

4. This machine use the stainless steel 316L, the machine will not get oxidized easily.

Suitable packaging materials

PET/AL Plating/PE, PET/PP, Nylon compound film and other compound materials can be heat sealed and special liquid packing film such as 3 or 5 layer film.

Technical parameter

1,Capacity: 40-65bags/min

2,Volume: 5-40ml(adjustable)

3,Precision: ±1%

4,Width of bag:30-80mm , length of bag:55-110mm

5,UV sterilizing light 15w

6,Voltage: 220V-380V/50HZ-60HZ, 1800W

7,Weight: 350KG

8,Dimension:1200*900*2000mm

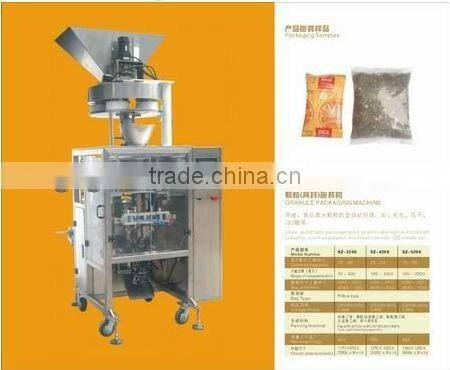

Other pictures of packing packaging machine
