Shampoo,Sauce,Jam,Cream,Ketchup Packing Machine

Shampoo,Sauce,Jam,Cream,Ketchup Packing Machine photo-1
Shampoo,Sauce,Jam,Cream,Ketchup Packing Machine photo-2

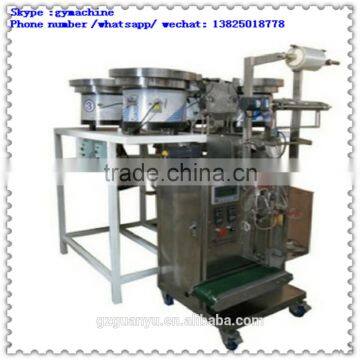

Shampoo,Sauce,Jam,Cream,Ketchup Packing Machine photo-3
Shampoo,Sauce,Jam,Cream,Ketchup Packing Machine photo-4

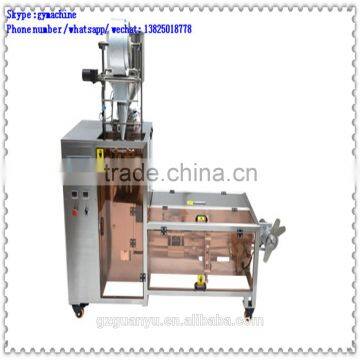

Shampoo,Sauce,Jam,Cream,Ketchup Packing Machine photo-5
Shampoo,Sauce,Jam,Cream,Ketchup Packing Machine photo-6
US$ 15,680 - 28,960 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type Cartons
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 380V/50HZ
Power 7.5kw
Place of Origin Guangdong, China
Brand Name guanyu
Model Number KF02-PD
Weight 350kg
Dimension(L*W*H) 1100*750*1800mm
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Shampoo,Sauce,Jam,Cream,Ketchup Packing Machine
1.4 Side Seal at 4 Lines
2.Auto-packing system
3.Speed: 60-140 bags/min

Specification:

  • Piston pump system for liquid in 4 sides seal with 4 lines
  • Entry level for auto-packing system with high work efficiency
  • Replacement for sealer to save labor costs



Application:

Shampoo,Sauce,Jam,Cream,Ketchup Packing Machine is suitable for shampoo, cream, Sauce, Mayonnaise,ketchup, liquor, oil, jelly etc liquid & paste products seal in 4 side seals at 4 lines.



Principal Features:

  • Form, fill & seal system and piston pump dosing system integrated, compact system, electric driving
  • Computerized control system with 5 inch LCD with descriptive fault indicator
  • Photocell for film length registered and automatic adjustment in 3 bags
  • Various types of laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON
  • aluminum foil based compatible
  • All product contact parts in #304 stainless steel or food grade plastic
  • Output counting



Option:

  • Hot Stamping Date Coder
  • Plexiglass Safety Guard
  • #304 Stainless Steel Frame
  • Product contact parts to be S/S316



Technical Specification:

Bag Type

4 Side Seal at 4 Lines

Working Motion

Intermittent

Working Speed

60 - 140 bags/min

Piston Filling Range

3 - 12 ml

Bag Length

40 to 80 mm ( 1.57 to 3.15 in)

Bag Width

20 to 60 mm ( 0.79 to 2.36 in)

Reel Width

≤240 mm ( 9.45 in)

Film Thickness

0.03 0.08mm

Reel Outer Dia.

≤400mm (15.7in)

Reel Core Dia.

75mm (2.9in)

Voltage

AC 220V 50Hz, 1 phrase

Power Consumption

2.6 kw

Machine Dimension

L 950 mm x W 750 mm x H 1650 mm
(H 33.46 in x W 25.59 in x H 64.96 in)

Shipping Dimension

L 1250 mm x W 850 mm x H 1800 mm
(H 49.21 in x W 33.46 in x H 70.87 in)

Machine Weight

420 kgs


Machine.



Shampoo,Sauce,Jam,Cream,Ketchup Packing MachineShampoo,Sauce,Jam,Cream,Ketchup Packing Machine
