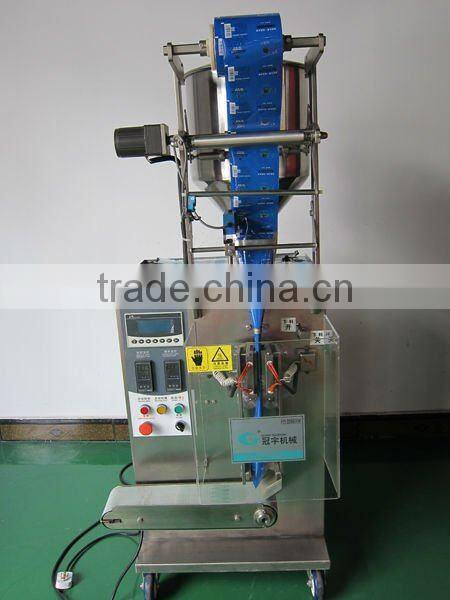

Automatic Liquid Pouch Packing Machine

Automatic Liquid Pouch Packing Machine

Brief description:

This liquid&viscous filling and packing machine adopts 3-step roller system and industrical computer control system.So it make 3 or 4 sides sealing viable. With the man-machine dialogue system, it can change the size of bag, packing speed and fillling capacity accurately and easily. What's more, the colorful lcd touch screen can be set to achieve most of function with english instruction. So it make the machine very user-friendly and the whole production process simpler and more accurate. There are 3 roller system,one couple is for vertical and horizontal heating-sealing, other is cooling sealing. The vertical style use the chess board with anti-leakage line. There are three different cutting format, namely straight line, sawtooth line and dash line. Different pumps can be equipped according to your technology requirement( material)

Application:

This automatic liquid&paste fillling and packing machine is the best choice for filling and packing liquid&paste&granule material, such as ketchup, shampoo, paste, oil, sauce,sediment,cream, pesticide,soysauce,curry,etc.So it's widely used in daily chemical, food, pharmaceutical, chemical and other industries.

Feature:

1:Full automatic, can finish bag making,measuring,filling, sealing, cutting bag together.

2:Single bag and four bags of conjoined packaging is viable

3:Y style is filling liquid and paste, X style is filling and packilng granule.

4:3 or 4 sides sealing can be choosed freely

5:Good sealing, no leakage, high filling precision

Technical parameter:

Pouch length: 40-120mm /70-180mm

Pouch width: 40-90 mm

Packing speed: 30-120 bags/min. Speed according to your bag size and material

Fillling capacity: 1-50g

Consumption power: 3.5KW AC380V

Machine dimension: L1400 mm*W1000mm*H1800mm

Weight: about 550 KG
