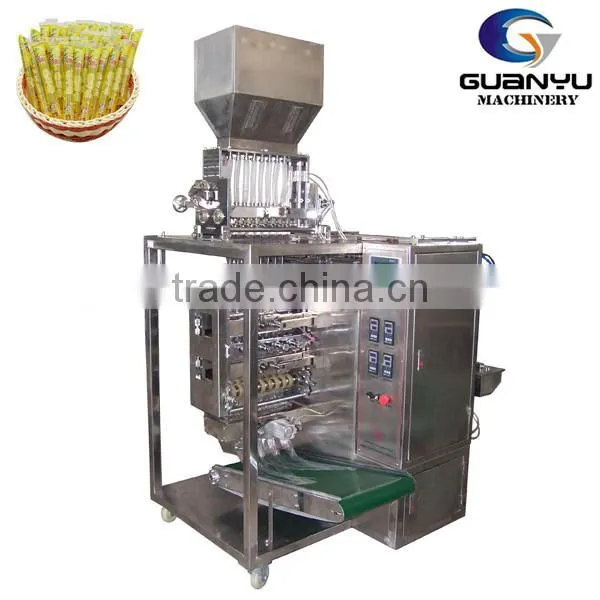

Multi lanes ketchup,tomato paste,catsup automatic packing machine
Application:
Power, liquid, cream and granule like sugar, coffee packed in a long narrow pouch. Packing for different materials can be accomplished by different dosing unit.
Standard Features:
1. The machine can automatically complete multi-lane products measuring, feeding, filling and bag forming, date code printing, bag sealing and cutting. And hole punching as option.
2. Motor driven heat seal film pulling system.
3. High sensitive fiber optic photo sensor can automatically trace color mark accurately.
4. PLC control system combined with touch screen, can easily set and change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
5. PID temperature controller monitors heat sealing temperature within ±1°C.
Technical parameter:
Multi Lanes Packing Machine | |||
Name | 4Lanes Machine | 6Lanes Machine | 8Lanes Machine |
Model | DXD-480K | DXD-720K | DXD-880K |
Filling | Volume cups | ||
Bag style | four sides sealed, square bags | ||
Dosage | 1-30ml/bag | ||
Bag size (mm) | L30-140 W25-60 | L30-140 W25-55 | |
Capacity (bags/min) | 180 Bag/Min | 240 Bag/Min | 350 Bag/Min |
Control style | PLC+ Chinese/ English screen | ||
Pneumatic request | 0.24cbm/min, 0.6Mpa | ||
Power | 2.5kw | 3.2kw | 3.5kw |
Voltage | AC380v 3 phases 50Hz | ||
Body shell | Sheet steel spray painted / Stainless steel | ||
Weight | G.W 300kg | G.W 360kg | G.W 400kg |
Dimension (LWH/cm) | L120*W110*H240 | L130*W120*H240 | L150*W140*H240 |
Main function | These multi lanes granule packing machines, adopt advanced PLC controlling system and foreign technology. They can automatically accomplish making bags, weighing,filling, sealing, cutting etc. They can be used to pack all kinds of granules or grains, such as, coffee, sugar, salt, seasoning, desiccant powder ,etc. | ||
Optional Parts for Main Machine:
(1) Date Code Printer
(2) Straight Line Cut with easy tear
(3) Hole punching device
(4) Fix number bag cutting device
Optional Dosing Device:
(1) Auger screw filler(for powder)
(2) Volumetric cup filler(for granule)
(3) Electrical gear pump(for liquid)
(4) Piston pump(for liquid or cream)
The company show room:
Package:
Exhibition:
After training:
When you buy our packing machine, you should be after trained to use the packing machine. We have user manual, online video to teach you how to use the packing machine.
After sales service:
1. We have one year warranty and lifetime maintenance.
2. If the buyer has any questions from our technical department, we can supply on-line service.
3. Within one year, if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; both of them are free of charge
4. After one year, we offer to repair the machine, but cost of the changed parts are paid by customers.
