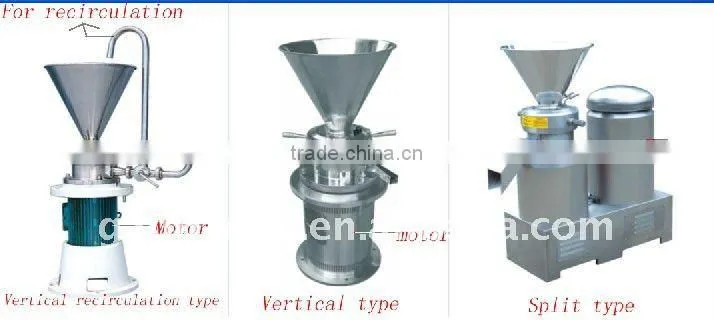

Split colloid mill/Colloidal mill/Colloidal grinder
Description
Split type Colloid mill can be divided into stainless steel colloid mill, and half-formed stainless steel colloid mill. The basic principles is when fluid and semi-fluid material go through the fixed gear and moved gear which is high-speed relatively linked, can be influenced by strong shear, friction and high-frequency vibration, and be effectively crushed, emulsified, homogenized. So that precision products can be made.
Structure of Colloid Mill
The main structures of colloid mill are grinding parts, the base transmission department and dedicated motor. The dynamic and still millstones in the core part and mechanical seal parts are the most key parts. Therefore, according to the different natures of the materials, the selection must be different. But the materials are made of stainless steel or specific materials. The motor need to be designed specifically, depend different model. The motor flange should install retaining plate to prevent leakage.
Usage of Colloid Mill
1. Food Industry: dairy products, chocolate, soy sauce, jam, peanut butter, butter and beverage
2. Chemical Industry: paints, lubricating oil, spices, dyes, emulsified asphalt, emulsified rubber, catalyst, paint coating etc.
3. Pharmaceutical Industry: cod liver oil, athlete cream, bee honey, pollen etc.
4. Daily Chemical Industry: shoe polish, toothpaste, cosmetics, balsam, soap, and detergent, etc
5. Other Industry: building industry, paper industry, plastic industry, battery industry, etc
Technical Parameters
| Model | SCOLM-80 | SCOLM-100 | SCOLM-120 |
| Emulsification fineness(um) | 2-40 | 2-40 | 2-40 |
| Adjustment range(mm) | 1-0.01 | 1-0.01 | 1-0.01 |
| Output(t/h) | 0.3-1 | 0.5-2 | 0.7-3 |
| Motor power(kw) | 4 | 5.5 | 7.5 |
| Voltage(V/HZ) | 380,60 | 380,60HZ | 380/60HZ |
| Speed(rpm) | 2880 | 2880 | 2880 |
| Grinder diameter(mm) | 80 | 100 | 120 |
If you need more information and quotation about the machine.
please contact :Jerry
Skype :gymachine
Phone number /whatsapp/ wechat: 13825018778
