Kaneko Valve MOOU Series

Specifications

Kaneko Valve
FLUID : CLEAN AIR
FLUID TEMPERATURE : -20 - 60 deg.C
AMBIENT TEMPERATURE : -20 - 60 deg.C

Kaneko Valve



Valve

A three-way solenoid valve has three piping connections and two inner valve seats. One of the valve seats is normally open, and the other is normally closed.
Three-way solenoid valves are usually used to control the flow of air used to turn on or off single-acting cylinder, diaphragm actuators, etc., but they can also be used for direct control of the flow of liquid

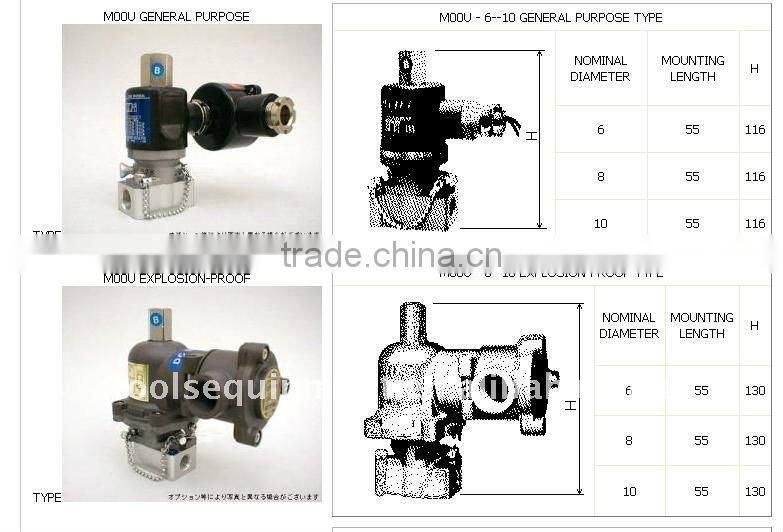

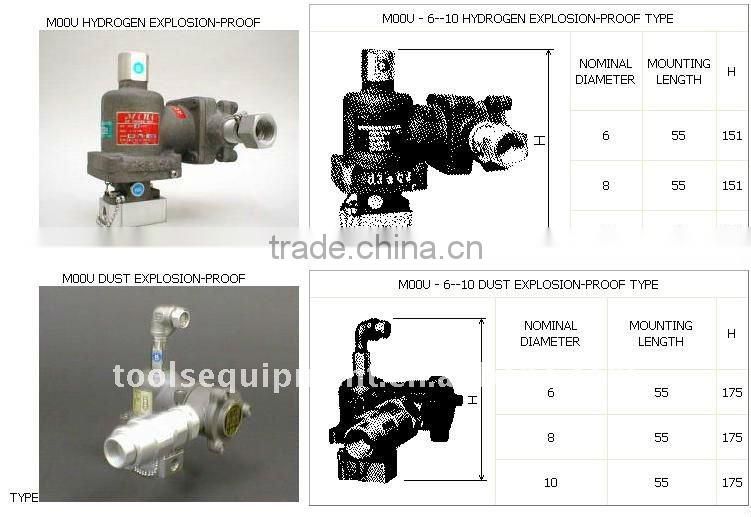

M00U SERIES]

Explosion-proof terminal box turns. As the explosion-proof terminal box turns 340 degrees, conduit connections are easy to make. Universal function. Four modes of operation are possible, depending on the operating environment. Long life of five million operations or more. Compact and light. Particularly explosion-proof type valves are very compact without parallel.

[STANDARD SPECIFICATIONS]

FLUID : CLEAN AIR FLUID TEMPERATURE : -20 - 60 deg.C AMBIENT TEMPERATURE : -20 - 60 deg.C DUTY CYCLE : 100% CONTINUOUSLY RATED OPERATING VOLTAGE RANGE : +10% , -15% WORKING PRESSURE , Cv. FLOW FACTOR : See below (I) ELECTRICAL SPECIFICATIONS : See below (II)

(I) WORKING PRESSURE , Cv. FLOW FACTOR

ORIFICE TYPE	ORIFICE SIZE	WORKING PRESSURE	Cv. FLOW FACTOR
BLANK	1.6	0 - 0.7MPa	0.084
01	3.0	0 - 0.4MPa	0.22

(II) STANDARD VOLTAGE(GENERAL PURPOSE TYPE 12PG , EXPLOSION-PROOF TYPE E12PU)

COIL INSULATION CLASS : H

A C			D C
V / Hz	INRUSH A	HOLDING A	V	A
100 / 50	0.27	0.16	24	0.33
100 / 60	0.25	0.13	48	0.15
110 / 60	0.25	0.15	100	0.072
200 / 50	0.14	0.08	110	0.08
200 / 60	0.13	0.07	125	0.06
220 / 60	0.13	0.08

[STANDARD SPECIFICATIONS]

Product designations are determined according to specifications. Refer to the explanation of designation for details.
