Kaneko Valve MOOU Series 3 Ways Solenoid Valve

Kaneko Valve MOOU Series 3 Ways Solenoid Valve thumbnail-1
Kaneko Valve MOOU Series 3 Ways Solenoid Valve photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Pressure Reducing
Pressure:
High Pressure
Contact Supplier Request Quote Chat Now
Shenzhen Willdone Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Pressure Reducing
Pressure High Pressure
Power Solenoid
Material Stainless Steel
Temperature of Media Normal Temperature
Media Other, Clean Air
Port Size 15A 20A 25A 32A 40A 50A
Place of Origin Japan
Model Number MOOU Series
Brand Name Kaneko

Specifications

Kaneko Valve
FLUID : CLEAN AIR
FLUID TEMPERATURE : -20 - 60 deg.C
AMBIENT TEMPERATURE : -20 - 60 deg.C

Kaneko



Valve

A three-way solenoid valve has three piping connections and two inner valve seats. One of the valve seats is normally open, and the other is normally closed.
Three-way solenoid valves are usually used to control the flow of air used to turn on or off single-acting cylinder, diaphragm actuators, etc., but they can also be used for direct control of the flow of liquid



M00U SERIES]

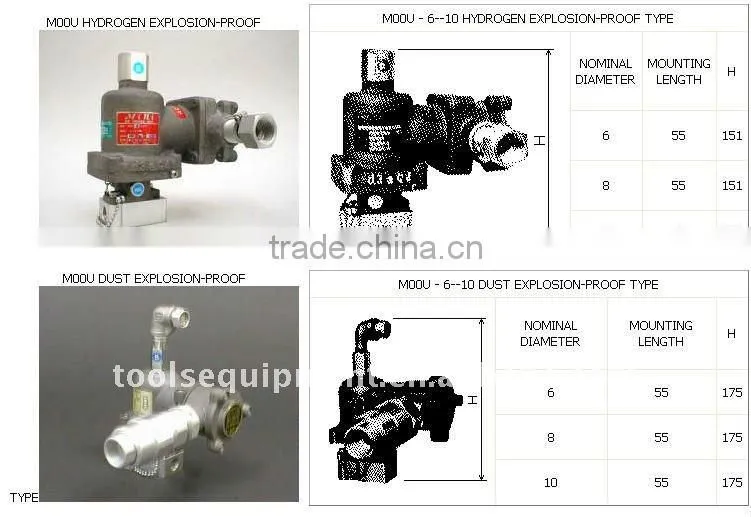

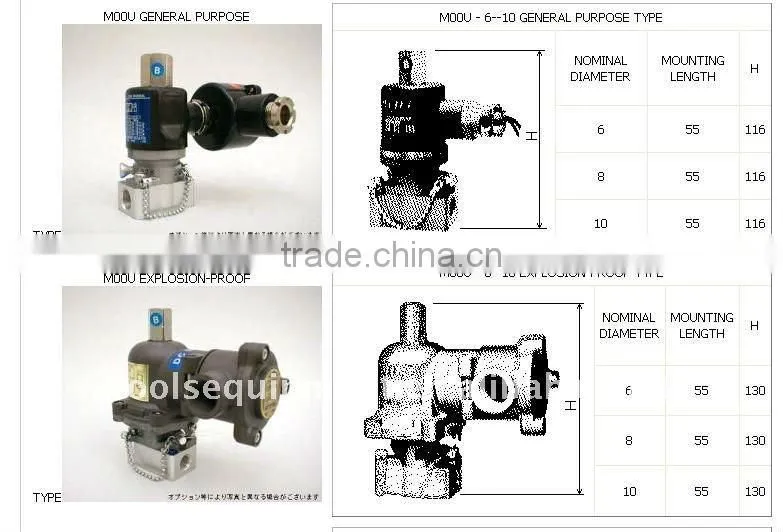

  • Explosion-proof terminal box turns.
    • As the explosion-proof terminal box turns 340 degrees, conduit connections are easy to make.
  • Universal function.
    • Four modes of operation are possible, depending on the operating environment.
  • Long life of five million operations or more.
  • Compact and light.
    • Particularly explosion-proof type valves are very compact without parallel.

[STANDARD SPECIFICATIONS]
  • FLUID : CLEAN AIR
  • FLUID TEMPERATURE : -20 - 60 deg.C
  • AMBIENT TEMPERATURE : -20 - 60 deg.C
  • DUTY CYCLE : 100% CONTINUOUSLY RATED
  • OPERATING VOLTAGE RANGE : +10% , -15%
  • WORKING PRESSURE , Cv. FLOW FACTOR : See below (I)
  • ELECTRICAL SPECIFICATIONS : See below (II)
(I) WORKING PRESSURE , Cv. FLOW FACTOR
ORIFICE TYPE ORIFICE SIZE WORKING PRESSURE Cv. FLOW FACTOR
BLANK 1.6 0 - 0.7MPa 0.084
01 3.0 0 - 0.4MPa 0.22


(II) STANDARD VOLTAGE(GENERAL PURPOSE TYPE 12PG , EXPLOSION-PROOF TYPE E12PU) COIL INSULATION CLASS : H
A C D C
V / Hz INRUSH A HOLDING A V A
100 / 50 0.27 0.16 24 0.33
100 / 60 0.25 0.13 48 0.15
110 / 60 0.25 0.15 100 0.072
200 / 50 0.14 0.08 110 0.08
200 / 60 0.13 0.07 125 0.06
220 / 60 0.13 0.08

[STANDARD SPECIFICATIONS]
  • Product designations are determined according to specifications.
  • Refer to the explanation of designation for details.



Kaneko Valve MOOU Series 3 Ways Solenoid ValveKaneko Valve MOOU Series 3 Ways Solenoid Valve
