Kaneko Valve M20 Series

Kaneko Valve M20 Series thumbnail-1
Kaneko Valve M20 Series photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Pressure Reducing
Pressure:
Other, 0 - 0.099 MPa
Contact Supplier Request Quote Chat Now
Shenzhen Willdone Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Pressure Reducing
Pressure Other, 0 - 0.099 MPa
Power Solenoid
Material Stainless Steel
Temperature of Media Other, -20 - 60 deg.C
Media Other, clear air
Port Size 15A 20A 25A 32A 40A 50A
Place of Origin Japan
Model Number M20 Series
Brand Name Kaneko

Specifications

Kaneko Valve
FLUID : CLEAN AIR
FLUID TEMPERATURE : -20 - 60 deg.C
AMBIENT TEMPERATURE : -20 - 60 deg.C
DUTY CYCLE : 100%

Kaneko Valve

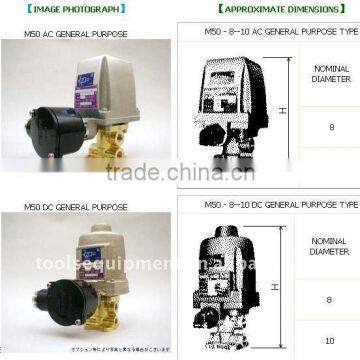

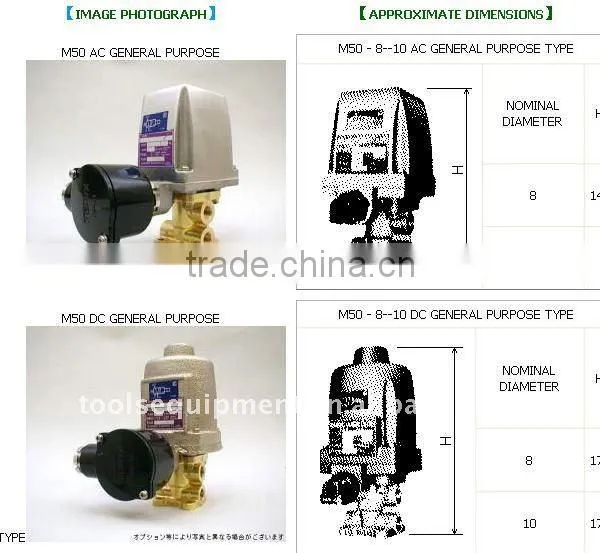

[M50 SERIES]

  • Packed type
    • Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid.
  • Safe explosion-proof construction.
    • Explosion-proof type valves certified by the Ministry of Labor.
  • Highly durable.
    • A mechanical life of five million operations or more is expectable.
  • Manual check is possible.
    • Manual operation is possible. This mode can be used for operation check or switching in case of emergency.


[STANDARD SPECIFICATIONS]

  • FLUID : CLEAN AIR
  • FLUID TEMPERATURE : -20 - 60 deg.C
  • AMBIENT TEMPERATURE : -20 - 60 deg.C
  • DUTY CYCLE : 100% CONTINUOUSLY RATED
  • OPERATING VOLTAGE RANGE : +10% , -15%
  • WORKING PRESSURE : 0 - 0.099 MPa
  • Cv. FLOW FACTOR : 0.18
  • ELECTRICAL SPECIFICATIONS : See below

STANDARD VOLTAGE(GENERAL PURPOSE TYPE 1 , EXPLOSION-PROOF TYPE E1)
COIL INSULATION CLASS : B
A C D C
V / Hz INRUSH A HOLDING A V A
100 / 50 2.8 0.50 24 0.91
100 / 60 3.1 0.56 48 0.53
110 / 60 2.6 0.46 100 0.24
200 / 50 1.4 0.25 110 0.26
200 / 60 1.6 0.28 125 0.20
220 / 60 1.3 0.23

[STANDARD SPECIFICATIONS]
  • Product designations are determined according to specifications.
  • Refer to the explanation of designation for details.
