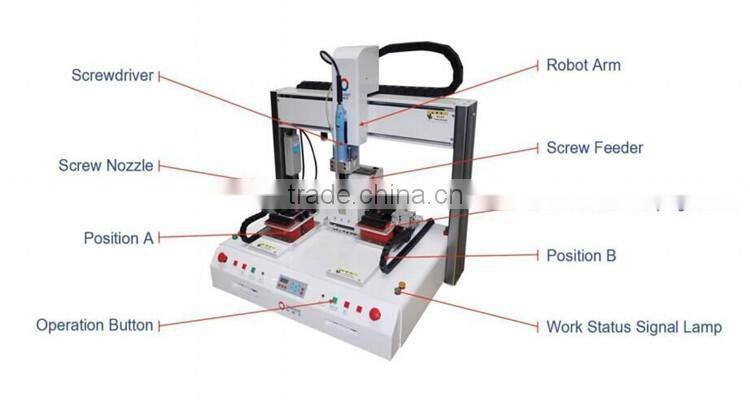

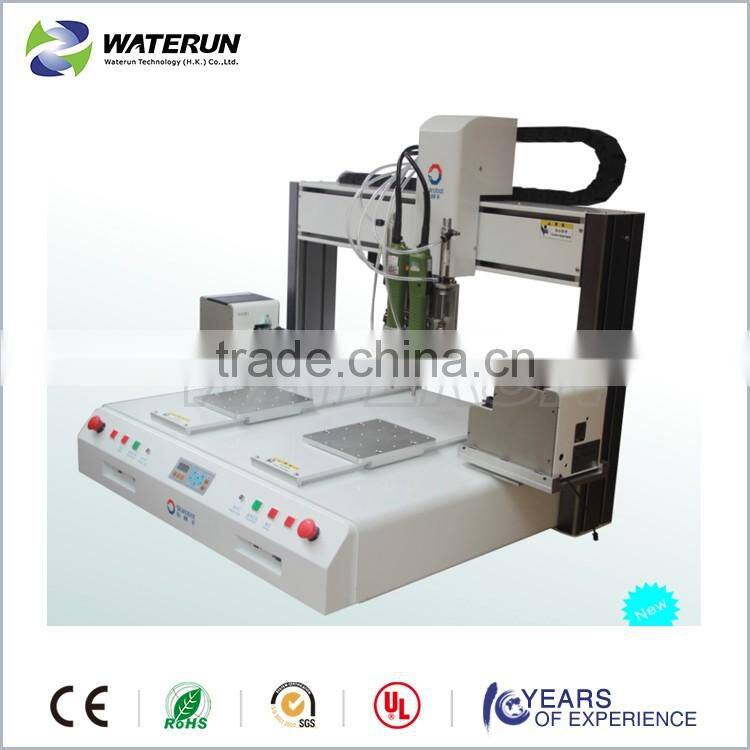

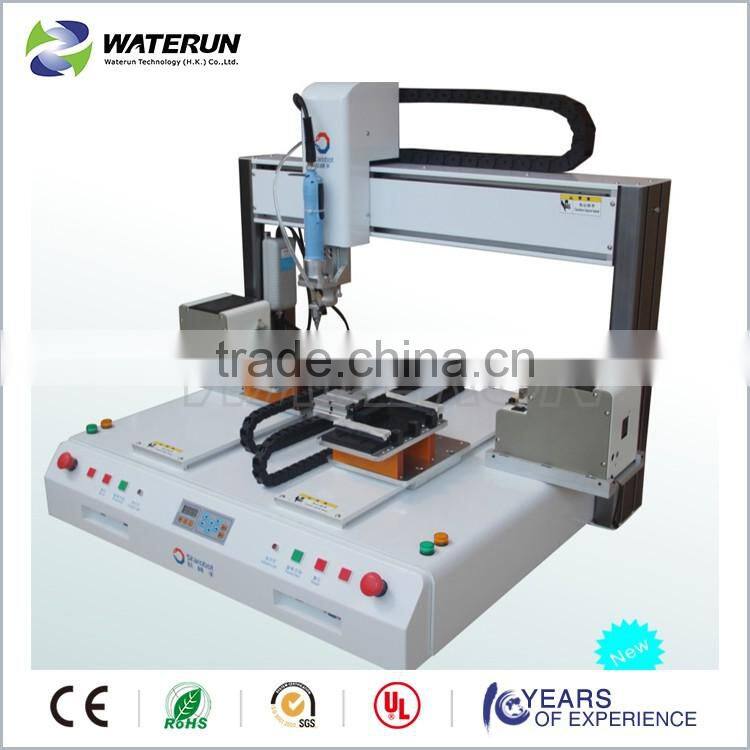

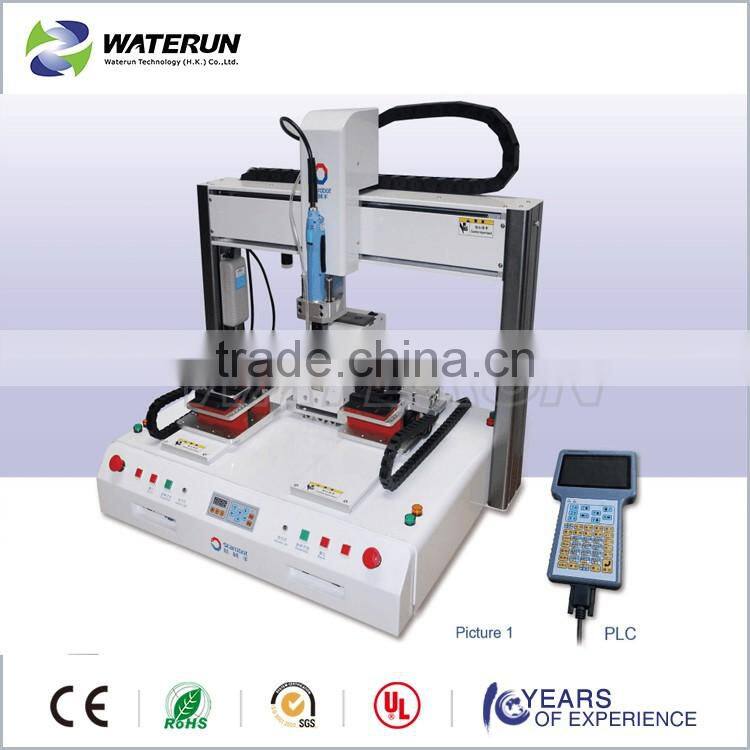

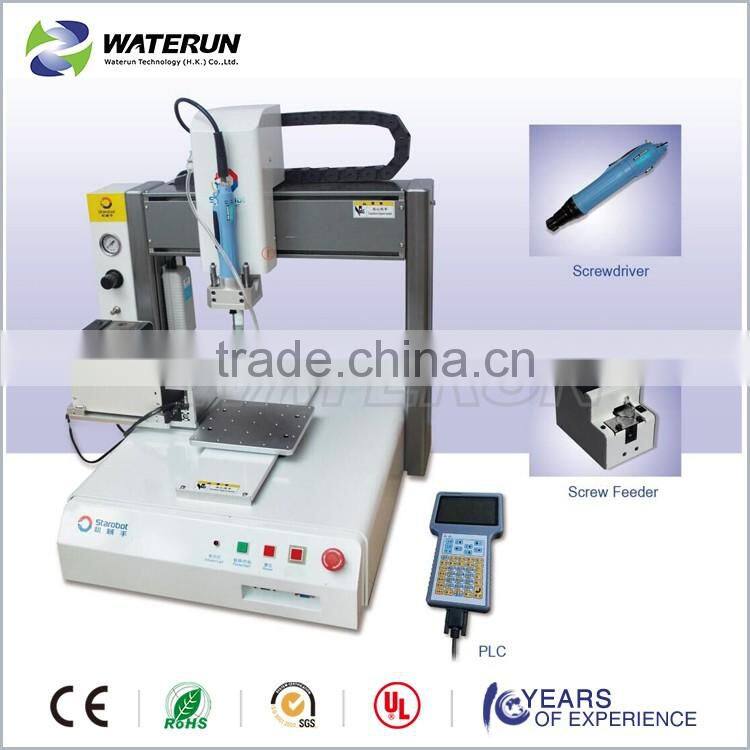

Automatic desktop screw fastening robot/screw feeder machine/Automatic screw feeders
| Item | Screw Fastening Robot |
Model | LS-400YY |
Voltage | 110V/220V AC |
| Drive Mode | 4 axis precision step motor |
| Operating Range | 500mm x 400mm x 80mm (X*Y*Z) |
| X / Y Axis Movement Speed | 0.1-800mm/sec |
| Z Axis Movement Speed | 0.1-400mm/sec |
| Minimum Analysis | 0.01mm (X*Y*Z) |
| Maximum Portable Load | 8kg (for work platform) |
| Program Capacity | Max.255 programs |
| Operate Temperature | 0°C~40 °C |
| Operate Humidity | 20~90% |
| Dimensions | 820 x 810 x 780mm |
| Weight | about 85kg |
| Optional Combinations | 1.One screw feeder, One screwdriver 2. Two screw feeder, One screwdriver 3. Two screw feeder, Two screwdriver
|

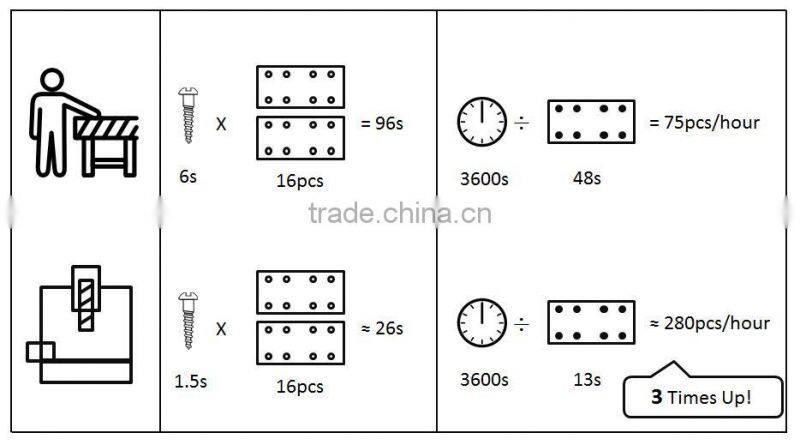

How does the screw tightening robot improve production efficiency?
Applications:
It is suitable for all kinds of screw fastening process on mobile phones, keyboards, monitors, car accessories, toys, small home electrical appliances, integrated circuits, printed circuit boards, LCD screen, electronic components (such as relays, speakers).
Features:
1.With intelligent detection function, can automatically detect leakage lock, lock, slide tooth, double Y design, and able to work alternately
2. Strong flexibility, the standard universal fixture applicable model of screw lock.
3. Strong commonality, replace the screw conveyor modules can be adapted to M1.2 - M3.0 screw lock.
4. Equipment for small, save space, reduce the plant resources. Easy to put into the production line, and before the standard after the function.
5. Double Y design, alternating operation, maximize production efficiency, production of profit maximization, the lowest cost of production.
6. Application: Especially suitable for all kinds of screw lock pay of consumer electronics, such as calculators, navigation, audio, camera, laptop, tablet PC, learning machine, small home appliance, etc.
♦ Packaging & Shipping
| Item | Screw Fastening Robot |
| Package | 1 set/ctn |
| Delivery | 5-7 days |
| Payment | Bank, Westerun Union, Paypal |
| Port | Shenzhen |
| Shipment | A.By Courier: 4-7 Working days by special offer |
| B.By Air: 7 Working days at appointed airport | |
| C.By Sea: 20-25 Working days at appointed port |
1.We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for Electronic Assembly Industry.
2. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.
3. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time is just 3 days.
4. We can also customize the products to fulfill different requirements.
5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.
6.Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your reliable partner and will return to you with good products and good support.
7.Professional: We have been in this business for more than 10 years. We have a strong professional team with various experiences.
8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
9. Price: we always offer competitive prices and help our customers to cost down.
10. Quality: we do 100% inspection before the shipment.
11. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due to our mistakes.
