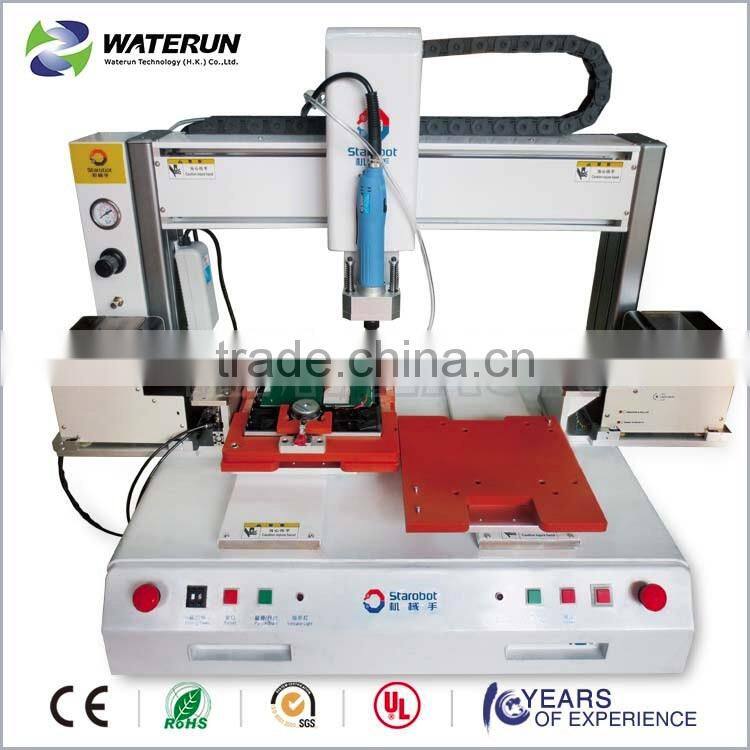

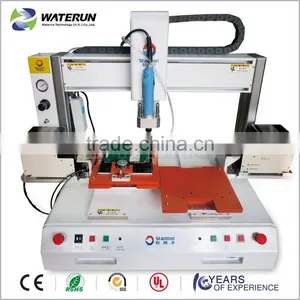

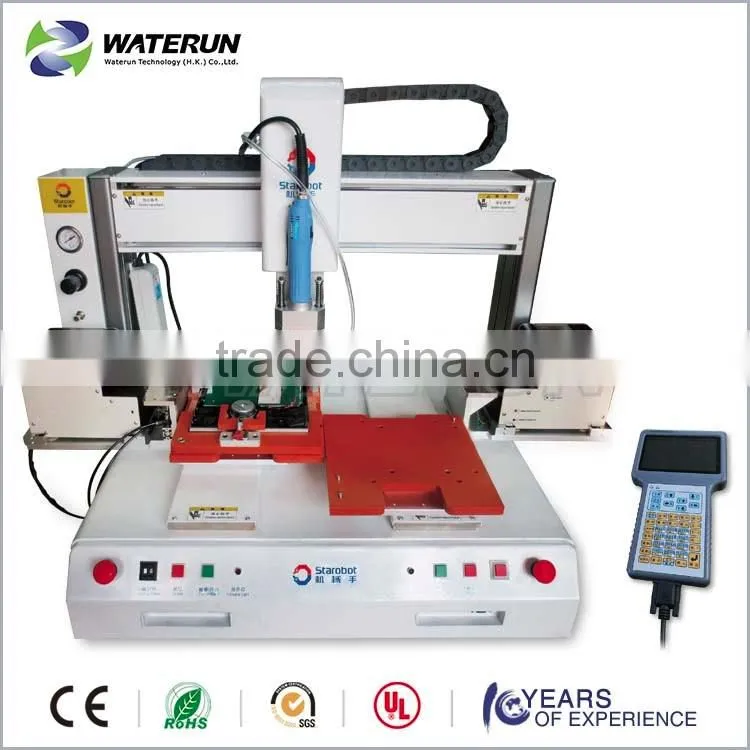

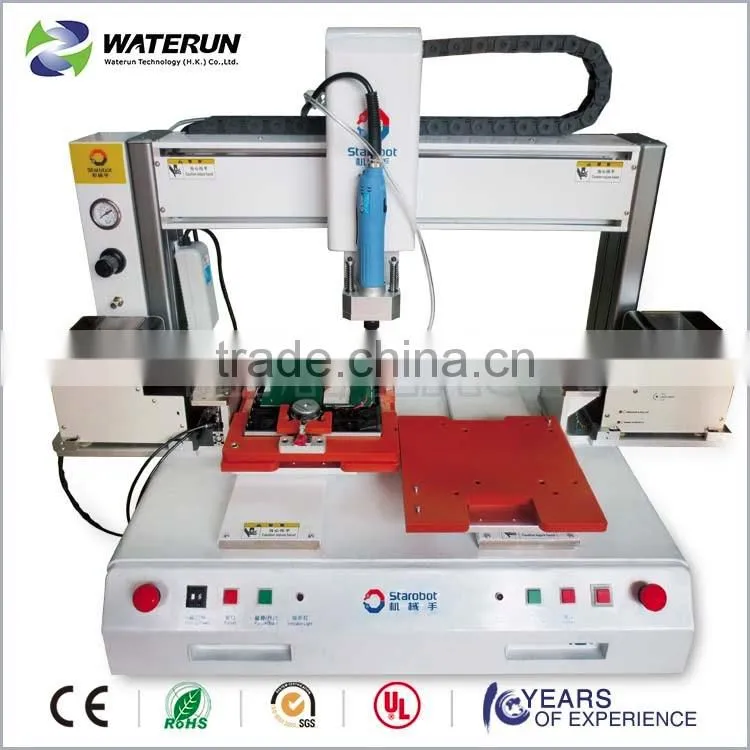

LS-400YY screw fastening automatic screwdriver machine for assembly
| Type | LS-400YY screw fastening automatic screwdriver machine for assembly |
Model | LS-400YY |
Voltage | 110V/220V AC |
| Drive Mode | 4 axis precision step motor |
| Operating Range | 500mm x 400mm x 80mm (X*Y*Z) |
| X / Y Axis Movement Speed | 0.1-800mm/sec |
| Z Axis Movement Speed | 0.1-400mm/sec |
| Resolution | 0.01mm |
| Maximum Portable Load | 8kg (workpiece) |
| Program Capacity | 255 programs |
| Operate Temperature | -10°C~40 °C |
| Operate Humidity | 20~90% |
| Dimensions | 820 x 810 x 780mm |
| Weight | about 80kg |
| Optional Accessory | A. one screw feeder, one screwdriver B. two screw feeder, one screwdriver C. two screw feeder, two screwdriver |
| Accessories | Different screw feeder and screwdriver combination to meet different requirement |
How does the screw tightening robot improve production efficiency?
Project Example: products require 8 umbers of M3 screws
Screw Robot: LS-300YY-D
| Object Located | Sate Screw Tightening | Collect the Finished Object | Next Station |
| 2s | 8 x 1.5s | 2s | |
| During these procedures, workder can operate other object placing | |||
- The stepper motor drive and the advanced motion control algorithm for the five-axis effectively improve the positioning accuracy and repeat precision.
- Smart detection function: when a screw is missing or the screw does not fill in place, the machine will give an alarm.
- It guarantees the high precision of screw fastening which cannot be achieved by the traditional manual screw fastening.
- Besides, it improves the production efficiency and reduces the labor cost.
- Suitable for most of the screws, especially the stainless steel screws.
- It is easy to learn the operation. One operator can operate several machines at the same time.
- The rail of the screw feeder is adjustable. (Applicable screws: M1.5 – M5.0)
| Model | LS-400YY screw fastening automatic screwdriver machine for assembly |
| Package | 1 set/ctn |
| Delivery | 5-7 days |
| Payment | Bank, Westerun Union, Paypal |
| Port | Shenzhen |
| Shipment | A.By Courier: 4-7 Working days by special offer |
| B.By Air: 7 Working days at appointed airport | |
| C.By Sea: 20-25 Working days at appointed port |
1.We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for Electronic Assembly Industry.
2. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.
3. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time is just 3 days.
4. We can also customize the products to fulfill different requirements.
5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.
6.Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your reliable partner and will return to you with good products and good support.
7.Professional: We have been in this business for more than 10 years. We have a strong professional team with various experiences.
8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
9. Price: we always offer competitive prices and help our customers to cost down.
10. Quality: we do 100% inspection before the shipment.
11. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due to our mistakes.
