Home > Products > Other products > Industrial robotic manufacturing screw fastening robot
Industrial robotic manufacturing screw fastening robot
- 100 Set / Sets per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Starobot | Model Number: | LS-300 |
Condition: | New | After-sales Service Provided: | No overseas service provided |
Product Description

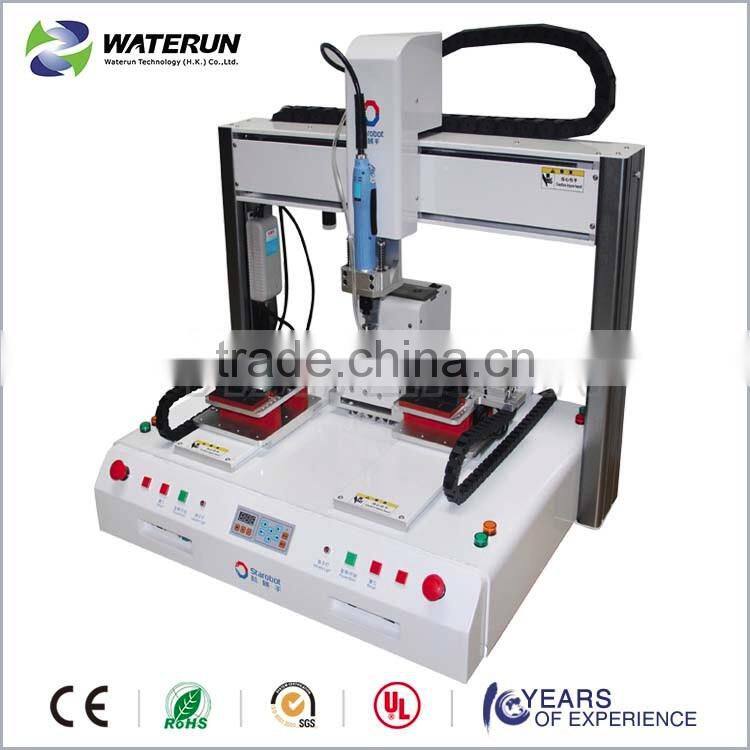

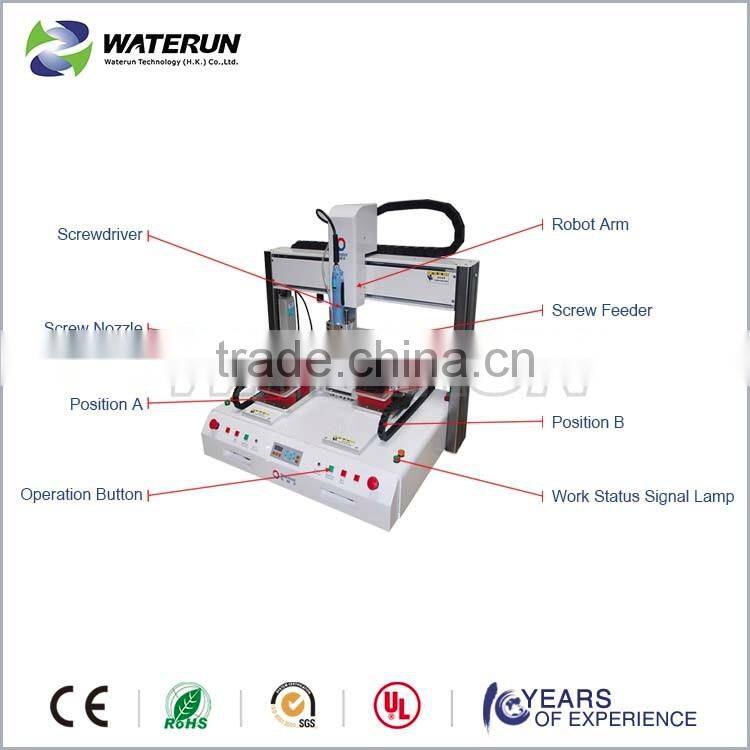

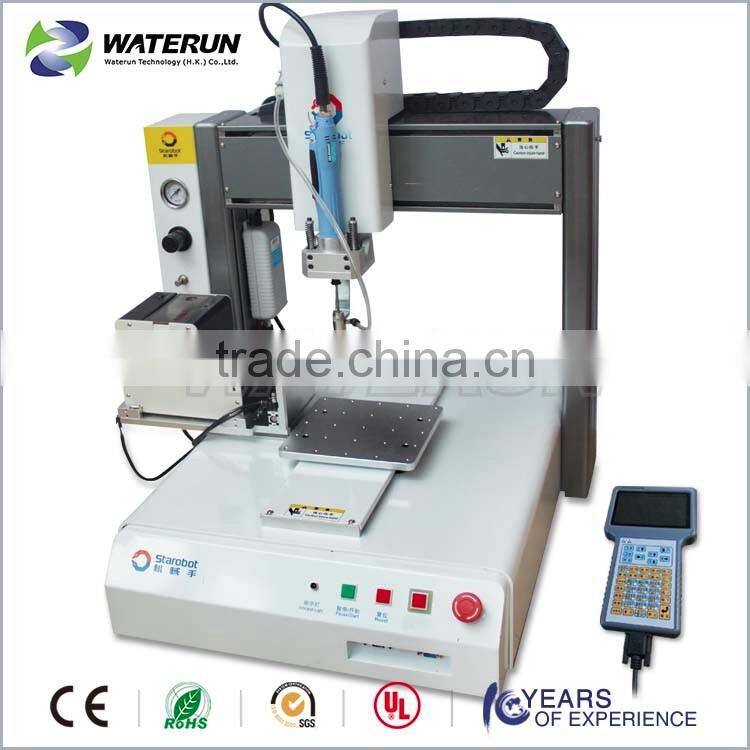

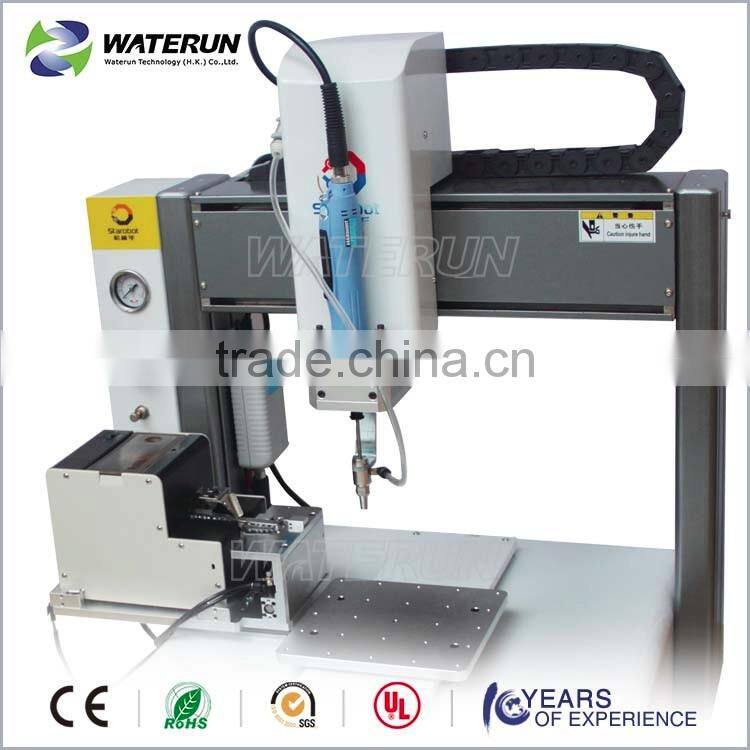

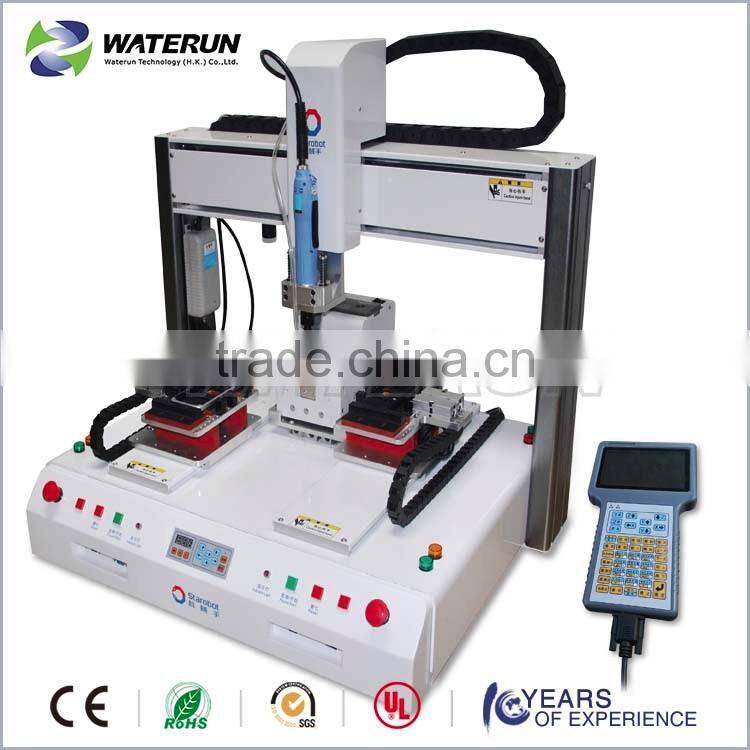

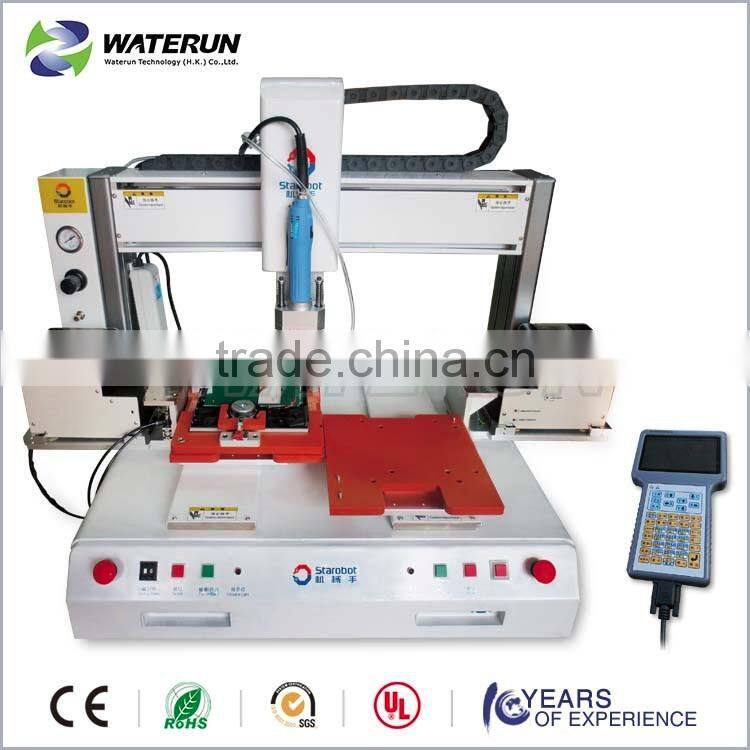

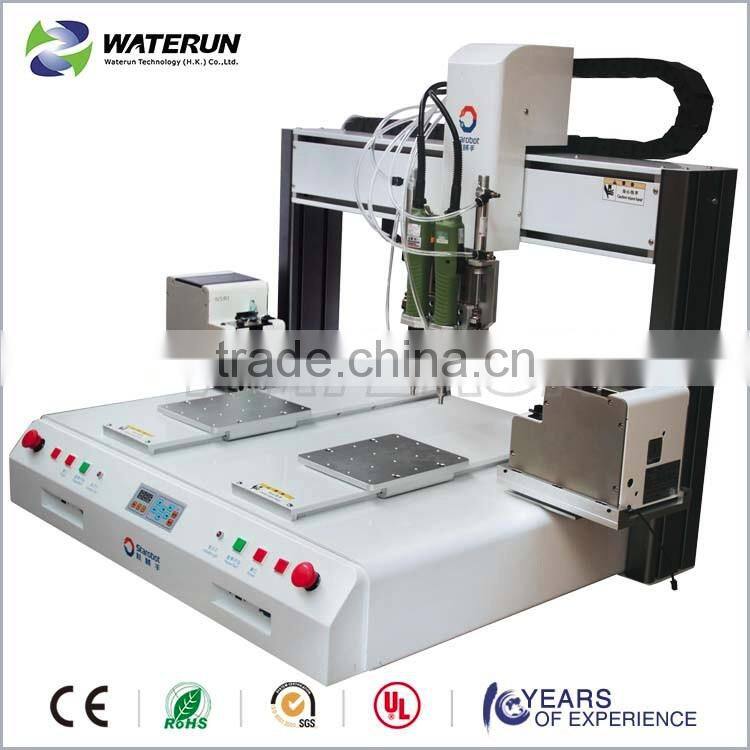

Industrial robotic manufacturing screw fastening robot
Model | Industrial robotic manufacturing screw fastening robot |
Voltage | 110V/220V AC |
Drive Mode | 3 axis precision step motor |
Operating Range | 300mm x 300mm x 80mm (X*Y*Z) |
X / Y Axis Movement Speed | 0.1-800mm/sec |
Z Axis Movement Speed | 0.1-400mm/sec |
Repeatablity Accurancy | ±0.0002mm (X*Y*Z) |
Resolution | 0.01mm (X*Y*Z) |
Maximum Portable Load | 8kg (for work platform) |
Program Capacity | Max 255 programs |
Digital Display | 0°C~40 °C |
Dimensions | 620 x 600 x 700mm |
Weight | about 60kg |
How does the screw tightening robot improve production efficiency?
Project Example: products require 8 umbers of M3 screws
Screw Robot: LS-300YY-D
Object Located | Sate Screw Tightening | Collect the Finished Object | Next Station |
2s | 8 x 1.5s | 2s | |
During these procedures, workder can operate other object placing |
- Stepper motor drive and the advanced motion control algorithm
- Smart detection of missing or unfilled screws, the machine will give an alarm.
- High precision of screw fastening.
- Improves the production efficiency and reduces the labor cost.
- Suitable for most of the screws, especially the stainless steel screws.
- Simple peration
- Adjustable rail of the screw feeder
Model | Industrial robotic manufacturing screw fastening robot |
Package | 1 set/ctn |
Delivery | 5-7 days |
Payment | Bank, Westerun Union, Paypal |
Port | Shenzhen |
Shipment | A.By Courier: 4-7 Working days by special offer |
B.By Air: 7 Working days at appointed airport | |
C.By Sea: 20-25 Working days at appointed port |
1.We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for Electronic Assembly Industry.
2. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.
3. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time is just 3 days.
4. We can also customize the products to fulfill different requirements.
5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.
6.Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your reliable partner and will return to you with good products and good support.
7.Professional: We have been in this business for more than 10 years. We have a strong professional team with various experiences.
8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
9. Price: we always offer competitive prices and help our customers to cost down.
10. Quality: we do 100% inspection before the shipment.
11. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due to our mistakes.
♦ FAQ
Q1: What is your product line?
