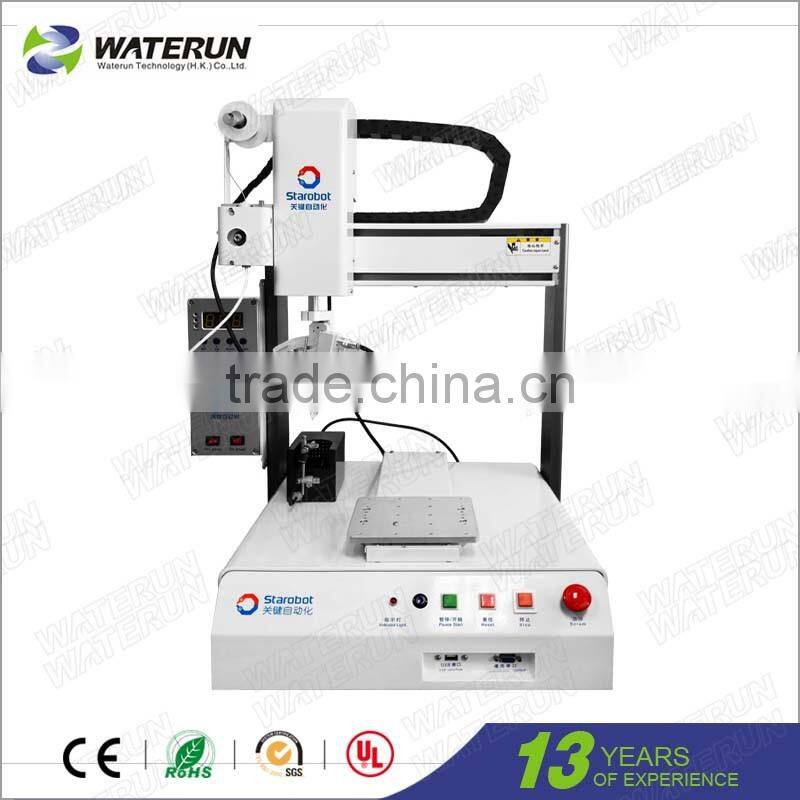

4 axis soldering robot for contact soldering of PCB boards
- 100 Set / Sets per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Starobot | Model Number: | HX-300 |
Condition: | New | After-sales Service Provided: | No overseas service provided |
Product Description

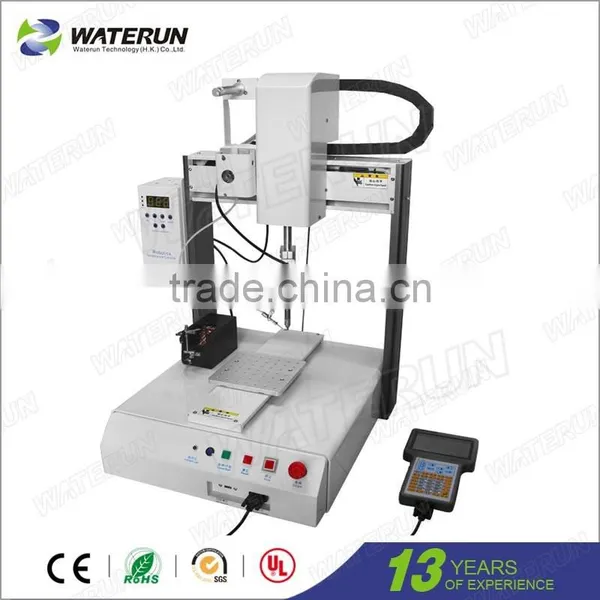

Automated Desktop Robotic Soldering Equipment
Type | 4 axis soldering robot for contact soldering of PCB boards |
Model | HX-300 |
Voltage | 110V/220V AC |
Drive Mode | 4 axis precision step motor |
Operating Range | 300mm x 300mm x 80mm (X*Y*Z) |
X / Y Axis Movement Speed | 0.1-600mm/sec |
Z Axis Movement Speed | 0.1-400mm/sec |
Repeatability Accuracy | +-0.02mm (X*Y*Z) |
Maximum Portable Load | 8kg (workpiece) |
Program Capacity | 0~255 programs |
Operate Temperature | 0°C~40 °C |
Operate Humidity | 20~90% |
Dimensions | 550 x 650 x 830mm |
Weight | about 55kg |
Accessories | Heating Controller, solder feeding assembly, air cleaning box, soldering head |
Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.
- High power heating controller ensures the tip temperature to reach 350°C within 30 seconds;
- With the sleeve design, the soldering tip can be replaced quickly and easily.
- Intelligent solder feeding mode, parameters can be set freely.
- Automatic tip cleaning function by airflow cleaning, the residual dross on the tip can be blown off easily.
Model | 4 axis soldering robot for contact soldering of PCB boards |
Package | 1 set/ctn |
Delivery | 7-10 days |
Payment | Bank, Westerun Union, Paypal |
Port | Shenzhen |
Shipment | A.By Courier: 4-7 Working days by special offer |
B.By Air: 7 Working days at appointed airport | |
C.By Sea: 20-25 Working days at appointed port |
1.We are a leading manufacturer of automated soldering machines.
2. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.
3. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time is just 3 days.
4. We can also customize the products to fulfill different requirements.
5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.
6.Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your reliable partner and will return to you with good products and good support.
7.Professional: We have been in this business for more than 10 years. We have a strong professional team with various experiences.
8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
9. Price: we always offer competitive prices and help our customers to cost down.
10. Quality: we do 100% inspection before the shipment.
11. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due to our mistakes.
