Help CenterYuanda Professional Luxury Hotel Passenger Elevator
Related Products
Specifications
Yuanda professional luxury hotel passenger elevator1.Capacity:320kg-1600kg
2.Speed:2m/s
3.safety,reliability,high efficiency

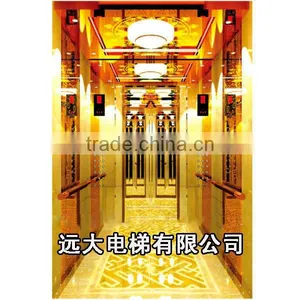

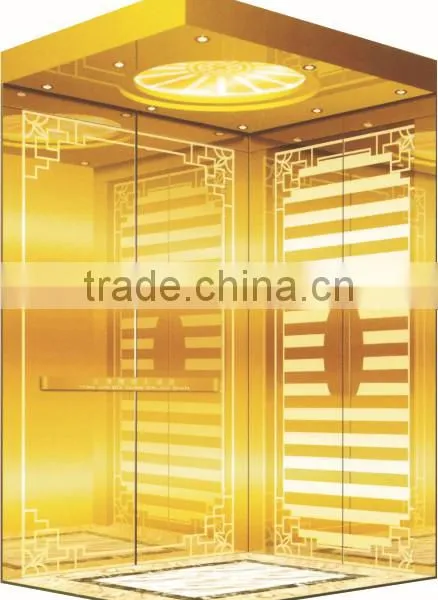

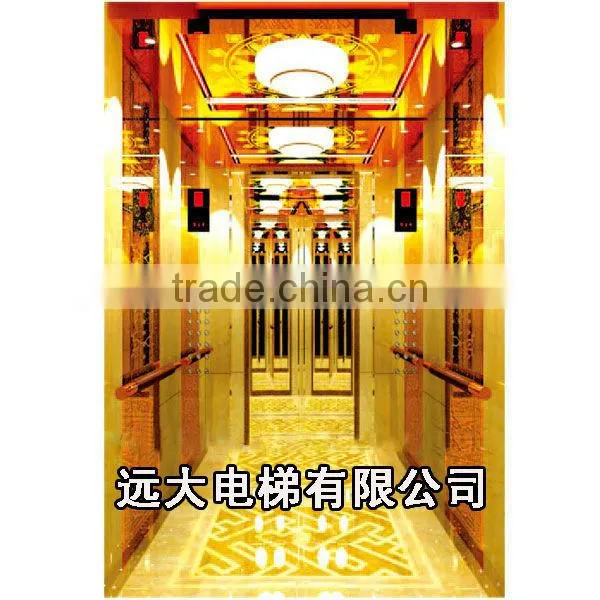

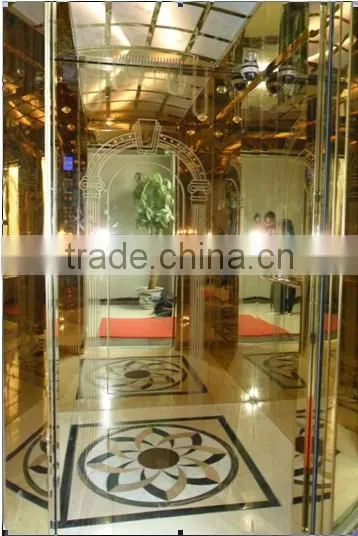

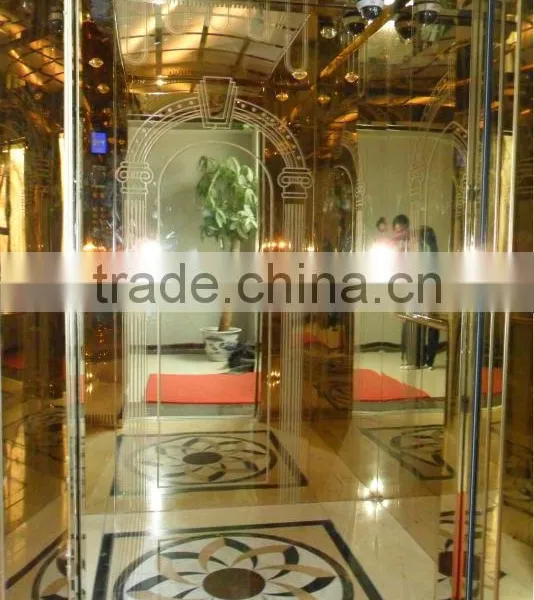

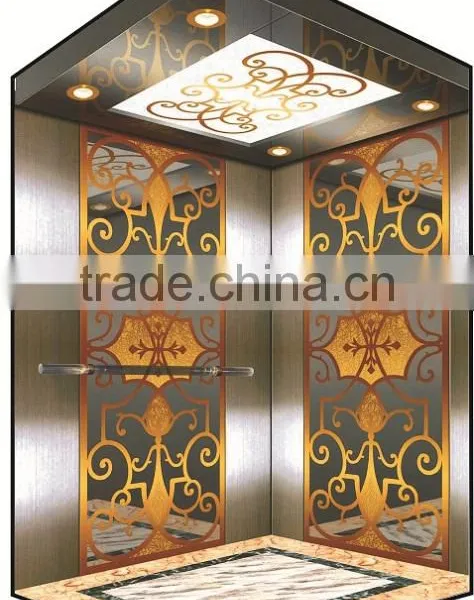

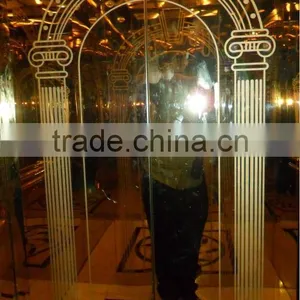

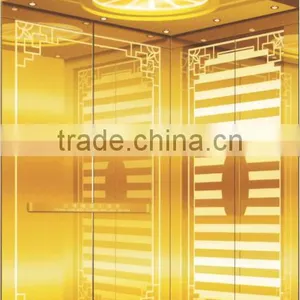

I. DESIGN
Model: YD-H07T

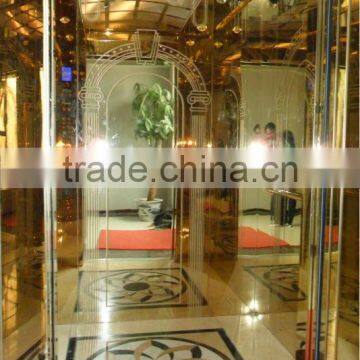

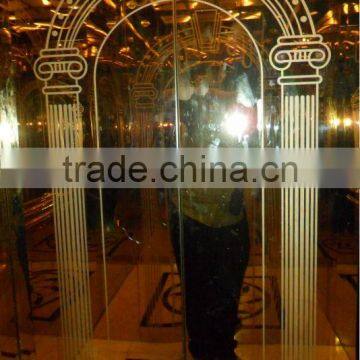

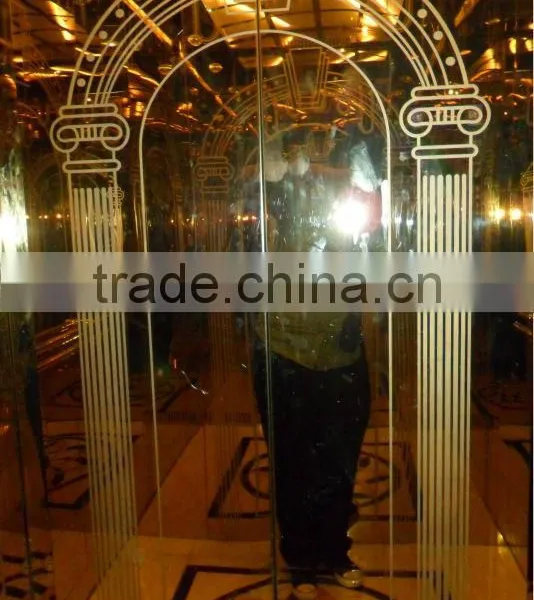

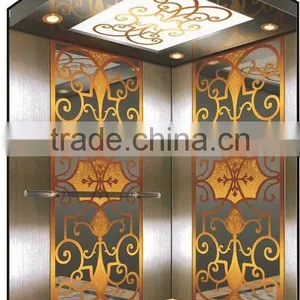

Car side & rear wall: Golden mirror etching stainless steel
Fall ceiling: Moonlight ceiling
Handrail: Round sanding solid wood
Flooring: PVC/Marble/Natural Marble
II. Standard Functions
1 |
Auto-full collective control |
2 |
Driver operating |
3 |
inspection operating |
4 |
Auto reversal floor indication |
5 |
Floor running indication |
6 |
Reversal car call clear |
7 |
False call cancel |
8 |
Five party-communication system |
9 |
Door open and close button |
10 |
Door-closed outside door zone |
11 |
Door open of floor |
12 |
Door re-opening, shift floor opening |
13 |
Starting compensation |
14 |
Indication of times of travel |
15 |
Auto-inspect and history record of trouble |
16 |
Automatic turn-off lighting and fan |
17 |
Full load bypass |
18 |
Overload door open stop operating protection |
19 |
auto-correction of floor position signal |
20 |
Self learning of Shaft |
21 |
Base floor lock elevator |
22 |
Auto landing |
23 |
No service floor control |
24 |
Special service |
|
Car cage Arrival gong |
26 |
Emergency lighting |
27 |
Serial communication management |
28 |
fire alarm |
29 |
Curtain of light safety protection |
30 |
Anti-jam door opening protection |
31 |
Automatic detection of break contacting point |
32 |
Brake protection |
33 |
Frequency converter protection |
34 |
Reversal running protection |
35 |
Slow speed self rescue protection |
36 |
Over speed protection |
37 |
Low-voltage protection |
38 |
phase protection |
39 |
Final limit switch protection |
40 |
Time controlling |
41 |
Fire Emergency |
|
|

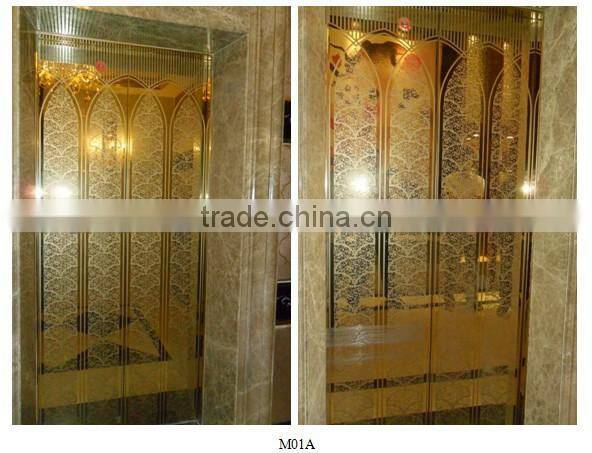

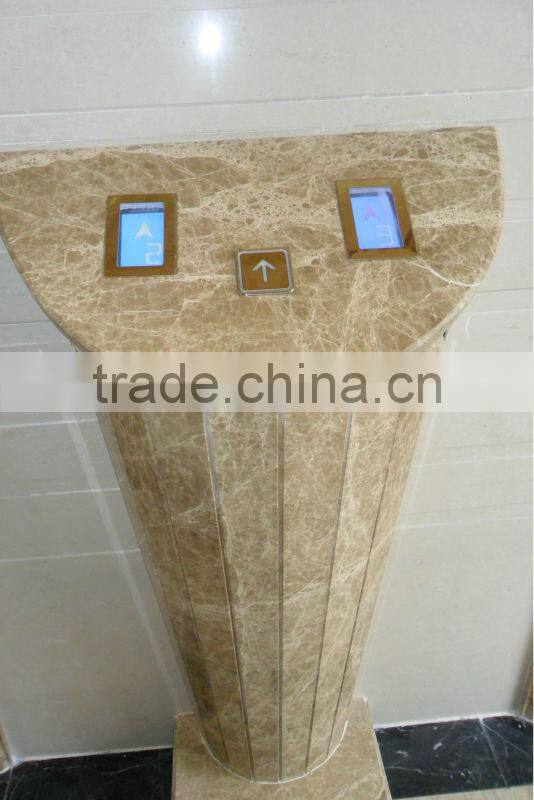

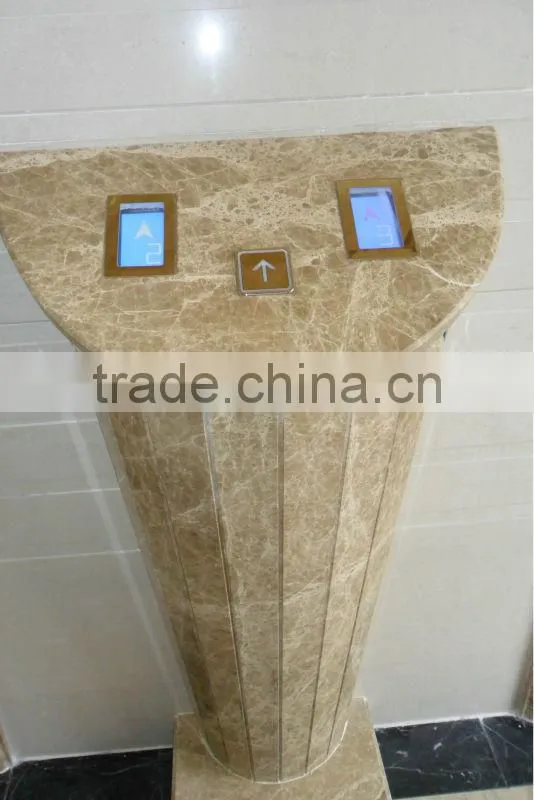

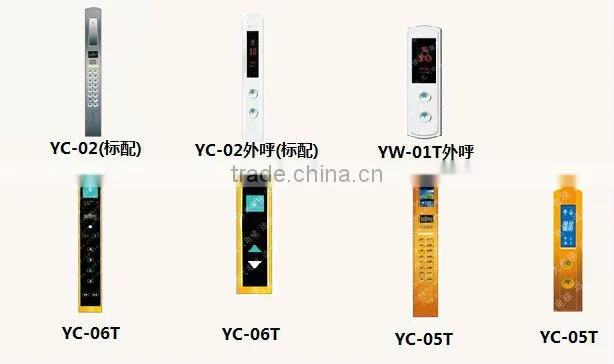

III. Customized Landing Door COP and HOP
IV. Specification
MRL Passenger Elevator Technical specifications
| Model | Loading Capacity | Numbers of passengers | Traveling speed (m/s) | Cabin inside dimension | Entrance opening dimension | Shaft dimension | Pit depth | Overhead height |
| TKWJ450 | 450kg | 6 | 1.0/1.5 | 1400X900 | 800X2100 | 1700X1700 | 1.6/1.9 | 4.3/4.5 |
| TKWJ630 | 630kg | 8 | 1.0/1.5 /1.75/2.0 | 1400X1200 | 800X2100 | 1800X1800 | 1.6/1.8/1.9 | 4.3/4.5/4.6 |
| TKWJ800 | 800kg | 10 | 1.0/1.5 /1.75/2.0 | 1400X1400 | 800X2100 | 1900X1900 | 1.6/1.8/1.9/2.0 | 4.3/4.5/4.6/4.8 |
| TKWJ1000 | 1000kg | 13 | 1.0/1.5 /1.75/2.0 | 1600X1500 | 900X2100 | 2000X2000 | 1.6/1.8/1.9/2.0 | 4.3/4.5/4.6/4.8 |
| TKWJ1250 | 1250kg | 16 | 1.0/1.5 /1.75/2.0 | 2000X1400 | 1000X2100 | 2200X2200 | 1.6/1.8/1.9/2.0 | 4.3/4.5/4.6/4.8 |
| TKWJ1350 | 1350kg | 18 | 1.0/1.5 /1.75/2.0 | 2000X1500 | 1100X2100 | 2300X2300 | 1.6/1.8/1.9/2.0 | 4.3/4.5/4.6/4.8 |
| TKWJ1600 | 1600kg | 21 | 1.0/1.5 /1.75/2.0 | 2000X1700 | 1200X2100 | 2600X2600 | 1.6/1.8/1.9/2.0 | 4.3/4.5/4.6/4.8 |
