450kg MRL Villa Elevator – Machine Roomless Passenger Lift
Looking for a reliable MRL elevator supplier in China for a villa or residential project?
Our 450kg Machine Roomless (MRL) Villa Elevator is a compact complete elevator solution designed for private villas, residential buildings and low-rise projects. The machine-roomless design eliminates the need for a traditional machine room and helps optimize available building space.
The elevator is equipped with a PM gearless synchronous traction machine and a FUJI-based electrical and operation configuration. Selected key components are sourced from established international brands, providing a practical solution for overseas elevator projects.
Key Product Features
Machine Roomless Design
The MRL configuration does not require a conventional machine room, making it suitable for villa and residential projects where building space is limited.
PM Gearless Traction Machine
The elevator uses a permanent magnet (PM) gearless synchronous traction machine. The traction ratio is 2:1 and the standard rated speed is 0.4 m/s.

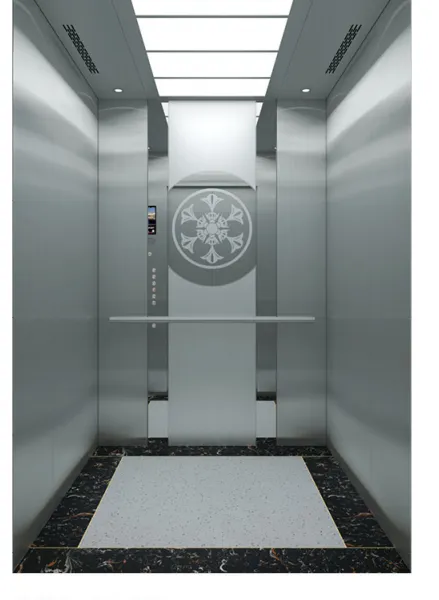

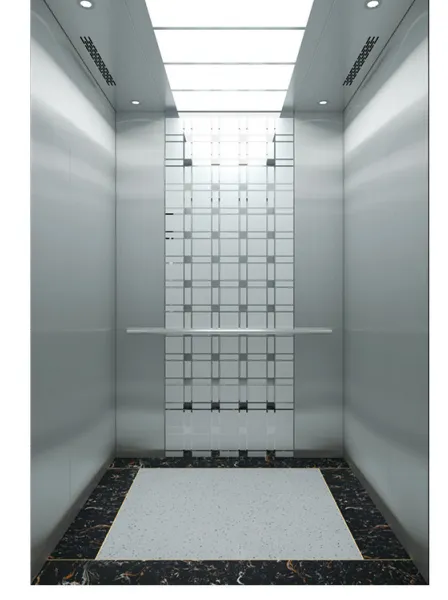

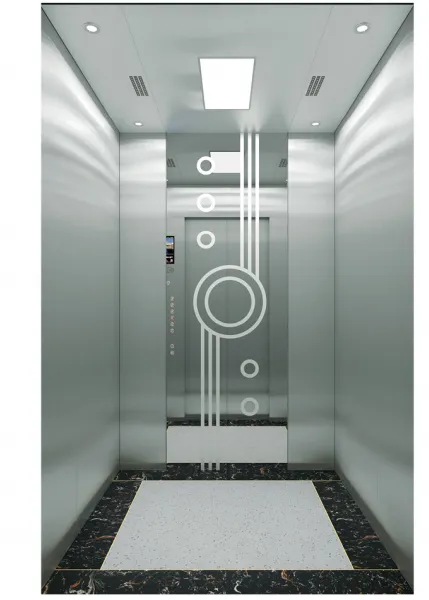

Stainless Steel Cabin
The standard cabin uses SUS304 hairline stainless steel for the front and side walls. The rear wall combines hairline stainless steel with SUS304 mirror stainless steel.
The ceiling is finished with hairline stainless steel, acrylic board and LED energy-saving lighting.
Complete Elevator Package
The elevator package includes the main mechanical and electrical systems, cabin, landing doors, door operator, safety system, guide rails, wire ropes, travelling cable and related shaft components.
Technical Specifications
| Item | Specification |
|---|---|
| Elevator Type | Machine Roomless (MRL) Villa Elevator |
| Application | Villa / Residential |
| Rated Load | 450 kg |
| Rated Speed | 0.4 m/s |
| Floors / Stops / Doors | 5 / 5 / 5 |
| Traction Ratio | 2:1 |
| Motor Type | PM Gearless Synchronous Machine |
| Control Type | Simplex |
| Control System | Monarch / Step System |
| Power Supply | 380V / 3 Phase / 50Hz |
| Lighting Power | 220V / 1 Phase / 50Hz |
| Machine Room Height | 0 mm |
| Shaft Size | 1800 × 1800 mm |
| Pit Depth | 1346 mm |
| Overhead Height | 2600 mm |
| Cabin Size | 1200 × 1400 × 2200 mm |
| Door Type | Center Opening |
| Door Opening | 800 × 2100 mm |
| Cabin Entrance | 1 |
| Cabin Model | NB-V107 |
| Cabin Wall | SUS304 Hairline Stainless Steel |
| Cabin Rear Wall | SUS304 Hairline + Mirror Stainless Steel |
| Cabin Door | SUS304 Hairline Stainless Steel |
| Landing Door | SUS304 Hairline Stainless Steel |
| Language | English |
| Warranty | 60 Months |
Main Component Configuration
The complete elevator system can be supplied with the following component configuration:
Controller: FUJI
Contactor: Schneider
Switch Power Supply: Omron
Relay: Omron
Inverter: Monarch
Traction Machine: Torin / Xizi / Faxi / Montanari / Monadrive
Encoder: Heidenhain
Machine Bearing: NSK
Door Operator: Shenling
Door Controller: Panasonic
Safety Gear: Aodepu
Speed Governor: Aodepu
Buffer: Aodepu
Wire Rope: Safety
Rope Sheave: Leader
Sheave Bearing: Timken
Main Guide Rail: Marazzi, Italy
Auxiliary Guide Rail: Marazzi, Italy
Infrared Safety Light Curtain: WECO
Travelling Cable: BST / Xiangtong
The final component brands and configuration can be confirmed according to the project specification and contract.
Safety Functions
The MRL villa elevator includes multiple safety and control functions, including:
Overload protection
Overspeed protection
Door lock protection
Infrared light curtain protection
Phase protection
Contactor protection
Motor temperature protection
Emergency lighting
Alarm bell
Interphone communication
Emergency return in case of fire
Terminal over-running protection
Brake switch protection
Automatic leveling correction
Hoistway self-learning
Error recording
Full-load bypass
Automatic door opening and reclosing
Automatic return to home landing
Direct landing
Load weighing function
Fire running function
CAN communication protection
An ARD (Automatic Rescue Device) can also be included according to the project configuration.
Applications
This machine roomless elevator is suitable for:
Private villas
Luxury villas
Residential buildings
Townhouses
Low-rise residential projects
Private residences
Small commercial buildings
Residential development projects
Why Choose Our MRL Elevator?
Complete Elevator Supply
We can supply the complete elevator system rather than individual components, helping customers simplify project procurement.
Machine Roomless Solution
The MRL design helps save building space and provides greater flexibility for villa and residential projects.
International Component Configuration
The elevator uses components from established manufacturers including FUJI, Schneider, Omron, Siemens, Heidenhain, NSK, Panasonic and Marazzi.
Long Warranty
The quoted configuration provides a 60-month warranty after shipment, according to the agreed contract terms.
Export-Oriented Technical Support
Construction layout drawings, installation manuals, operation manuals, maintenance manuals, testing certificates and packing documents can be provided with the elevator.
Project Experience
Our elevator products have been supplied for airport, subway, railway station, CBD, hotel, shopping mall and other commercial projects.
Reference projects include Shanghai World Expo, NTU Learning Hub in Singapore, Transmart Solo in Indonesia, Dasman Markhiya Mall in Doha, Jumeria Lake Tower in Dubai and other international projects.
Packaging & Delivery
The elevator components are packed in export-standard plywood wooden boxes.
After the specifications, drawings and contract are confirmed and the down payment is received, the standard production lead time is approximately 40 working days.
