Product Description

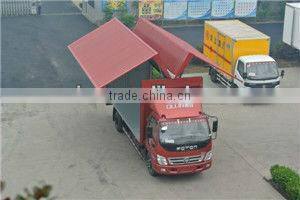

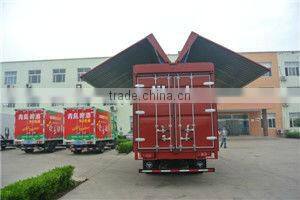

Two Axle Gull-wing Box Van Semi-trailer
1. Name: Two Axle Gull-wing Box Van Semi-trailer
2. Model: LR9240XXY
3. Outer size: 13000*2550*4000 mm
4. Inner size: 12600*2420*2500(about )mm
5. Inner cubic; About76 stere
6. Weight
(1) Curb weight: About 9000Kg
(2) Loading capacity: 25000Kg
(3) Total weight: 34000Kg
7. Frame and body:
Frame: Double main beam(Q345B/ST52-3), cross beam(Q235 channel beam), High strenghth;
Body:
Front guard board: 2mm steel plate;
Back door: Double wing door, container back door lock, 2mm thick steel plate
Top: The outer are made of colorful steel plate or aluminium alloy plate, light on the top;

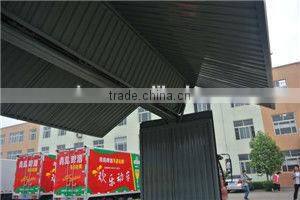

Complete side wall: Outer board are made of aluminium alloy corrugated plate or colorful steel plate, side wall can wing up completely; Under guard board: 4 units each side;
Floor: 3mm patterned plate, 5 floor rings along each side;
Electric control and hydraulic system: High-quality by the JV
8. Running system
1). Axle: 13Ton*2
2). Suspension: Two axle, leaf spring 8*16*90mm
3). Rim: 7.5-20
4). Tyre: 10.00R20*9(one as spare tyre)
9. Kingpin: 2``(welded)
10. Landing gear: Double-speed linkage
11. Brake system: Double air line, WABCO braking valve, 30/30' air chamber on
The last axle, energy storage parking brake.
12. Electric System: Chinese standard 24V, 7-Pin socket
13. Others
(1) 2 units of winch type spare tyre holder
(2) Tool box: 1unit
(3) One set of driver's tool: One tire spanner, one gudgeon bushing, one cranking bar
(4) Steel side guard
(5) Mud guard
14. Surface
1 Sand blast before coating
(2)Zinc-rich premier & top coating (color as client's requirement)
Main properties;
·Light in weight: 30-40% lighter than domestic traditional products.
·Thermal insulation properties: The coefficient of heat conductivity of fiberglass reinforced plastics face panel is about 0.20W/M2.K, the coefficient of heat conductivity of hard polyurethane foam is 0.018-0.028W/M2.K, and the K #118alue of overall coefficient of heat transference can be below 0.30W/M2.K.
·Surface properties: Surface of fiberglass reinforced plastics panel possesses very high tensile strength, bending strength and impact ductility. It also possesses excellent chemical stability against rainwater, acid and alkali with low PH #118alue. Therefore, its surface is very smooth, unfading, anti-ultraviolet radiation and easy clearance. Particularly, it is suitable to be used for various carriage advertisements.
·Impermeability properties: Both sides of FRP panel possess excellent water impermeability and water resistance.
·Fire retardant performance: It conforms to the national standard B1 level.
·Service life: 4-6 times longer than domestic traditional products.
·Easy maintainability: There is no trace on the panel after repair, which is more competitive than steel and aluminum panels.
·Environmental protection properties: There is no volatile and corrodible substance on surface of fiberglass reinforced plastics. The panels are sandwiched with polyester foam plastic without fluorine. It is green environmental protection product
