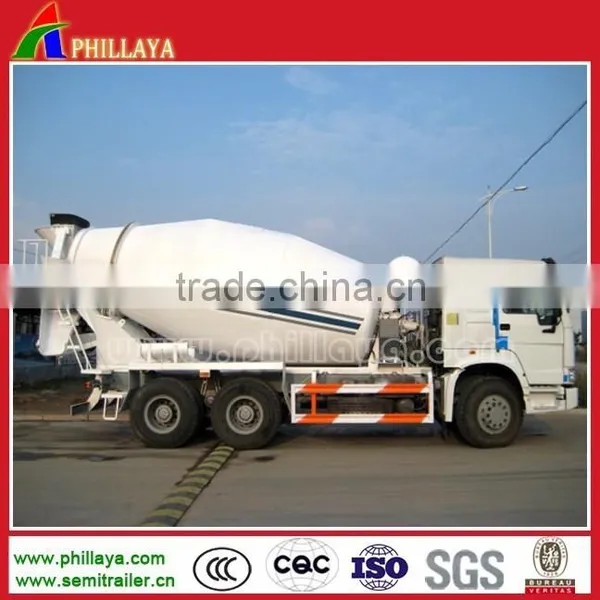

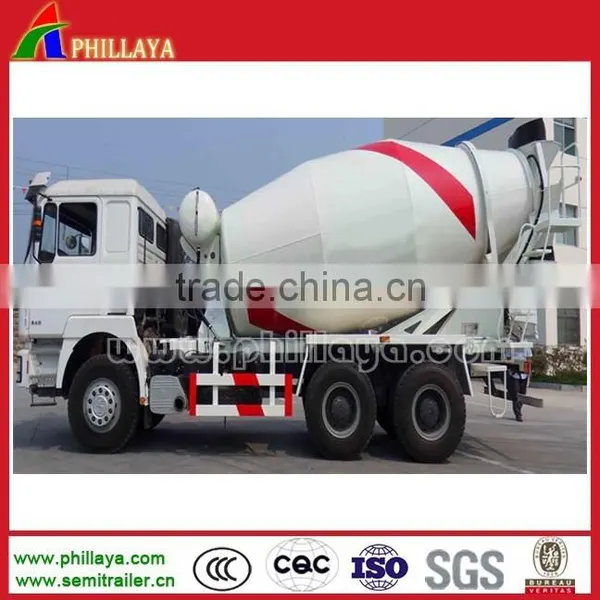

Double Axle Concrete Mixer Truck, Engine and Volume Optional

Name: Double Axle Concrete Mixer Truck, Engine and Volume Optional
Brand: phillaya
SKU: 141206732
Availability: InStock

US$ 15,000 - 60,000 MOQ: 1 Unit

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, ISO CCC

Qingdao Phillaya International Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao/shanghai/tianjing

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification Other, ISO CCC

Size 9995*2495*3780mm

OEM No. 37022014031701

Max Payload 8 CBM

Place of Origin Shandong, China

Brand Name phillaya

Model Number PHY0759THXZ

Company Information

Product Description

Name	8 Cubic Meters Concrete Mixer Truck
Chassia Model	ZZ1256N3846C/N1FA36( Steyr King Brand)
Dimension	910024963800
Total Weight	25000KG
Rated loading Capacity	11850KG
Axles No.	3 (HC16)
Wheel Base	3600+1350mm
Tire Specification	12.00-20( 11 pcs)
Engine Model	WD615.95(Sino Truck Brand)
Power	336HP
Emmission standard	China 3
Fuel Material	Diesel
Max.Speed	90 km/h
Feeding Speed	≥3m3/min
Output Speed	≥2m3/min
Speed Reducer	Import from Italy
Water supply system	Water Pressure
Water Box Capacity	300L
8m3 concrete mixer	Italy PV089 pump,MF089motor,6SP Gearbox,China 12L Radiator
9m3 concrete mixer	Italy PV089 pump,MF089motor,TOP P68 Gearbox,China 12L Radiator
10m3 condcrete mixer	Italy PV089 pump,MF089motor,TOP P68 Gearbox,China 12L Radiator
11-12m3 concrete mixer	Italy PV089 pump,MF089motor,TOP P75 Gearbox,China 12L Radiator
Mixer body material	5mm or 6mm steel plate
Tractor truck model	64 or 84
