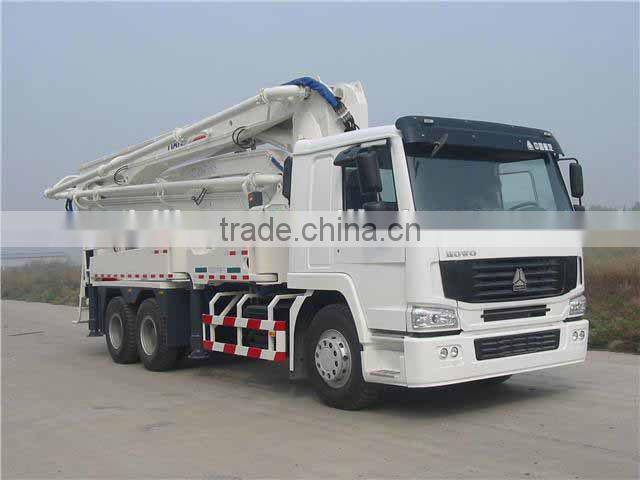

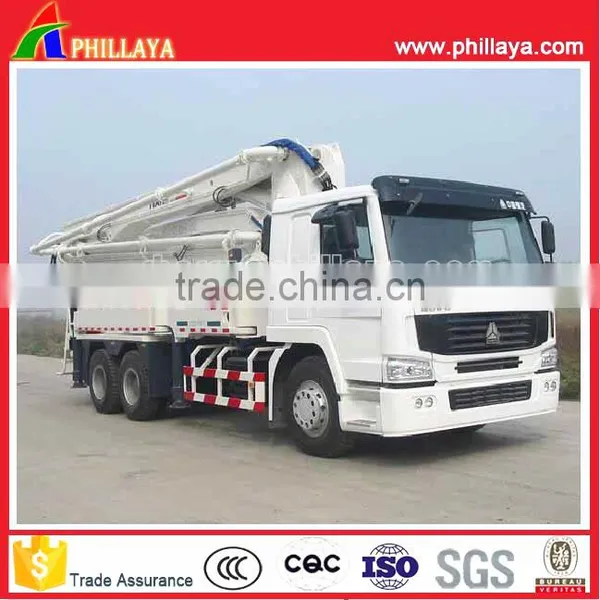

Tag: Phillaya truck trailer supplier official manufacturer 37m concrete pump truck
| ITEM | MODEL | ||||
| 28m Truck Boom Pump | |||||
| Tuck Chassis | Emission standard | Euro IV | |||
| Engine power | 180-340HP | ||||
| Revolution | 2000rpm | ||||
| Wheelbase | 4700-5200mm | ||||
| Max. driving speed | 80km/h | ||||
| Approach/Far away angle | 24.6 ° /15.6 ° |
||||
| Tire | 9.00R20 | ||||
| Boom system | Max. vertical height | 27.3m | |||
| (Jib structure) | Horizontal placing radius | 23.8m | |||
| Placing depth | 16.8m | ||||
| 1st Arm | length | 7000mm | |||
| Articulation | 90 ° | ||||
| 2nd Arm | length | 5700mm | |||
| Articulation | 180 ° | ||||
| 3rd Arm | length | 5700mm | |||
| Articulation | 360 ° | ||||
| 4th Arm | length | 5400mm | |||
| Articulation | 540 ° | ||||
| Arms control mode | Load sensing proportional control | ||||
| Arm foldable mode | M Shape | ||||
| Slewing range | 370 ° | ||||
| Front supporting legs horizontal span | 5840mm | ||||
| Back supporting legs horizontal span | 4050mm | ||||
| Vertical distance between front & back supporting legs | 6300mm | ||||
| Supporting legs opening mode | X-H | ||||
| Length of end hose | 5 °m | ||||
| Inner diameter of concrete delivery pipeline | 125mm | ||||
| Electric system | Control Power | 24V | |||
| Control module | PWM | ||||
| Working voltage | 24V | ||||
| Control mode | Manual / Radio Remote control | ||||
| Hydraulic system | Hydraulic system | Open circuit | |||
| System working pressure | 31.5Mpa | ||||
| Main oil pump output | 140, 180, 190ml/min | ||||
| Hydraulic oil tank capacity | 450L | ||||
| Hydraulic oil cooling mode | Fan cooling | ||||
| Washing system | Water cleaning by air pressure or plunger pump / Dry Cleaning | ||||
| Pumping system | Concrete distributing mode | S pipe valve | |||
| Pumping frequency | High pressure | 16 times/min | |||
| Low pressure | 25 times/min | ||||
| Max. outlet pressure | 13Mpa | ||||
| Dimension & Weight | Concrete cylinder inner dia.stroke | 200 1450mm | |||
| Max. feeding height | 1450mm | ||||
| Hopper capacity | 650L | ||||
| Concrete slump | 160-220mm | ||||
| Max. allowed aggregate diameter | 40mm | ||||
| Lubricating mode | Centralized lubrication | ||||
| Optional pumping power supply | Diesel engine (Double Engine) | CUMMINS Engine | |||
| Using truck power by transfer case | STIEBEL from Germany | ||||
| Overall length | 10010- 10150mm | ||||
| Overall width | 2300 - 2500mm | ||||
| Overall height | 3500 - 3650mm | ||||
| Overall weight | 17800-189000KGS | ||||
MAIN PARTS
We have below three ways to transport your products,depending the dimension of trailer.We will be your side to help you choosing the best way to save your cost!!
1. By 40' or 40HQ container
- few sets could be loaded into one 40' saving cost.
2. By BULK SHIP or RORO SHIP
- we have long-term cooperated freight forwarder,you are highly guaranteed the safety and best price.

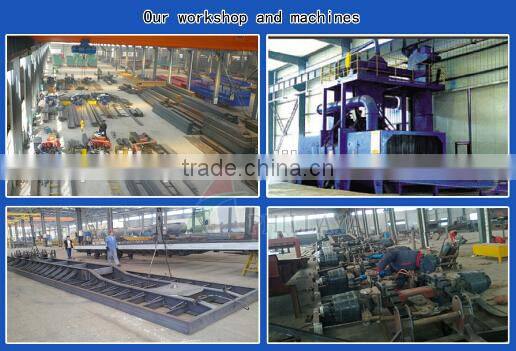

Phillaya international trading Co., Ltd, a special vehicle manufacturing corporation with the professional experience more than 15 years, certified by the Chinese government manufacture,
Majored in semi trailer, special vehicle manufacture, our products are mainly exported to Philippine, Bangladesh, Thailand, Myanmar, Vietnam, Nigeria, Russia, Mongolia, Congo, Kenya, Tanzania, etc...More than 20 countries.
Warmly welcome wide customers abroad to visit us for cooperation and development together.
