3 axle van truck trailer
1) specification for 3 axle van truck trailer
Type |
| Box semi trailer Loading for bulk goods |
Shipping Terms | Shipping by bulk cargo ship, three pieces put together . | |
Delivery time | 20 workdays for three unit semi trailer | |
Weight: | Loading Capacity | 50tons |
| Tare Weight | About 10T |
Axle Weight Load | 16T per | |
Specification: |
| |
Axle number | Two , HUAJING brand | |
Suspension | America type Mechanical Suspension | |
Wheel | 12.00R20 triangle brand tire | |
King Pin | 2.00inch traction pin(Bolt connecting type)/.Jost brand | |
Dimensions (Inner box) | 13000 x 2500 x 2500mm | |
Support legs | CTAC special two double speed legs | |
Rim | 8.25-20 , | |
Steel Spring | 90mm*13mm*10pieces | |
Tire: |
|
|
Number of Tire | 8 pieces | |
Spare Tire Carriers | 2 pieces (not tires) | |
Frame: (specs. and materials) |
| |
Platform plate | 3mm flat Platform | |
The material of Main beam | the height of the beam is 500mm, upper plate is 18mm,down plate is 18mm,middle plate is 8 mm. | |
Side beam | Upper side beam is 16# channel steel, down is 16# channel steel. | |
Cross Beam | Vertical corrugated board, thickness is 3mm | |
Side board | Three folio doors and with lock bars at each side(Thickness 2mm) | |
Back Door | With four pieces lock bars | |
Upper side of box | Without plate | |
Brake: |
|
|
Emergency Brake Valve | WABCO | |
Brake Chamber | Four double chamber(CTAC special for export type ) | |
ABS system | without | |
Electrical: |
|
|
Voltage | 24V | |
| Receptacle | 7 ways(7 wire harness) |
Light color: |
| |
Side marker lamp | Orange | |
Rear lamp | Red | |
Turn signal lamp | Orange | |
Miscellaneous: |
| |
Painting | Blue | |
Marking | According to the requirement of the buyer | |
Side Guard | 2 piece | |
Tools box (without Tarpaulin) | One pieces(L x W x H:1500 x500 x 500mm)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | |

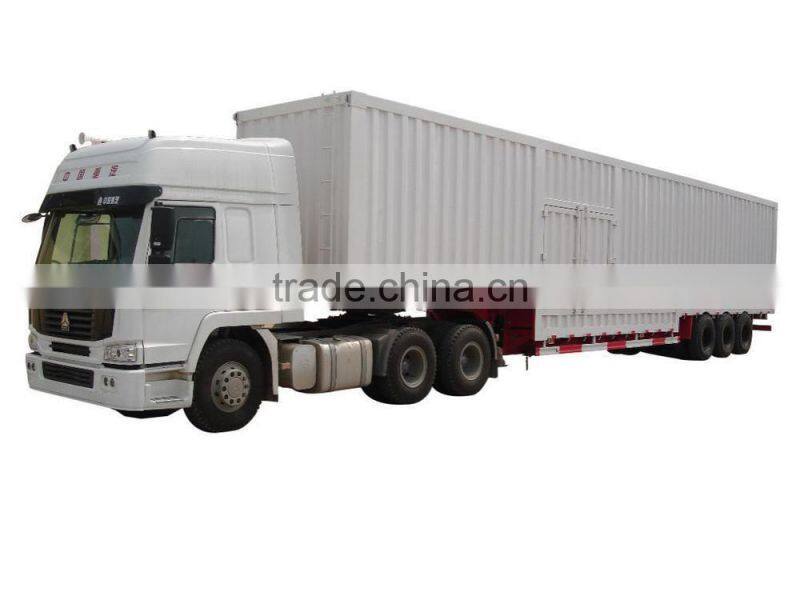

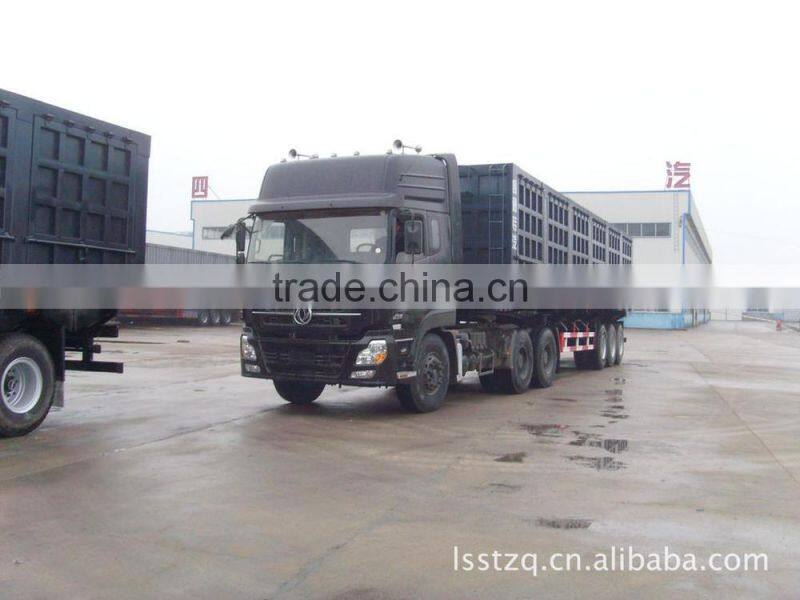

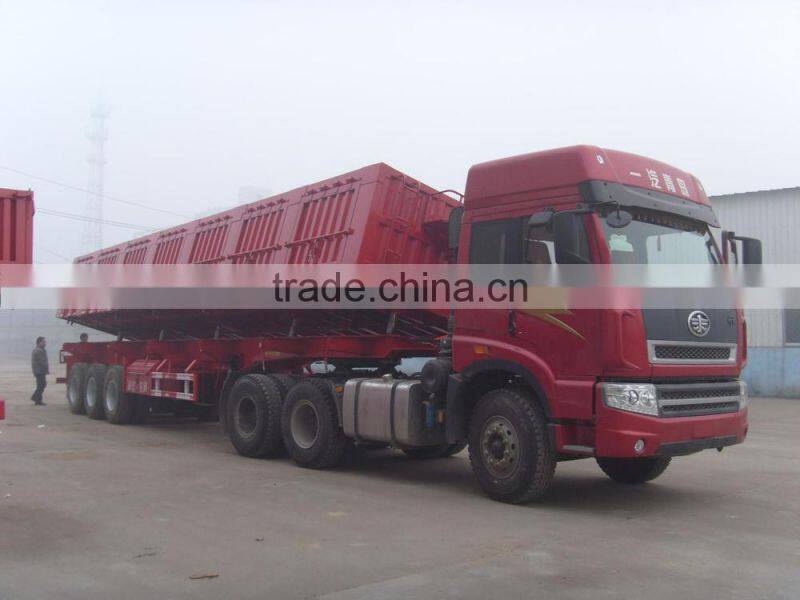

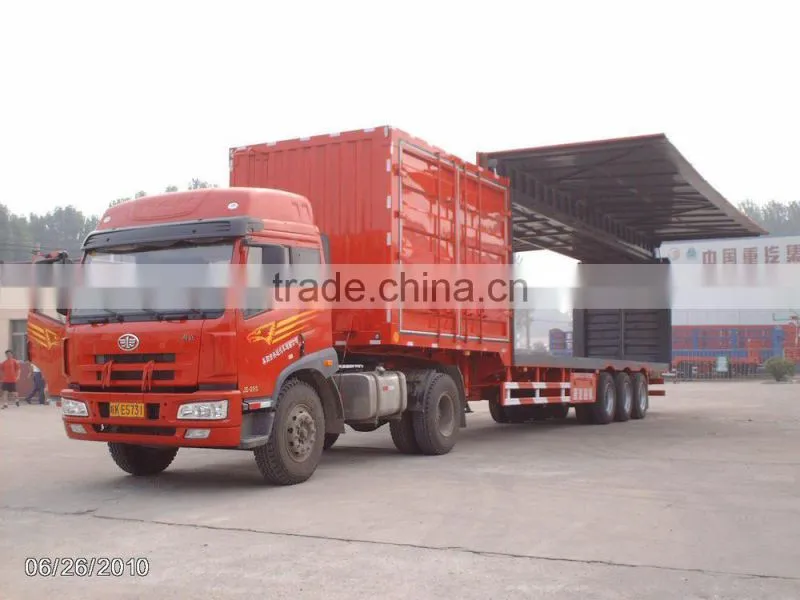

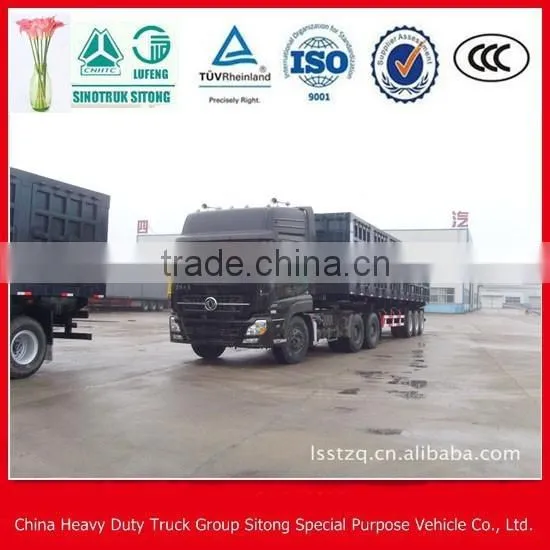

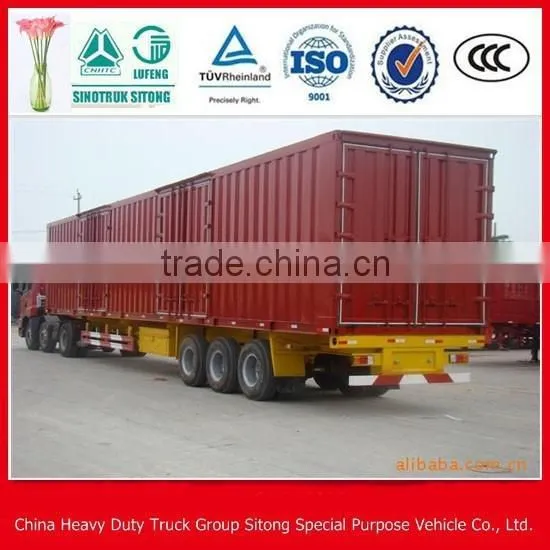

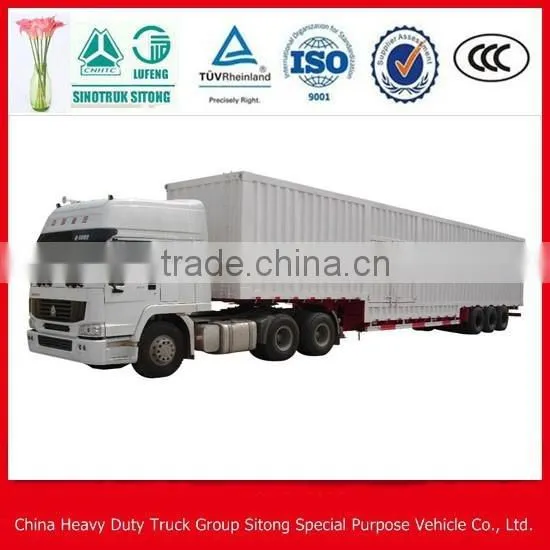

2) photo for 3 axle van truck trailer
main product: semi trailer, flatbed trailer, container trailer, skeleton trailer, low bed trailer, fuel tanker trailer, cement bulker, rear tipping trailer or dumper, stake cargo trailer, side wall semi trailer, car carrier trailer, wood transport trailer, full trailer, HOWO truck
Our sales market view on the map:

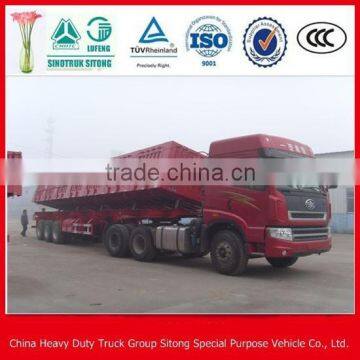

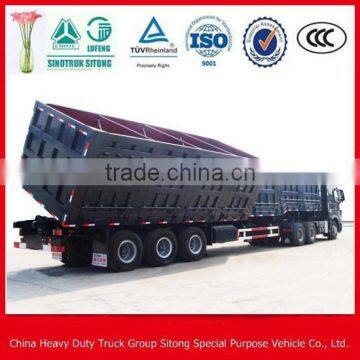

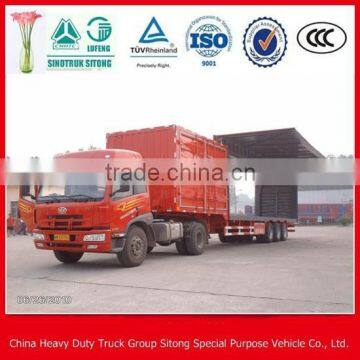

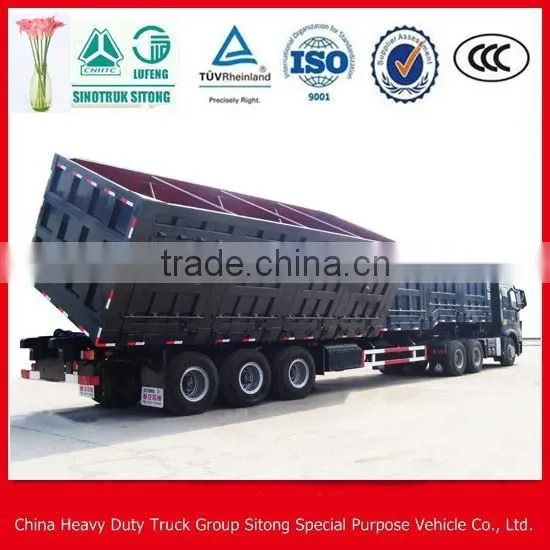

2.1) other semi trailers
3) factory photo for 3 axle van truck trailer
4) certificate for 3 axle van truck trailer
5) customer visit our semi trailer factory
6) other semi trailer link:
1. Fuel/oil tank semi trailer
://lssitong.en.china.cn/product/60209075504-800495715/25_60m3_oil_tank_semi_trailer.html
2. Bulk cement tank semi trailer
http://lssitong.en.china.cn/product/60209863302-800495714/bulk_cement_tank_semi_trailer.html
3. Low bed semi trailer
http://lssitong.en.china.cn/product/60208833133-800477895/low_bed_semi_truck_trailer.html
4. Logging semi trailer
http://lssitong.en.china.cn/product/60215951210-800477894/logging_semi_truck_trailer.html
5. Car transport semi trailer
http://lssitong.en.china.cn/product/60208616195-800495288/60ton_china_car_transport_truck_trailer.html
http://lssitong.en.china.cn/product/60218016038-800495288/car_transport_semi_trailer.html
6. container skeleton semi trailer
http://lssitong.en.china.cn/product/60211067474-800488748/skeleton_semi_trailer_container_chassis.html
7. Container flatbed semi trailer
http://lssitong.en.china.cn/product/60210322196-800488749/shipping_container_flat_bed_truck_trailer.html
http://lssitong.en.china.cn/product/60209871582-800488749/shipping_container_flatbed_semi_trailer.html
8. Tractor full trailer
http://lssitong.en.china.cn/product/60210408753-800512156/farm_tractor_cargo_trailer.html
http://lssitong.en.china.cn/product/60210383186-800512156/farm_tractor_full_trailer.html
9. Side wall semi trailer
http://lssitong.en.china.cn/product/60213172210-800477896/Factory_supplier_2_axle_farm_trailer_tractor_tipper_trailer.html
http://lssitong.en.china.cn/product/60213093808-800512156/25_60ton_drop_side_farm_trailer.html
Contact information for 3 axle van truck trailer
Contact: Polaris Chen
director of international trade department
sitong03 at outlook com
skype: cindy.golden
Tel: 0086 537 2882988
Fax: 0086 537 2882988
Mobile: 0086 15053741628
