china food trailer
1) specification for china food trailer
Type |
| Box semi trailer Loading for bulk goods |
Shipping Terms | Shipping by bulk cargo ship, three pieces put together . | |
Delivery time | 20 workdays for three unit semi trailer | |
Weight: | Loading Capacity | 50tons |
| Tare Weight | About 10T |
Axle Weight Load | 16T per | |
Specification: |
| |
Axle number | Two , HUAJING brand | |
Suspension | America type Mechanical Suspension | |
Wheel | 12.00R20 triangle brand tire | |
King Pin | 2.00inch traction pin(Bolt connecting type)/.Jost brand | |
Dimensions (Inner box) | 13000 x 2500 x 2500mm | |
Support legs | CTAC special two double speed legs | |
Rim | 8.25-20 , | |
Steel Spring | 90mm*13mm*10pieces | |
Tire: |
|
|
Number of Tire | 8 pieces | |
Spare Tire Carriers | 2 pieces (not tires) | |
Frame: (specs. and materials) |
| |
Platform plate | 3mm flat Platform | |
The material of Main beam | the height of the beam is 500mm, upper plate is 18mm,down plate is 18mm,middle plate is 8 mm. | |
Side beam | Upper side beam is 16# channel steel, down is 16# channel steel. | |
Cross Beam | Vertical corrugated board, thickness is 3mm | |
Side board | Three folio doors and with lock bars at each side(Thickness 2mm) | |
Back Door | With four pieces lock bars | |
Upper side of box | Without plate | |
Brake: |
|
|
Emergency Brake Valve | WABCO | |
Brake Chamber | Four double chamber(CTAC special for export type ) | |
ABS system | without | |
Electrical: |
|
|
Voltage | 24V | |
| Receptacle | 7 ways(7 wire harness) |
Light color: |
| |
Side marker lamp | Orange | |
Rear lamp | Red | |
Turn signal lamp | Orange | |
Miscellaneous: |
| |
Painting | Blue | |
Marking | According to the requirement of the buyer | |
Side Guard | 2 piece | |
Tools box (without Tarpaulin) | One pieces(L x W x H:1500 x500 x 500mm)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | |

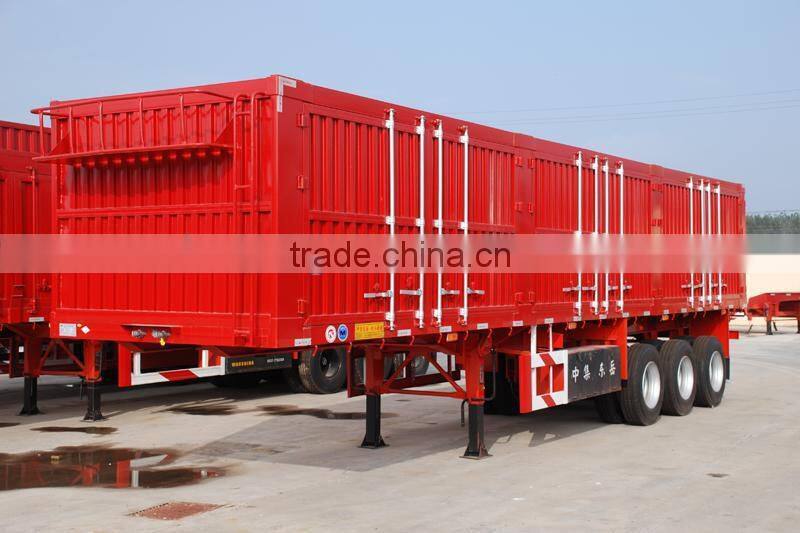

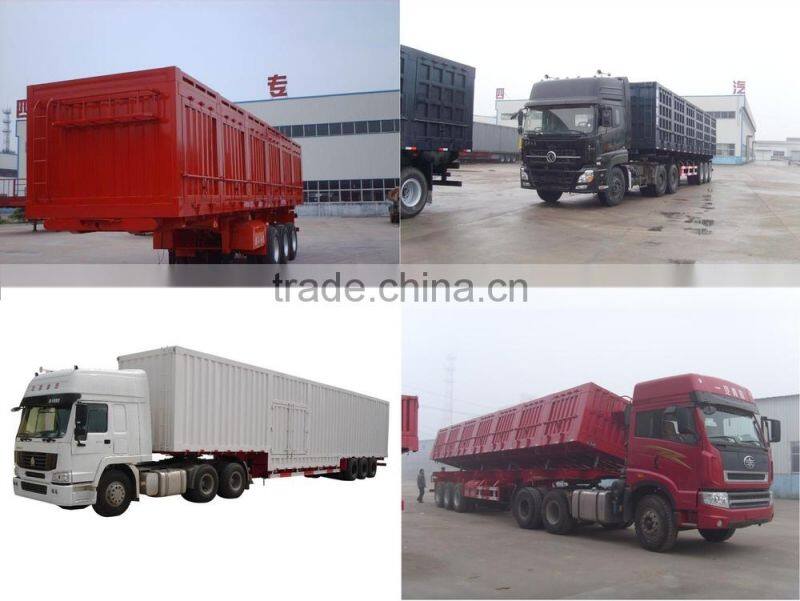

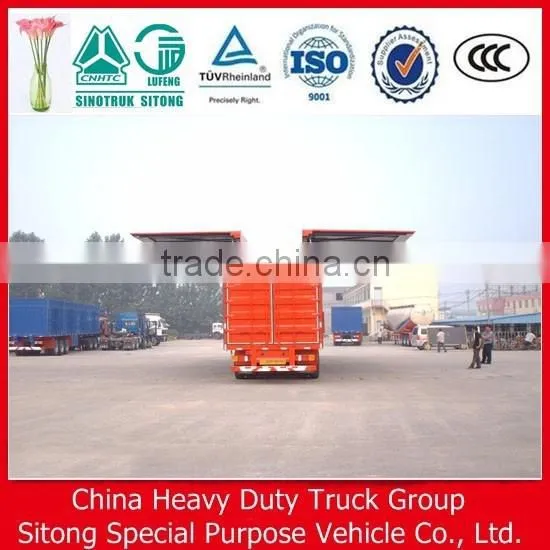

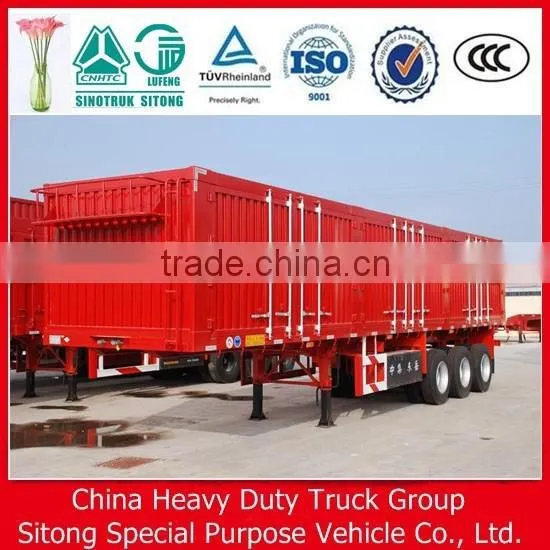

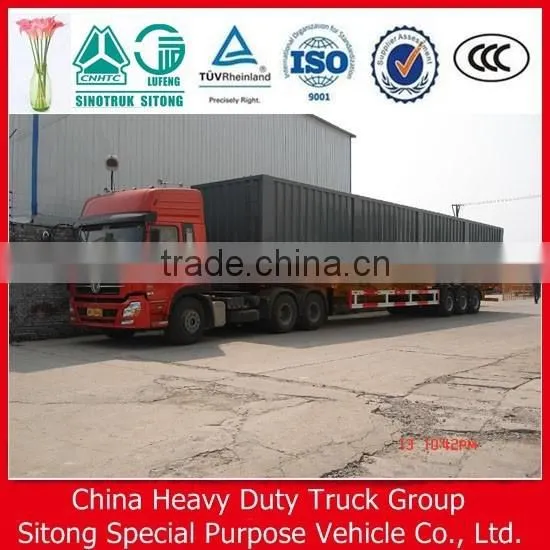

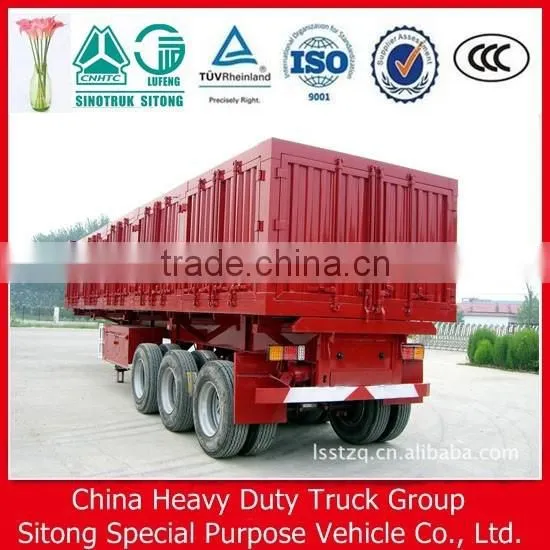

2) photo for china food trailer

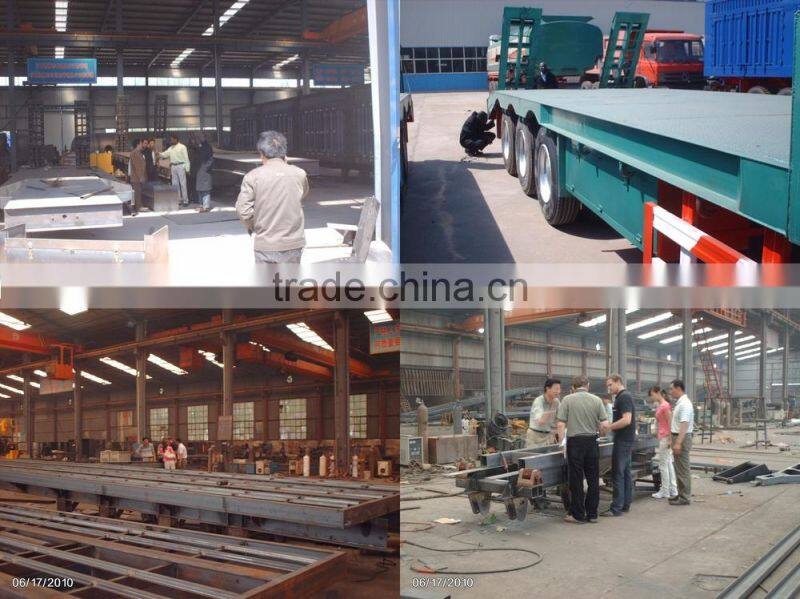

3) factory photo for china food trailer
4) certificate for box trailer van trailer
5) customer visit our semi trailer factory

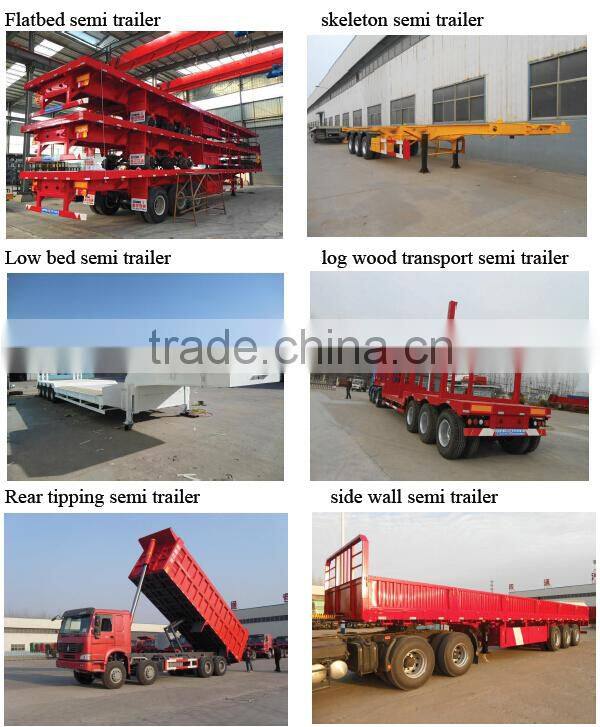

6) other semi trailer link:
Company alibaba website:
http://lssitong.en.china.cn/productgrouplist-800488749/flat_bed_semi_trailer.html
1. Fuel/oil tank semi trailer
http://lssitong.en.china.cn/product/60209075504-800495715/25_60m3_oil_tank_semi_trailer.html
2. Bulk cement tank semi trailer
http://lssitong.en.china.cn/product/60209863302-800495714/bulk_cement_tank_semi_trailer.html
3. Low bed semi trailer
http://lssitong.en.china.cn/product/60208833133-800477895/low_bed_semi_truck_trailer.html
4. Logging semi trailer
http://lssitong.en.china.cn/product/60215951210-800477894/logging_semi_truck_trailer.html
5. Car transport semi trailer
http://lssitong.en.china.cn/product/60208616195-800495288/60ton_china_car_transport_truck_trailer.html
http://lssitong.en.china.cn/product/60218016038-800495288/car_transport_semi_trailer.html
6. container skeleton semi trailer
http://lssitong.en.china.cn/product/60211067474-800488748/skeleton_semi_trailer_container_chassis.html
7. Container flatbed semi trailer
http://lssitong.en.china.cn/product/60210322196-800488749/shipping_container_flat_bed_truck_trailer.html
http://lssitong.en.china.cn/product/60209871582-800488749/shipping_container_flatbed_semi_trailer.html
8. Tractor full trailer
http://lssitong.en.china.cn/product/60210408753-800512156/farm_tractor_cargo_trailer.html
http://lssitong.en.china.cn/product/60210383186-800512156/farm_tractor_full_trailer.html
9. Side wall semi trailer
http://lssitong.en.china.cn/product/60213172210-800477896/Factory_supplier_2_axle_farm_trailer_tractor_tipper_trailer.html
http://lssitong.en.china.cn/product/60213093808-800512156/25_60ton_drop_side_farm_trailer.html
10. box semi trailer
http://www.china.cn/product-detail/hot-sale--3-axle-van_60215324293.html
11. Stake semi trailer
http://lssitong.en.china.cn/product/60212519973-800495288/hot_sale_3_axle_stake_cattle_cargo_trailer.html
12. Rear dump semi trailer
http://lssitong.en.china.cn/product/60220822234-800512155/china_hydraulic_axle_dump_semi_trailer.html
