3 axle bicycle cargo transport semi trailer
1) specification for 3 axle bicycle cargo transport semi trailer
Type |
| Box semi trailer Loading for bulk goods |
Shipping Terms | Shipping by bulk cargo ship, three pieces put together . | |
Delivery time | 20 workdays for three unit semi trailer | |
Weight: | Loading Capacity | 50tons |
| Tare Weight | About 10T |
Axle Weight Load | 16T per | |
Specification: |
| |
Axle number | Two , HUAJING brand | |
Suspension | America type Mechanical Suspension | |
Wheel | 12.00R20 triangle brand tire | |
King Pin | 2.00inch traction pin(Bolt connecting type)/.Jost brand | |
Dimensions (Inner box) | 13000 x 2500 x 2500mm | |
Support legs | CTAC special two double speed legs | |
Rim | 8.25-20 , | |
Steel Spring | 90mm*13mm*10pieces | |
Tire: |
|
|
Number of Tire | 8 pieces | |
Spare Tire Carriers | 2 pieces (not tires) | |
Frame: (specs. and materials) |
| |
Platform plate | 3mm flat Platform | |
The material of Main beam | the height of the beam is 500mm, upper plate is 18mm,down plate is 18mm,middle plate is 8 mm. | |
Side beam | Upper side beam is 16# channel steel, down is 16# channel steel. | |
Cross Beam | Vertical corrugated board, thickness is 3mm | |
Side board | Three folio doors and with lock bars at each side(Thickness 2mm) | |
Back Door | With four pieces lock bars | |
Upper side of box | Without plate | |
Brake: |
|
|
Emergency Brake Valve | WABCO | |
Brake Chamber | Four double chamber(CTAC special for export type ) | |
ABS system | without | |
Electrical: |
|
|
Voltage | 24V | |
| Receptacle | 7 ways(7 wire harness) |
Light color: |
| |
Side marker lamp | Orange | |
Rear lamp | Red | |
Turn signal lamp | Orange | |
Miscellaneous: |
| |
Painting | Blue | |
Marking | According to the requirement of the buyer | |
Side Guard | 2 piece | |
Tools box (without Tarpaulin) | One pieces(L x W x H:1500 x500 x 500mm)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | |

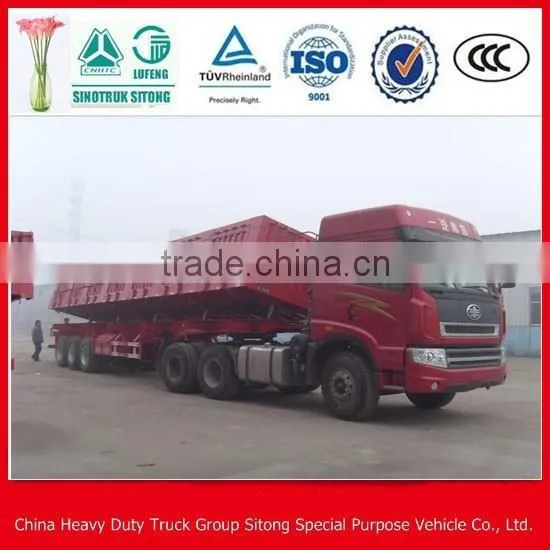

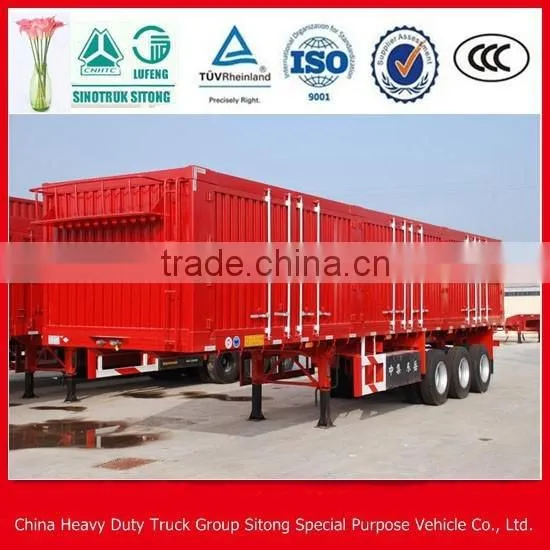

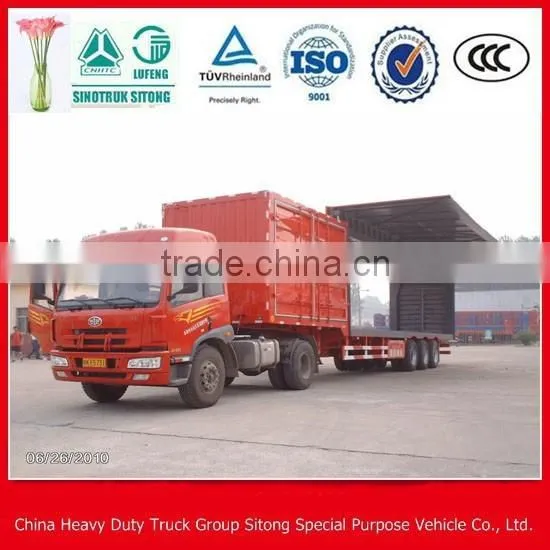

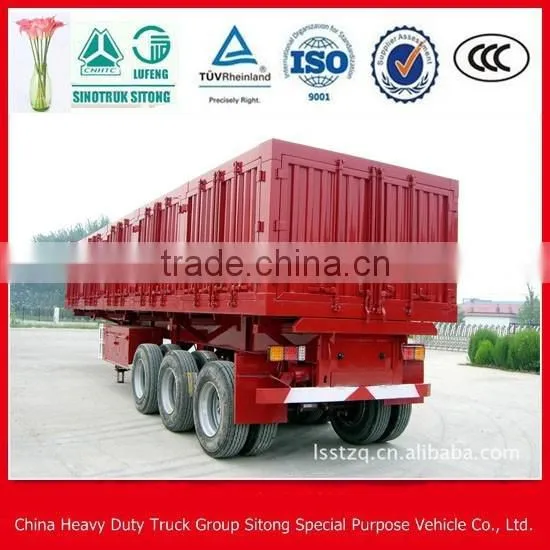

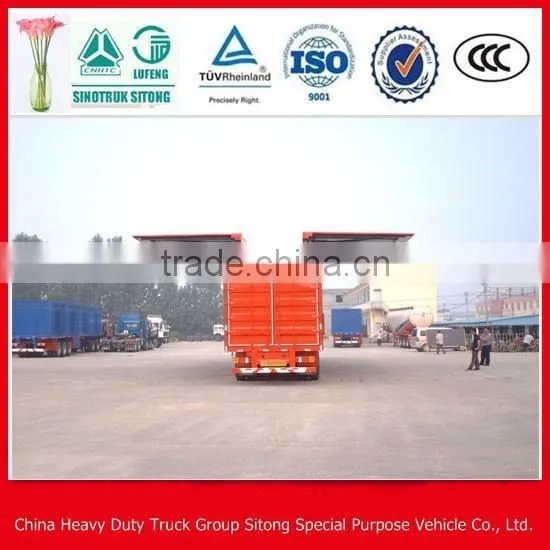

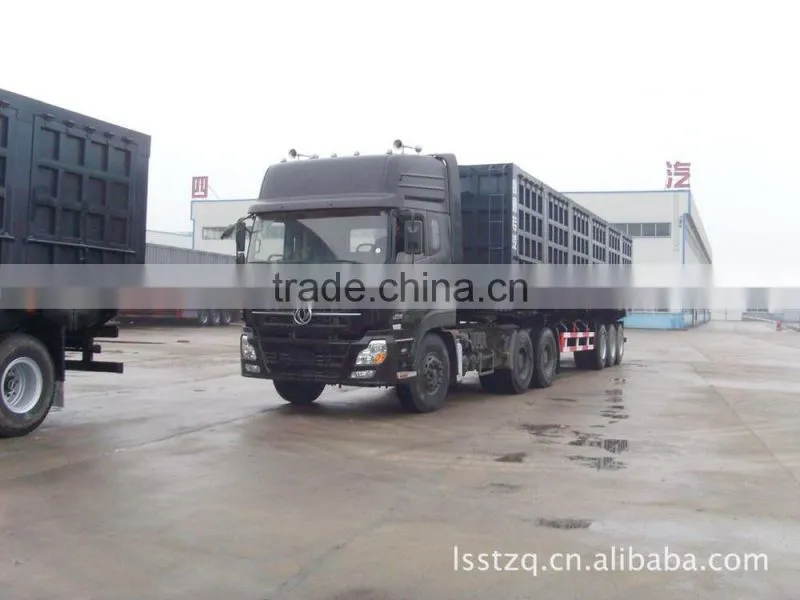

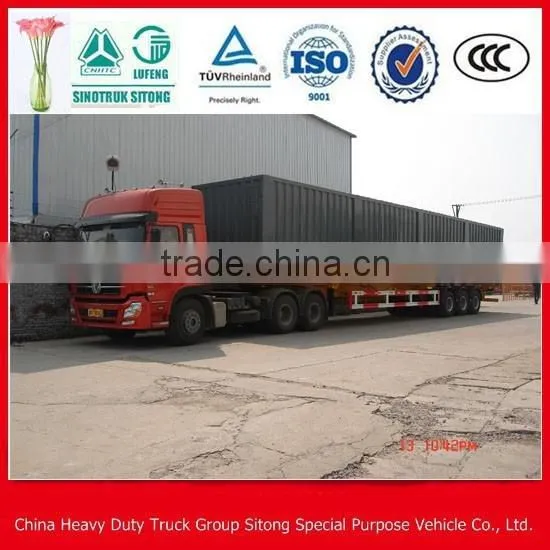

2) photo for 3 axle bicycle cargo transport semi trailer

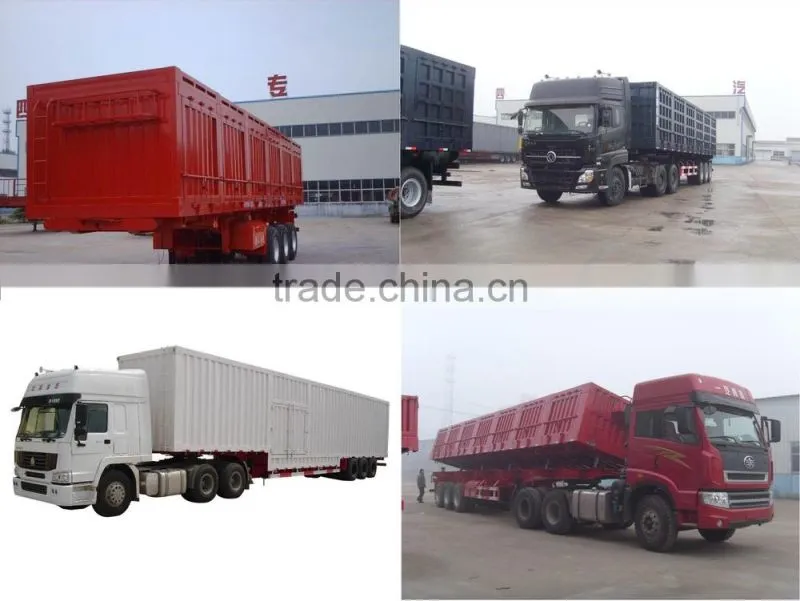

2.1) other semi trailers
main product: semi trailer, flatbed trailer, container trailer, skeleton trailer, low bed trailer, fuel tanker trailer, cement bulker, rear tipping trailer or dumper, stake cargo trailer, side wall semi trailer, car carrier trailer, wood transport trailer, full trailer, HOWO truck
3) factory photo for 3 axle bicycle cargo transport semi trailer
4) certificate for 3 axle bicycle cargo transport semi trailer
5) customer visit our semi trailer factory
