Help CenterHYVA Hydraulic Lifting Cylinder 3axle Tipping Trailer for Sale
Related Products
-
Hot Sell off Road Tent Trailer , 4x4 Trailer for SaleUS$ 5,800 - 6,800MOQ: 1 Set -
3 Axle Strong Box Semi Trailer , Van Semi Trailer , Grain Transport Truck TrailerUS$ 9,000 - 17,000MOQ: 1 Unit
-
Hot Sale !!! 3 Axle Van Truck TrailerUS$ 8,000 - 8,000MOQ: 1 Set
-
2/3 Axle Bicycle Cargo Transport Semi TrailerUS$ 1 - 10,000MOQ: 3 Sets
-
Factory Supplier 3 Axle Van Type Semi TrailerUS$ 9,800 - 15,800MOQ: 1 Set
Specifications
Trailer/Semi trailersFastest delivery time
Sinotruk group specified suppliers
ISO CCC SGS certification
Free sales service
| Gross Weight | about 5.5 tons or 3.2 tons | |
| Outer side dimention(mm) | 12450*2490*1557 | |
| Loading Capacity(Ton) | 45T | |
| AXLES | 13T/per,FUWA or BPW or Huajing brand | |
| Tire | 12.00R22.5 or315/80R22.5 | |
| Rim | 9.00-22.5 China Brand | |
| Suspension | Mechanical or Air suspension | |
| Spring leaf | 90(W)mm*13(Thickness)*10Layer or 100mm*12mm*12 | |
| King pin | Jost brand 2.0 or 3.5inch bolts type or Welding type | |
| Support leg | Jost brand D200T or China brand 28 tons (Double speed) | |
| Main beam | Height:500mm,upper plate is 14mm,middle plate is 8mm,down plate is 8mm,down plate is 16mm;material is Q345B steel | |
| Side beam | 16mm or 18mm channel steel(Material is Q235 steel) | |
| Brake chamber | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber(TKL brand);Two piece of 45Lair tanks | |
| Twist Locks | Four,Eight or Twelve pieces(Lifting type or Twist Screw Type) | |
| Valve | WABCO valve | |
| ABS | Optional | |
| Light | LED light | |
| Voltage | 24V | |
| Receptacle | 7 ways(7 wire harness) | |
| Tool box | One piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | |
| Painting | Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint | |
| Shipping Terms | Transport by bulk cargo carrier,RORO or 40HQ container | |

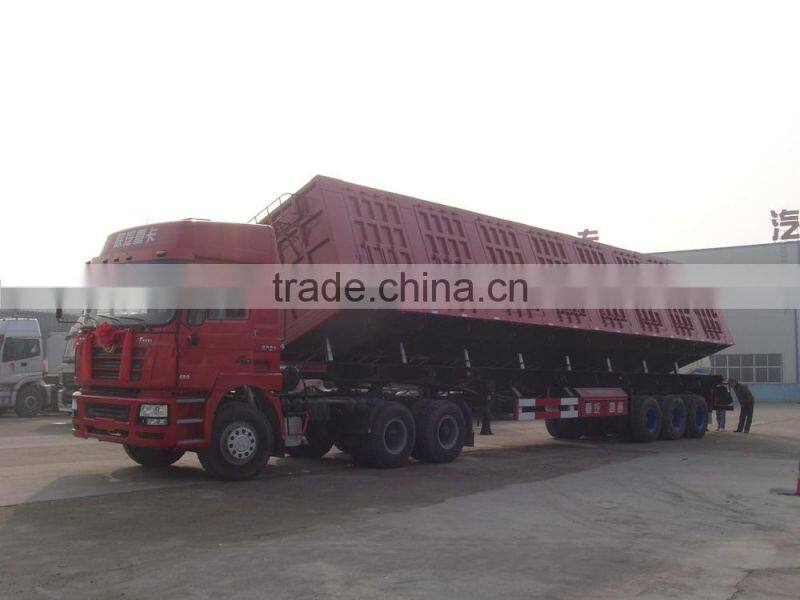

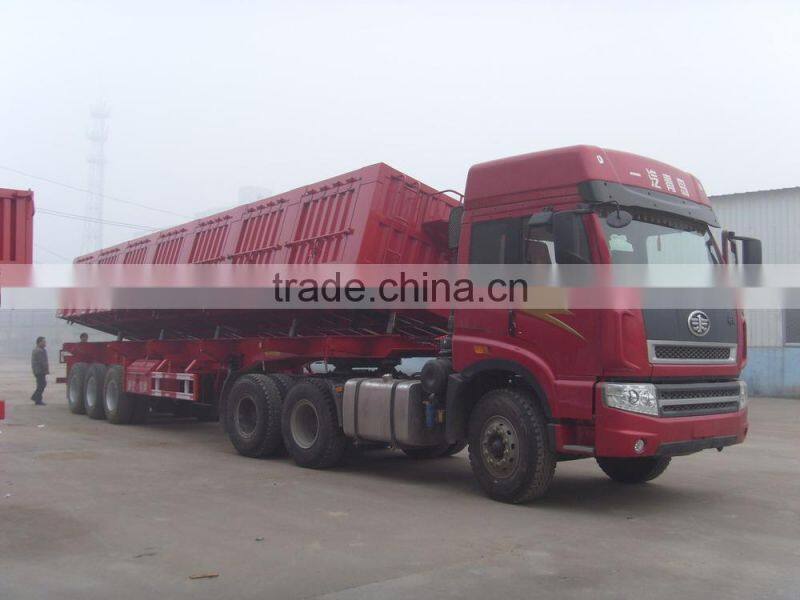

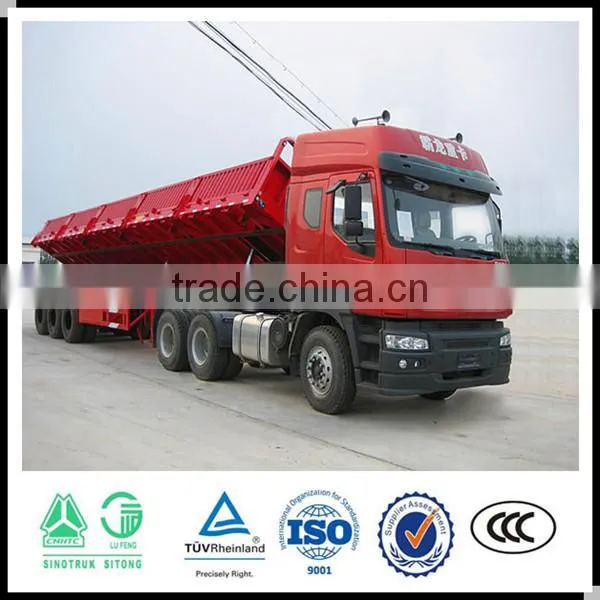

Picture of Product
-
-
-
-
1.Our guarantee term is six months.
2. We will send the engineer to mend the semi trailer for free within the six months
3.We will send the free accessries and tires.
.
China Heavy duty truck group Sitong Special Purpose Vehicle Co.,Ltd is the appointed manufacturing enterprise listed in the bulletin of Ministry of Information Technology and belongs to a joint venture of China National Heavy Duty Truck Group Co., Ltd. Its leading products include low-bed trailers, bulk lorries, delivery vans, and box stake semi-trailers; tank trucks, dump trucks and special vehicles, and other more than 100 kinds of products. It undertakes the modification and the design of dedicated vehicles and special vehicles. The company is engaged in providing the most high-quality high-way transportation products. It is also a domestic famous manufacturer of special vehicles engaged in the development, manufacturing and sales.
-
-
1.Payment:we can do TT LC and DA
2.Date of Delivery:When you make sure the order 15days after for shipment.
Reasons that you should choose us
1. Competitive Price
You are directly buying from a Chinese factory,We will be able to provied a very competitive price than anyone else in this field.
2. Quality Control
We have a quality control team to make sure customer can get best quality of product.
Our product are carefully processed and packed to meet international standards
3. Facilities
Our company has own production base which covered five workshops ,10 automated production lines.
packhouses provide logistics services.
If you are interested in our products, tell me somethings as following,then i will give you the best price and detailed specification.pls contact to:
Contact information
Skype : Eva_su06
Mobile phone: +86-18653701711
Chat App:Eva_su06
