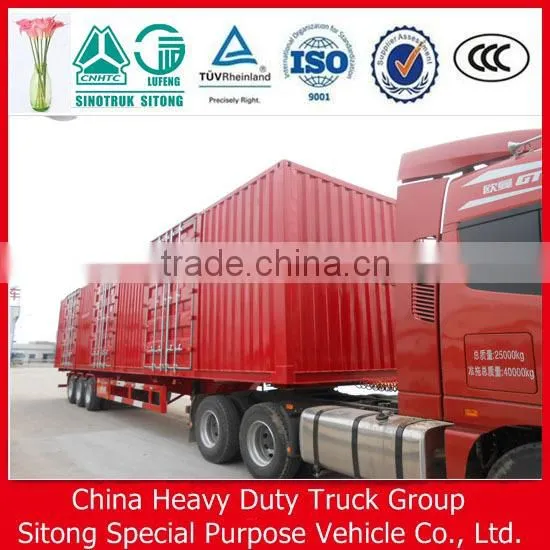

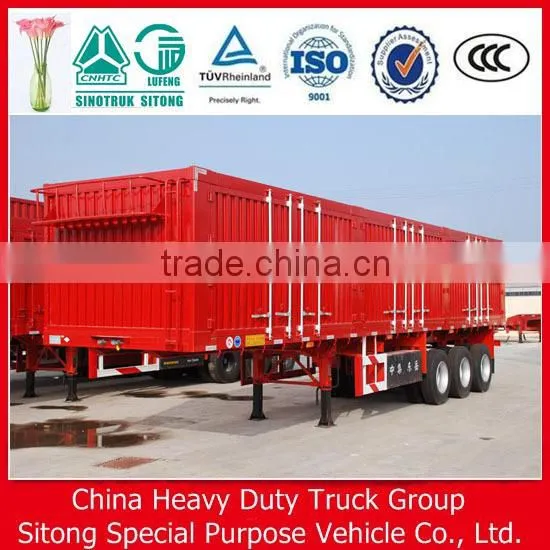

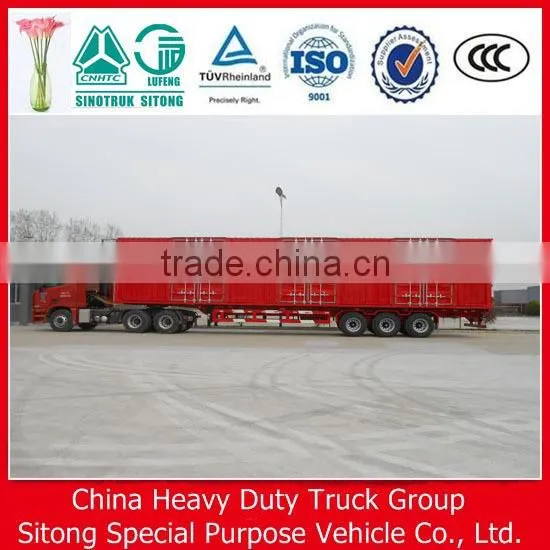

13 Meter Corrugation Plate Three Axle Van Semi Trailer
Type |
| Box semi trailer Loading for bulk goods Van Semi Trailer |
Shipping Terms | Shipping by bulk cargo ship, three pieces put together . | |
Delivery time | 20 workdays for three unit semi trailer | |
Weight: | Loading Capacity | 50tons |
| Tare Weight | About 10T |
Axle Weight Load | 16T per | |
Specification: |
| |
Axle number | Two , HUAJING brand | |
Suspension | America type Mechanical Suspension | |
Wheel | 12.00R20 triangle brand tire | |
King Pin | 2.00inch traction pin(Bolt connecting type)/.Jost brand | |
Dimensions (Inner box) | 13000 x 2500 x 2500mm | |
Support legs | CTAC special two double speed legs | |
Rim | 8.25-20 , | |
Steel Spring | 90mm*13mm*10pieces | |
Tire: |
|
|
Number of Tire | 8 pieces | |
Spare Tire Carriers | 2 pieces (not tires) | |
Frame: (specs. and materials) |
| |
Platform plate | 3mm flat Platform | |
The material of Main beam | the height of the beam is 500mm,upper plate is 18mm,down plate is 18mm,middle plate is 8 mm. | |
Side beam | Upper side beam is 16# channel steel, down is 16# channel steel. | |
Cross Beam | Vertical corrugated board, thickness is 3mm | |
Side board | Three folio doors and with lock bars at each side(Thickness 2mm) | |
Back Door | With four pieces lock bars | |
Upper side of box | Without plate | |
Brake: |
|
|
Emergency Brake Valve | WABCO | |
Brake Chamber | Four double chamber(CTAC special for export type ) | |
ABS system | without | |
Electrical: |
|
|
Voltage | 24V | |
| Receptacle | 7 ways(7 wire harness) |
Light color: |
| |
Side marker lamp | Orange | |
Rear lamp | Red | |
Turn signal lamp | Orange | |
Miscellaneous: |
| |
Painting | Blue | |
Marking | According to the requirement of the buyer | |
Side Guard | 2 piece | |
Tools box (without Tarpaulin) | One pieces(L x W x H:1500 x500 x 500mm)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) | |
Normally semi trailer is nude packing , bulk cargo , laden in bulk .
Considering our semi trailer dimension , shipping by sea .
1. OEM Service
2. Production Solutions Service
3. Customized Service
4. One-stop Shopping Service
China Heavy Duty Truck Group Sitong Special Purpose Vehicle Co.,Ltd.
Our company is sharp at manufacturing, has the leading manufacturing equipment and technology, and owns professional product inspection line and a complete CAD system,
which attributes to the winning of CCC certificate, IS09001 Quality Management Certification .
“Lufeng” is our own brand.Over the years, “Lufeng” special vehicles sell well in China and
overseas market and win great satisfaction and trust from customers.
1.Are you manufacture?
Yes. We are one of leading manufacturers for Kinds of pneumatic torque
wrench with many new production line.
2.What's your guarantee?
On the product of "Three Guarantees".
The main components of the warranty period(See table):
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
| BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
| BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
| AIR RESERVOIR | 6 MONTHS | |||||
| ITEM NAME | WARRANTY | |||||
| OTHERS | LEAF SPRING | 3 MONTHS | ||||
| BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
| EMERGENCY RELAY VALVE | 3 MONTHS | |||||
| BRAKE SHOE | 3 MONTHS | |||||
| RELAY VALVE | 3 MONTHS | |||||
3.Is OEM available?
Yes, OEM is available. We can produce our trailer according to your requirements.
And we can also put your brand on the trailer.
4.What benefits will you bring?
Your client satisfied on the quality.
Your client continued orders.
Your can get good reputation from your market and obtain more orders.
5.Technical guidance offered or not?
We could offer the use and other aspects of technical guidance according to the request of the customer.
6.Please explain more about the Package and Shipping.
There's no package but we will spary wax before shipment against saltwater corrosion.
Regarding to the shipping method, as the size of truck trailer is not small, most kinds of trailers must be delivered by Ro-ro vessel or bulk vessel. But few kinds of trailers could be delivered by container vessel. Different trailers, different shipping methods.
