car carrier semi truck trailer
- 500 Set / Sets per Month
- tianjin
- T/T
- 4 Axle Skeleton Container Semi Trailer For Sale,3 Axle 20FT 40FT Skeleton Container Trailer Frame With Airbag Suspension
- Sedan SUV transport semi-trailer export semi-trailer Russian European style semi-trailer
- Low flatbed semi-trailer Hydraulic ladder semi-trailer Automatic low flatbed export trade
- Exporting trailers to Russia European style car transport Semi trailer price
- Multi axles modular low bed semi trailer
- AUTONE wingspan van semitrailer
Product Details
Type: | Semi-Trailer | Material: | Steel | Certification: | Other, CCC, ISO |
Size: | 14200mm*2490mm*1575mm | OEM No.: | car carrier semi truck trailer | Max Payload: | 60TONS |
Place of Origin: | Shandong, China | Brand Name: | LUFENG | Model Number: | car transport semi truck trailer |
Product Description
car carrier semi truck trailer
1) specification for car carrier semi truck trailer
Tare Weight | 15T |
dimension | 14.200mm*2490mm*1575mm |
Loading Capacity | ≤60T |
Axle | 13T/16T/20T/25T,FUWA/BPW/Huajing Brand |
Rim | 8.25-20/9.00-22.5 |
Tire | 11.00R20/1200R22.5 |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW Brand) |
Spring leaf | 90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12 |
Main beam | Main beam 500mm,up /down plate 16/18mm,webplate 10mm,side beam 16# channel steel,3 mm diamond plate |
King pin | Jost brand 2.0 0r 3.5 inch bolts type or welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height:500mm,upon plate is 18mm,middle plate is 10mm,down plate is 18mm;Material is Q345B Steel |
Side beam | 18”# channal steel (Material is Q235steel) |
Brake chamber | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber |
ABS | Optional |
Twist Locks | Four, Eight, Twelve pieces(Lifting type or Twist Screw Type) |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways(7 wire harness) |
Tool box | One piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint |
Shipping term | Transport by bulk cargo carrier, RORO or 40HQ container |
main product: semi trailer, flatbed trailer, container trailer, skeleton trailer, low bed trailer, fuel tanker trailer, cement bulker, rear tipping trailer or dumper, stake cargo trailer, side wall semi trailer, car carrier trailer, wood transport trailer, full trailer, HOWO truck

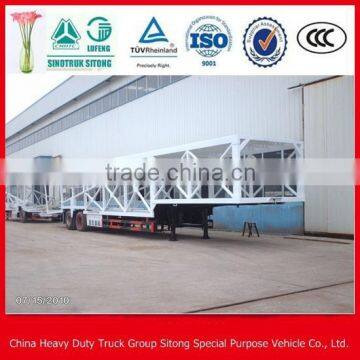

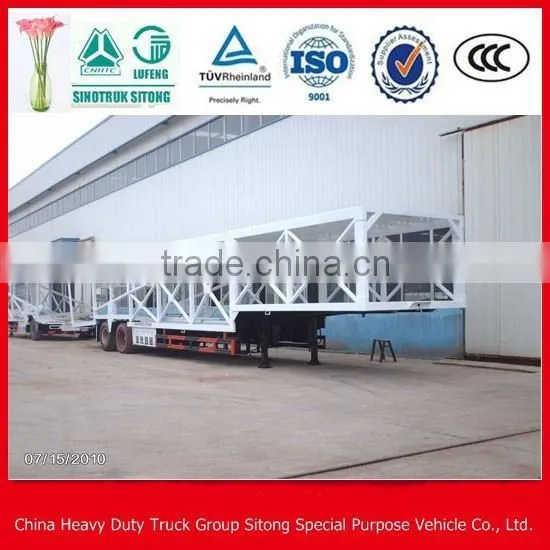

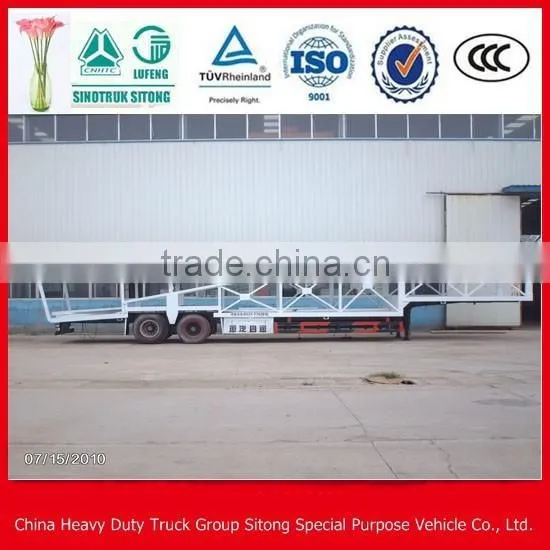

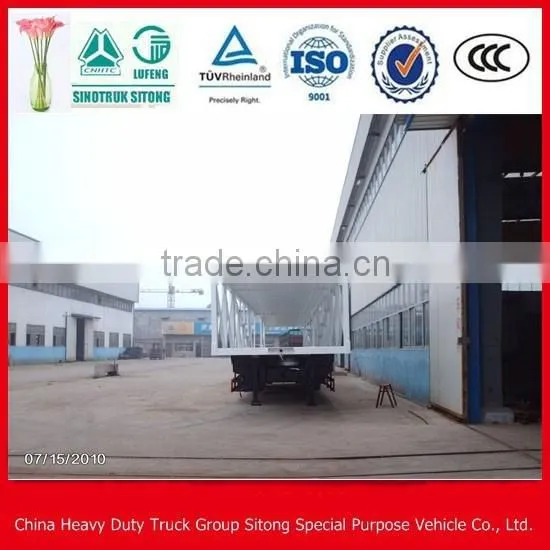

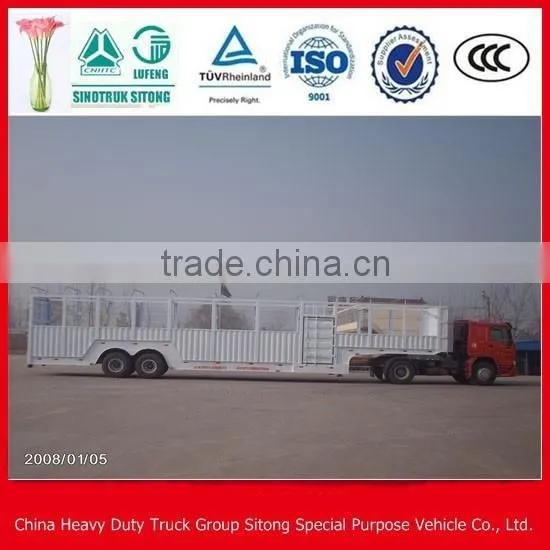

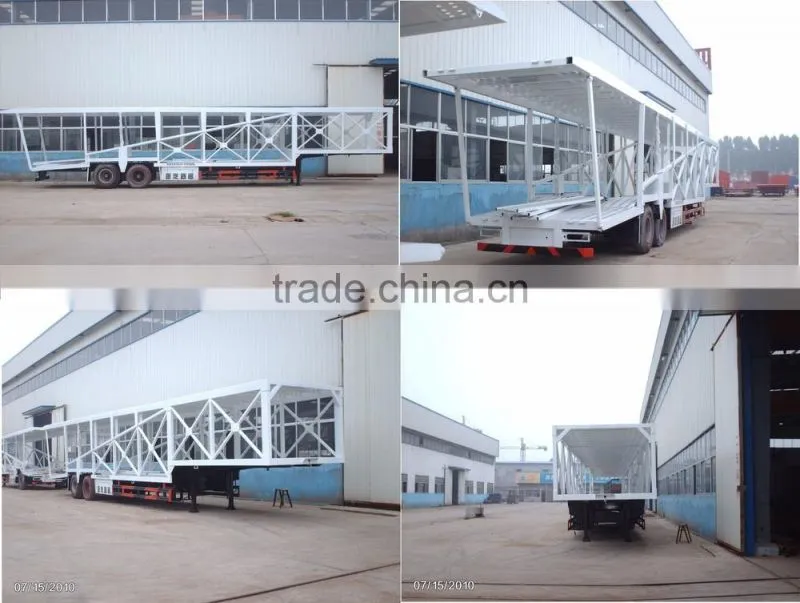

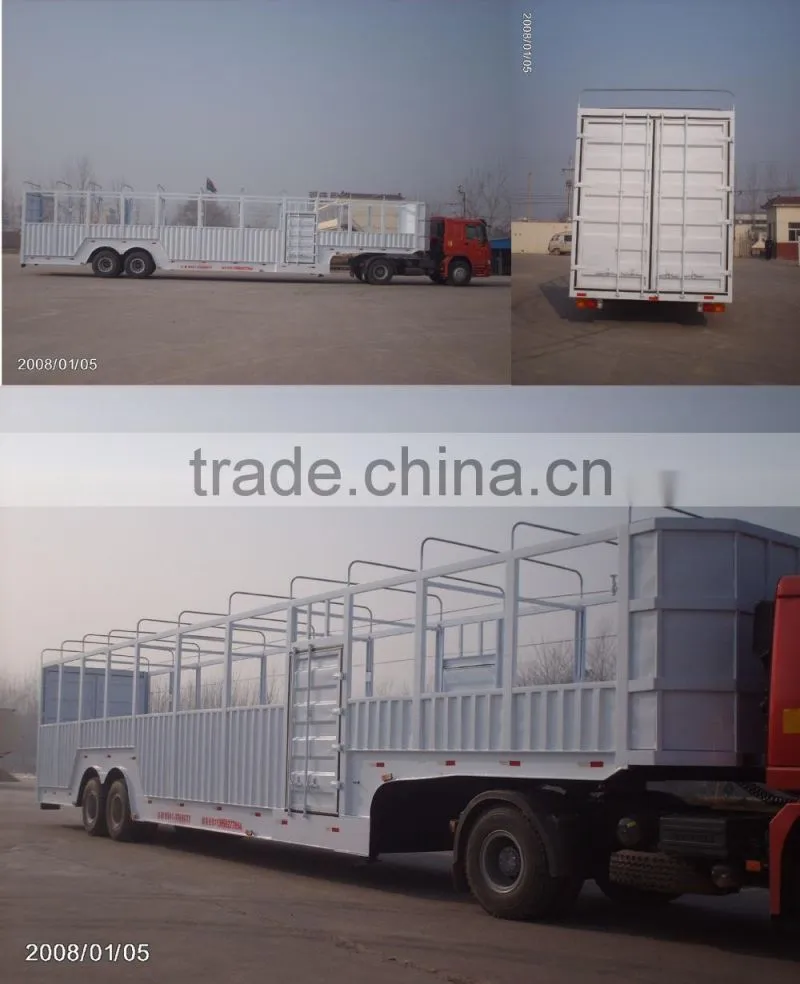

2) photo for car carrier semi truck trailer

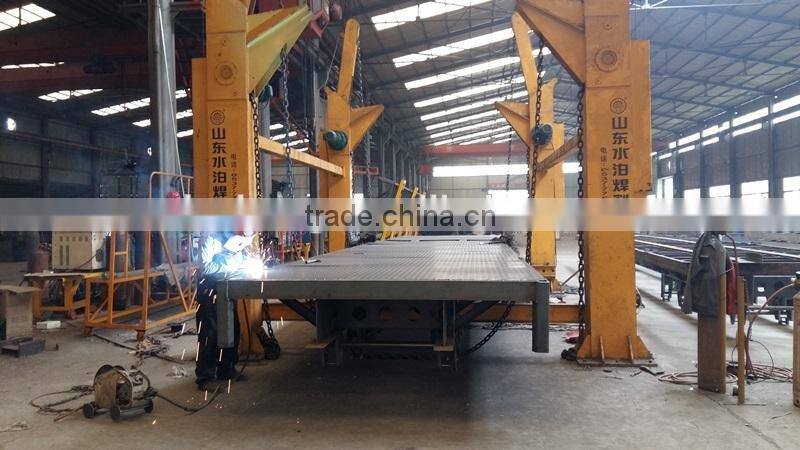

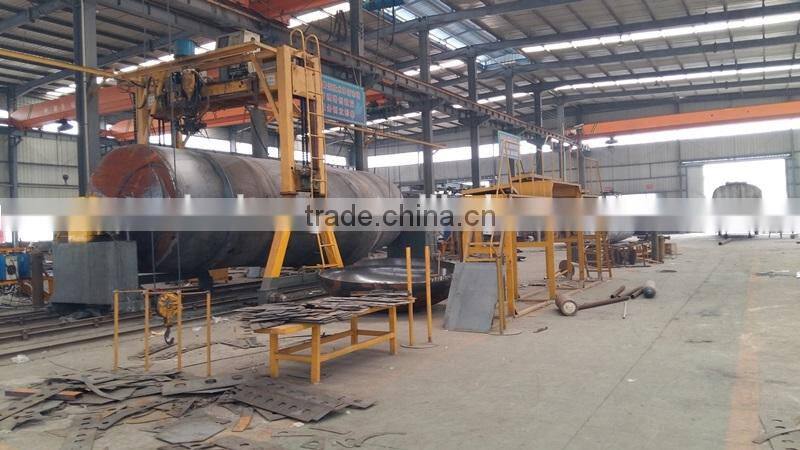

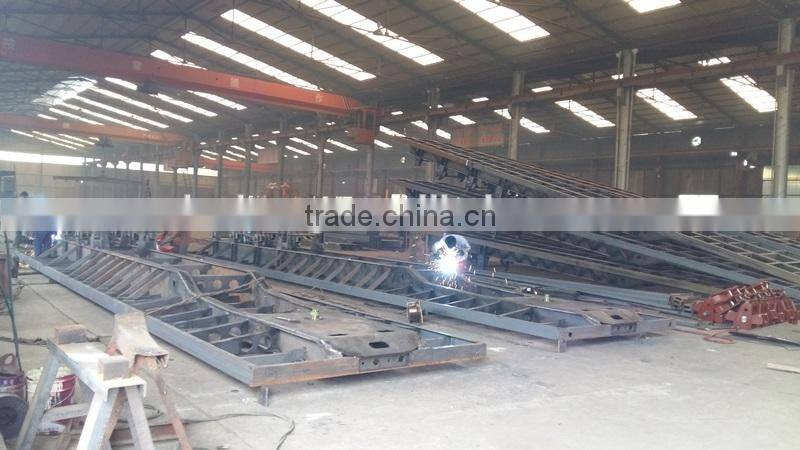

3) factory photo for car carrier semi truck trailer
China Heavy- Duty Car Group Liangshan Sitong Special Purpose Vehicle Co., Ltd.
We are one of the largest semi trailer manufacturer in China, our factory was established in 2002, so we have been in semi trailer business line for more than 14 years, and we are the cooperative enterprise with Sino Truck Group.
Our factory is located in Quanpu Industrial Zone, Liangshan, Jining city, Shandong province, China (Mainland). We own 76, 000 square meters production base with 20,000,000 registered capital 130,000,000 fixed assets, and our annual production capacity can reach 6,000 sets semi trailer. In our factory, there are 750 workers, 63 technologists and four engineers.

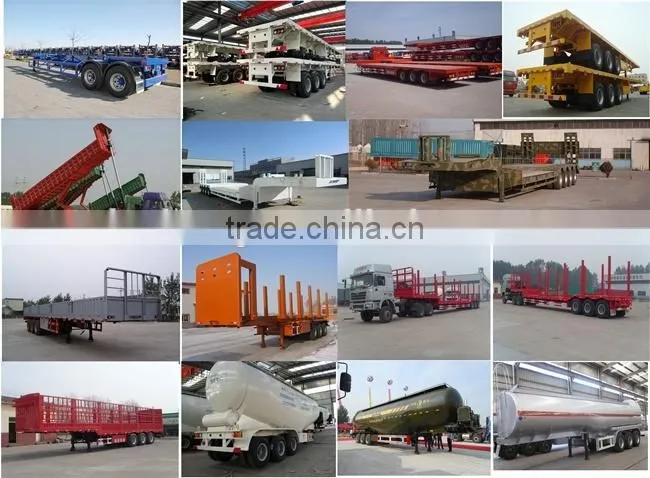

The following are our main products:
Low bed semi trailer
Flatbed semi trailer
Skeleton semi trailer
Fuel tank semi trailer
Bulk cement tank semi trailer
Stake semi trailer
Side wall semi trailer
Rear tipping semi trailer
Box / container semi trailer
Car transport semi trailer
Wood transport semi trailer
Concrete mix truck
Full trailer
HOWO truck head
Our products have been exported into Vietnam, South Africa, Mozambique, Pakistan, Brazil, Australia, Algeria and so on. We have owned certificates including ISO9001:2008 and CCC.
Warmly welcome all of friends and customers to visit our factory!

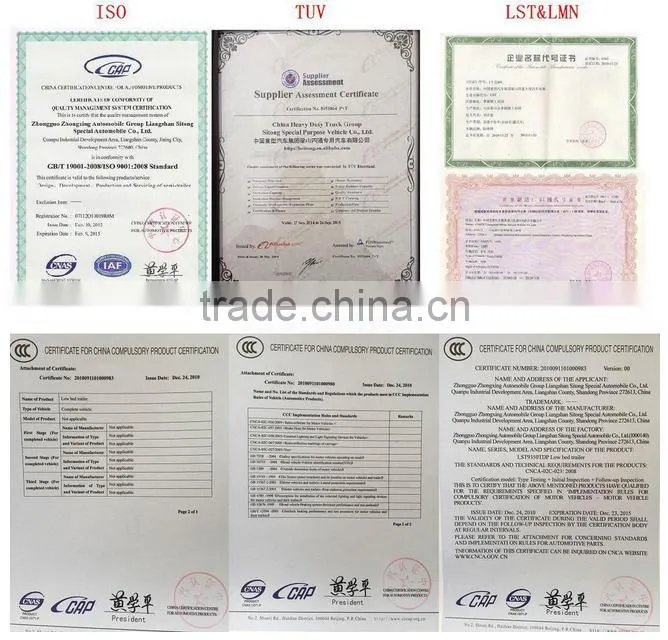

4) certificate for car carrier semi truck trailer
5) contact information for car carrier semi truck trailer
Contact: Polaris Chen
director of international trade department
sitong03 at outlook com
skype: cindy.golden
Tel: 0086 537 2882988
Fax: 0086 537 2882988
Mobile: 0086 15053741628
