Dimensions
Overall length x Width x Height :16950x2590x3990mm
Wheel base (mm): :10850+1350
Weights and loads
Loading Capacity: 30 ton to 60 ton
RUNNING GEAR

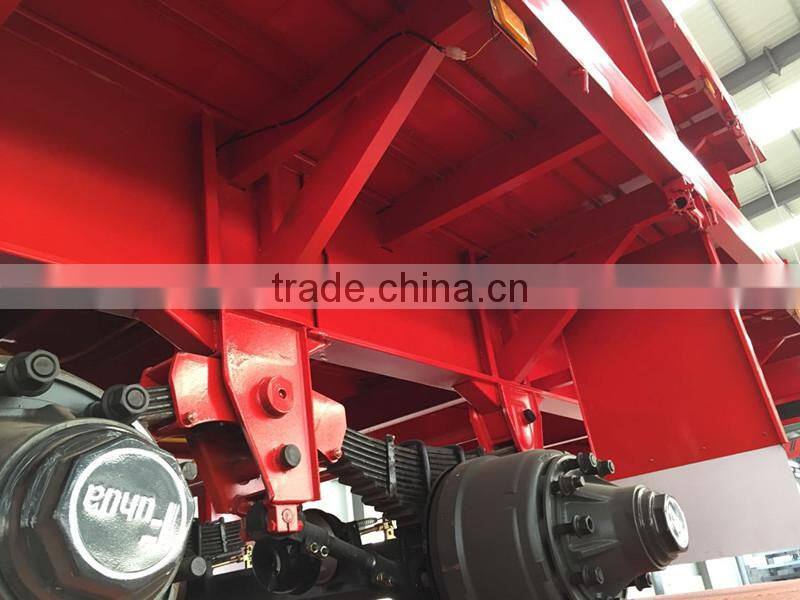

Suspension System:
Mechanical suspension with 8 plate springs
Axles
2 axles single tyre
FUWA or BPW axles 2 ×13T

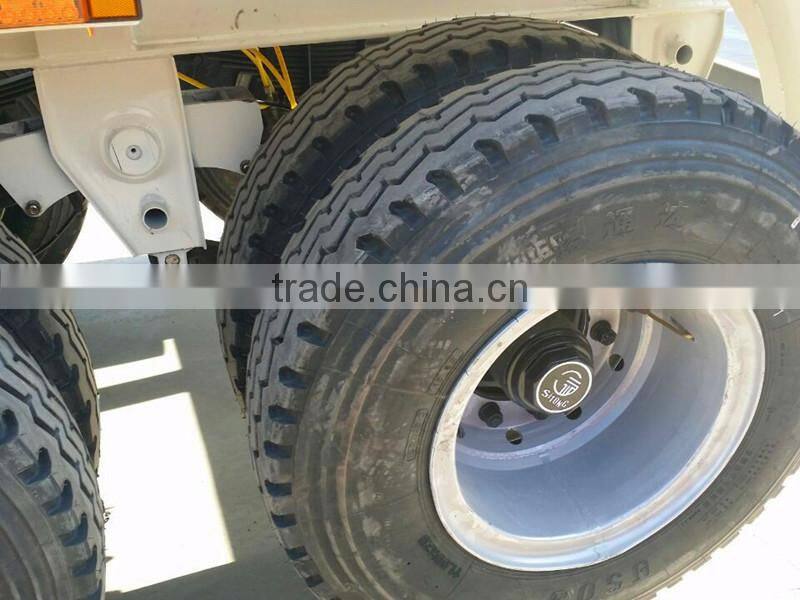

Wheels
TRIANGLE diagonal tyres 10.00-20; made in China
Tyres
TRIANGLE diagonal tires,10.00-20, 8 units, made in China
King pin
2", welded in
CHASSIS:
No.car (4m/unit): 8 units
Main Beams
300mm height, Low Alloy (Q345 ) by automatic submerged arc welding; Top Flange 10mm, Botton Flange 10mm, Middle Flange 6mm.
Load Platform
3 mm thickness anti-slip floor
Surface preparation & painting:
On completion of fabrication, all steel parts are steel blasted to to SA 2.5 , then Two Synthetic Enamel Finish Paint, Single color as per customer’s choice
LIGHT SYSTEM:
Standard electrical equipment 24V with rear lights on bumper, electric connection type SEA 7 poles mounted on the front bearer.
BRAKE SYSTEM:
ABS system can be optional
ACCESSORIES
TOOL BOX (BOX ONLY)---1.5m length PROVIDED WITH THE TRAILER;
2 SPARE WHEEL HOLDER(WINCH),BUT NO SPARE TYRES AND WHEELS;
REAR BUMPER;
the specification above is just for reference, the semi trailer can be made according to your requirements.
Different conditions of semi trailers as your choice:
1, Axle number : 2axles , 3axles , 4axles
2, Overall dimention : 1100/11500/12000*3000*3150mm
3, Rated load capacity : 21tons –40tons
4, Tire type of : 8.25R20;8.25-20;8.25R16;8.25-16
5, Tire number : 8 ,12,16
1.Our guarantee term is six months.
2. We will send the engineer to mend the semi trailer for free within the six months
3.We will send the free accessries and tires.
China Heavy Duty Truck Group Sitong Special Purpose Vehicle Co.,Ltd.

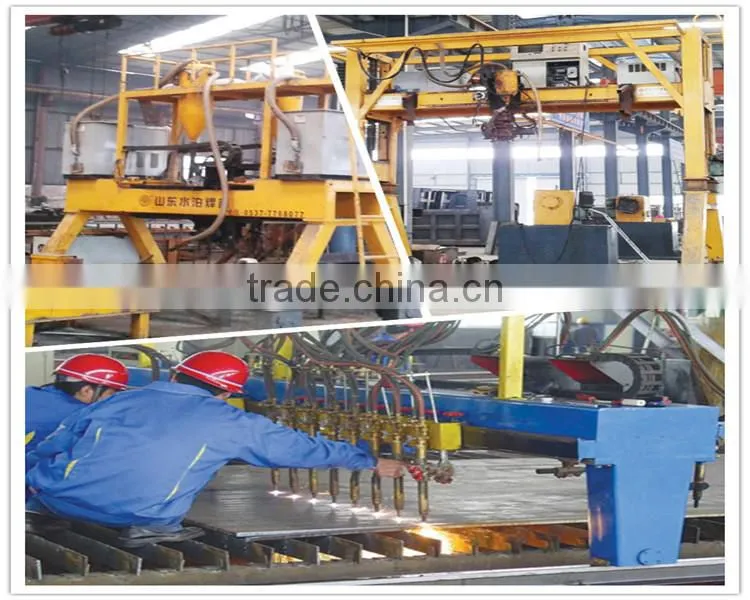

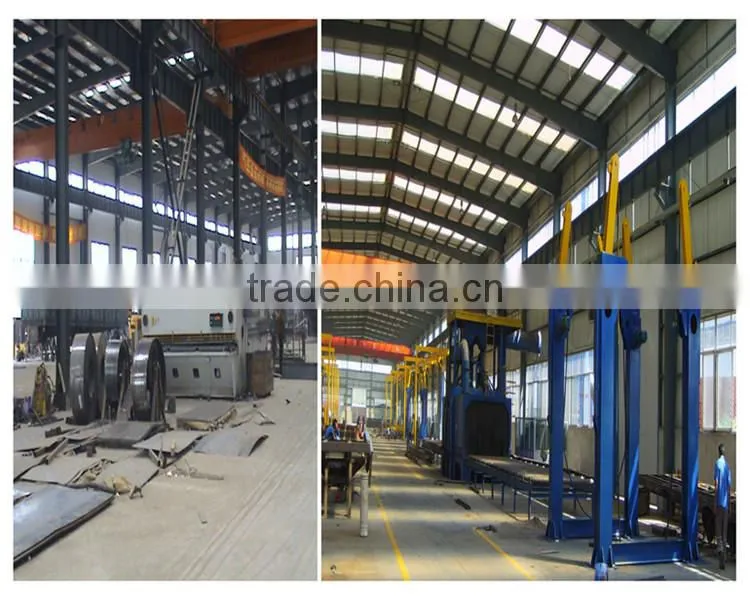

Our company is sharp at manufacturing, has the leading manufacturing equipment and technology, and owns professional product inspection line and a complete CAD system, which attributes to the winning of CCC certificate, IS09001 Quality Management Certification . “Lufeng” is our own brand.Over the years, “Lufeng” special vehicles sell well in China and overseas market and win great satisfaction and trust from customers.
1.Payment:we can do TT LC and DA
2.Date of Delivery:When you make sure the order 15days after for shipment.
If you have any question,please feel free to cantact:
ing manager
Skype: tristanshang
WhatsApp&mobile: +86 18765479090
Tel: +86-537-7761616
Fax: +86-537-7761616
Company: China Heavy Duty Car Group Sitong Special Purpose Vehicle Co., Ltd.
Address: Quanpu Industrial Zone, Liangshan, Shandong, China (Mainland)
