15~60ton Sitong Car Trailer

15~60ton Sitong Car Trailer thumbnail-1
15~60ton Sitong Car Trailer thumbnail-2
15~60ton Sitong Car Trailer thumbnail-3
15~60ton Sitong Car Trailer thumbnail-4
15~60ton Sitong Car Trailer thumbnail-5
15~60ton Sitong Car Trailer photo-1
15~60ton Sitong Car Trailer photo-2
15~60ton Sitong Car Trailer photo-3
15~60ton Sitong Car Trailer photo-4
15~60ton Sitong Car Trailer photo-5
US$ 1 - 10,000 MOQ: 3 Sets
Key Specifications
Get Latest Price
Max Payload:
60TONS
Size:
14200mm*2490mm*1575mm
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
China Heavy Duty Truck Group Sitong Special Purpose Vehicle Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Max Payload 60TONS
Size 14200mm*2490mm*1575mm
Place of Origin Shandong, China
Brand Name LUFENG
Model Number 15~60ton sitong car trailer

                    15~60ton sitong car trailer

1) specification for 15~60ton sitong car trailer

Tare Weight

15T

dimension

14.200mm*2490mm*1575mm

Loading Capacity

≤60T

Axle

13T/16T/20T/25T,FUWA/BPW/Huajing Brand

Rim

8.25-20/9.00-22.5

Tire

11.00R20/1200R22.5

Suspension

Mechanical suspension (Germany Type or America Type)

Or Air suspension (China brand or BPW Brand)

Spring leaf

90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12

Main beam

Main beam 500mm,up /down plate 16/18mm,webplate 10mm,

side beam 16# channel steel,

3 mm diamond plate

King pin

Jost brand 2.0 0r 3.5 inch bolts type or welding type

Support leg

JOST brand D200T or China brand 28Tons (Double speed)

Main beam

Height:500mm,upon plate is 18mm,middle plate is 10mm,down plate is 18mm;

Material is Q345B Steel

Side beam

18”# channal steel (Material is Q235steel)

Brake chamber

WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber

ABS

Optional

Twist Locks

Four, Eight, Twelve pieces(Lifting type or Twist Screw Type)

Valve

WABCO valve

Light

LED light

Voltage

24V

Receptacle

7 ways(7 wire harness)

Tool box

One piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,

2coats of final paint

Shipping term

Transport by bulk cargo carrier, RORO or 40HQ container

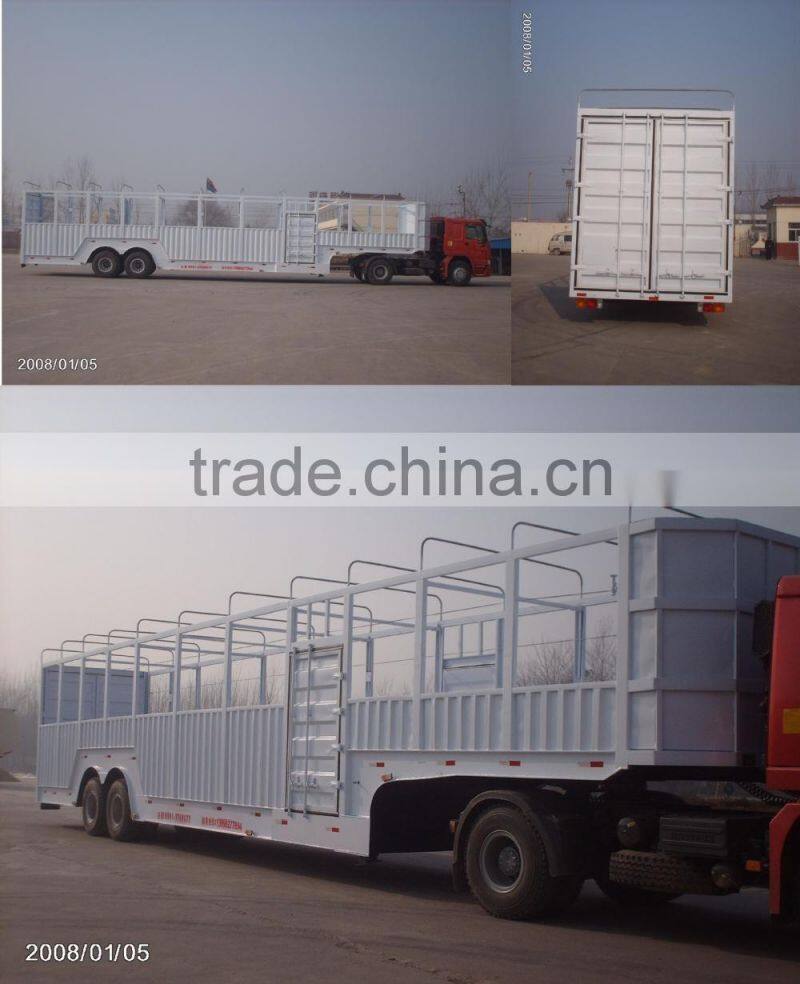

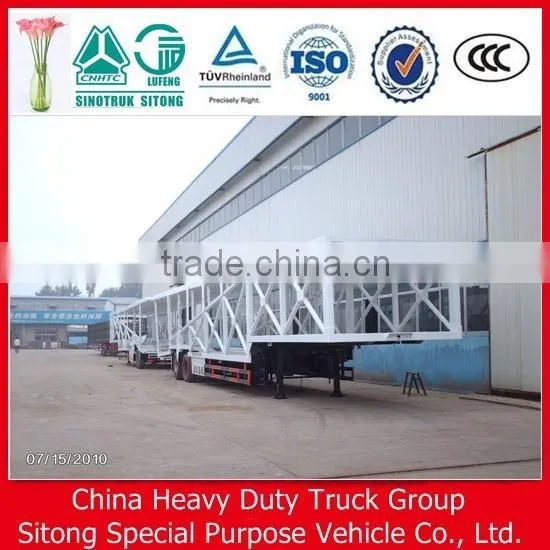

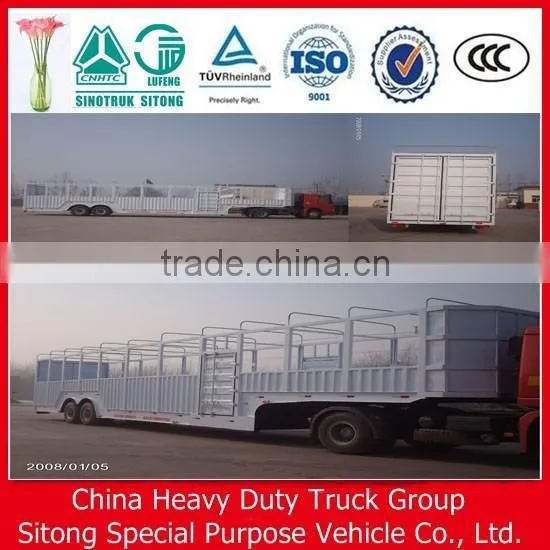

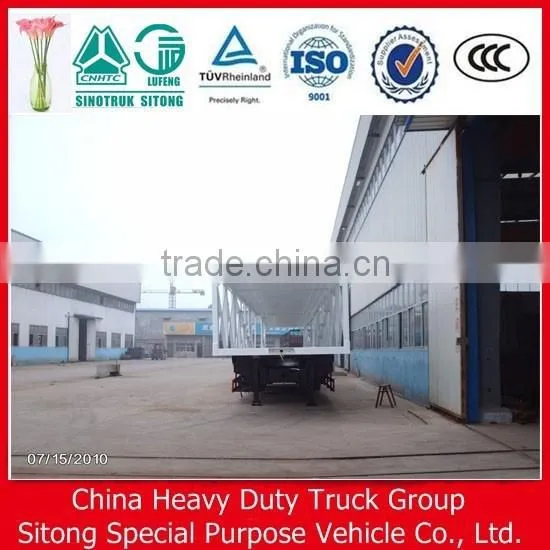

2) photo for  15~60ton sitong car trailer

15~60ton sitong car trailer15~60ton sitong car trailer



3) factory photo for 15~60ton sitong car trailer

15~60ton sitong car trailer

4) certificate for  15~60ton sitong car trailer



5) other semi truck trailer

Company alibaba website:

http://lssitong.en.china.cn/productgrouplist-800488749/flat_bed_semi_trailer.html



1. Fuel/oil tank semi trailer

http://lssitong.en.china.cn/product/60209075504-800495715/25_60m3_oil_tank_semi_trailer.html

2. Bulk cement tank semi trailer

http://lssitong.en.china.cn/product/60209863302-800495714/bulk_cement_tank_semi_trailer.html

3. Low bed semi trailer

http://lssitong.en.china.cn/product/60208833133-800477895/low_bed_semi_truck_trailer.html

4. Logging semi trailer

http://lssitong.en.china.cn/product/60215951210-800477894/logging_semi_truck_trailer.html

5. Car transport semi trailer

http://lssitong.en.china.cn/product/60208616195-800495288/60ton_china_car_transport_truck_trailer.html

http://lssitong.en.china.cn/product/60218016038-800495288/car_transport_semi_trailer.html

6. container skeleton semi trailer

http://lssitong.en.china.cn/product/60211067474-800488748/skeleton_semi_trailer_container_chassis.html

7. Container flatbed semi trailer

http://lssitong.en.china.cn/product/60210322196-800488749/shipping_container_flat_bed_truck_trailer.html

http://lssitong.en.china.cn/product/60209871582-800488749/shipping_container_flatbed_semi_trailer.html

8. Tractor full trailer

http://lssitong.en.china.cn/product/60210408753-800512156/farm_tractor_cargo_trailer.html

http://lssitong.en.china.cn/product/60210383186-800512156/farm_tractor_full_trailer.html

9. Side wall semi trailer

http://lssitong.en.china.cn/product/60213172210-800477896/Factory_supplier_2_axle_farm_trailer_tractor_tipper_trailer.html

http://lssitong.en.china.cn/product/60213093808-800512156/25_60ton_drop_side_farm_trailer.html

10. box semi trailer

  http://www.china.cn/product-detail/hot-sale--3-axle-van_60215324293.html

11. Stake semi trailer

http://lssitong.en.china.cn/product/60212519973-800495288/hot_sale_3_axle_stake_cattle_cargo_trailer.html

12. Rear dump semi trailer

http://lssitong.en.china.cn/product/60220822234-800512155/china_hydraulic_axle_dump_semi_trailer.html

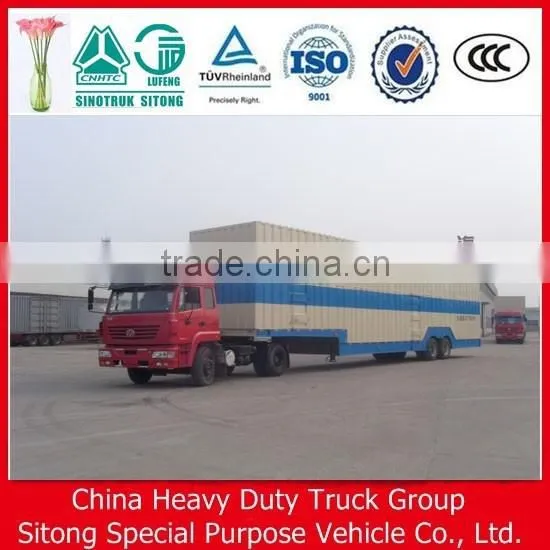

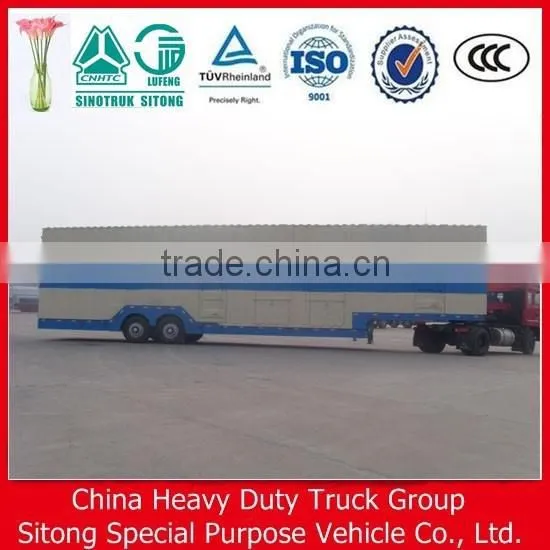

other semi truck trailers photo



15~60ton sitong car trailer





6) contact information for  15~60ton sitong car trailer

15~60ton sitong car trailer
