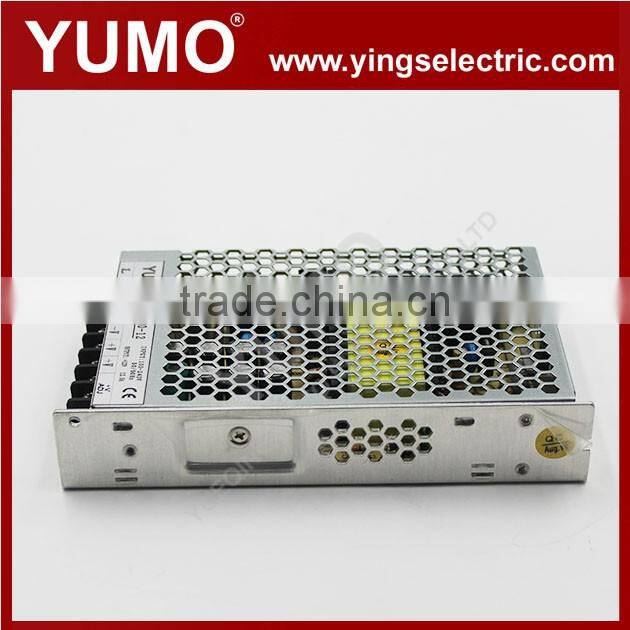

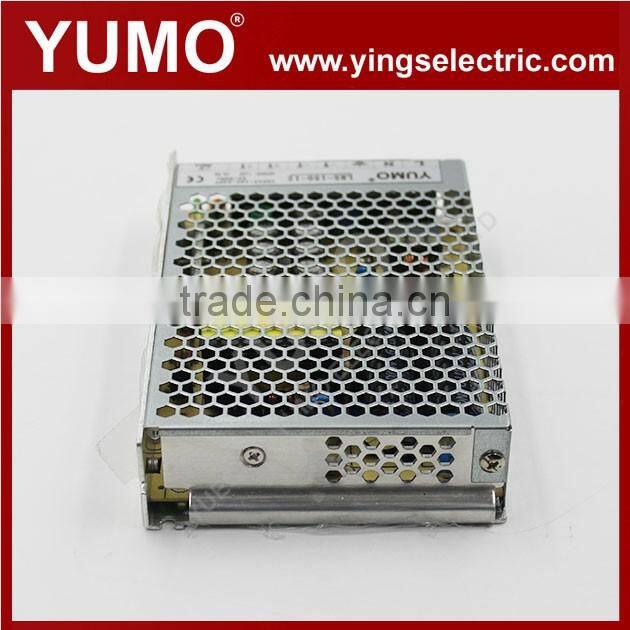

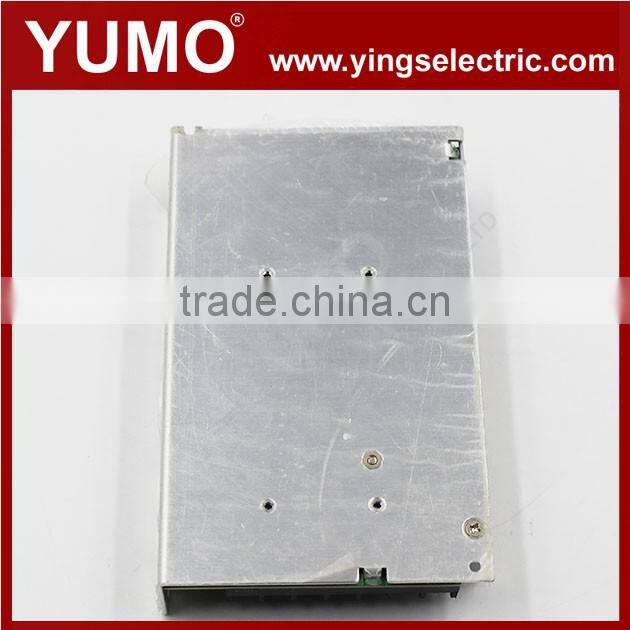

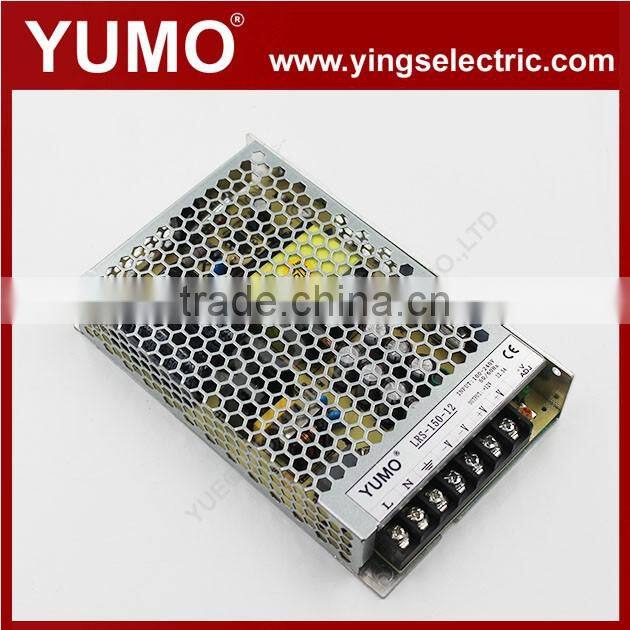

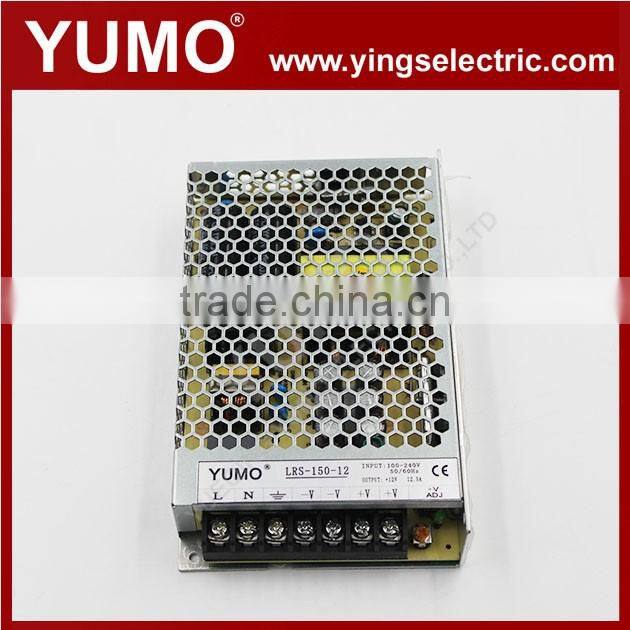

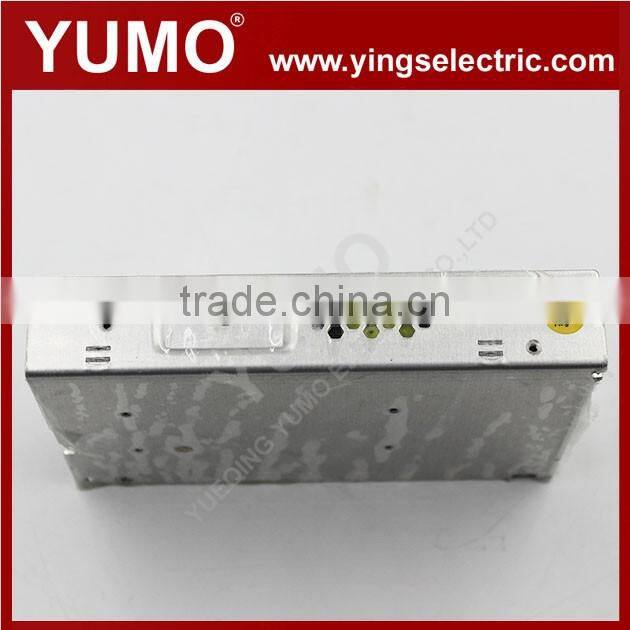

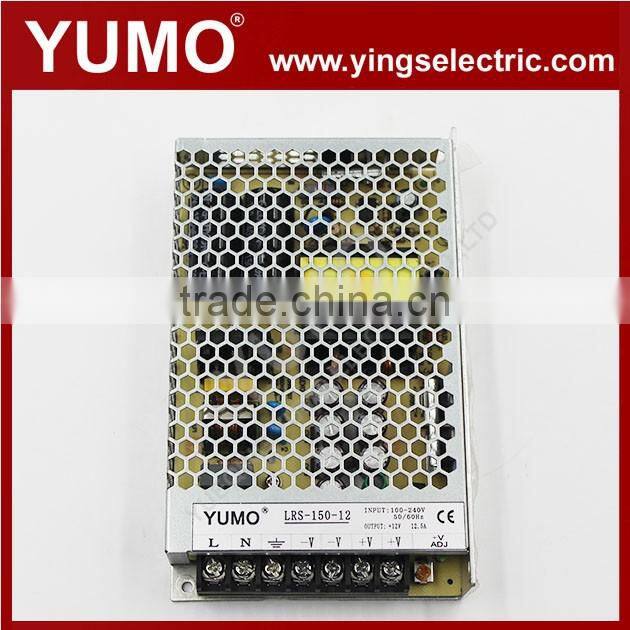

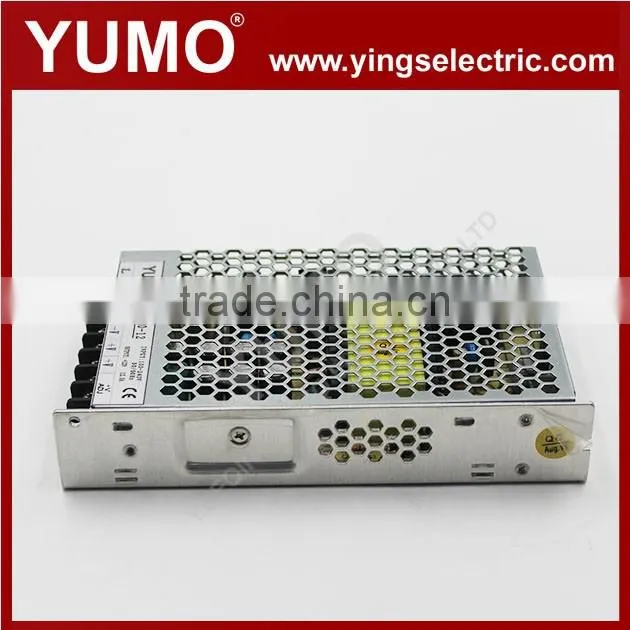

LRS-150-12 Switching Power Supply
Description
LRS-150 series is a 150W single-output enclosed type power supply with 30mm of low profile design.
Adopting the input of 115VAC or 230VAC(selectable by switch}, the entire series provides an output voltage line of 12V, 15V, 24V, 36V and 48V.
ln addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-150 that the whole series operates from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.5W}, it allows the end system to
easily meet the worldwide energy requirement. LRS-150 has the complete protection functions and 5G anti- vibration capability; it is complied with the international safety regulations such as TUV EN60950-1, EN60335-1,EN61558-1/-2-16, UL60950-1 and GB4943. LRS-150 series serves as a high price-to- performance power supply solution for various industrial applications.
| MODEL NO | LRS-150-12 | LRS-150-15 | LRS-150-24 | LRS-150-36 | LRS-150-48 | |
| OUTPUT | DC VOLTAGE | 12V | 15V | 24V | 36V | 48V |
| RATED CURRENT | 12.5A | 10A | 6.5A | 4.3A | 3.3A | |
| CURRENT RANGE | 0 ~ 12.5A | 0 ~ 10A | 0 ~ 6.5A | 0 ~ 4.3A | 0 ~ 3.3A | |
| RATED POWER | 150W | 150W | 156W | 154.8W | 158.4W | |
| RIPPLE & NOISE | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 10.2~13.8V | 13.5~18V | 21.6~28.8V | 32.4~39.6V | 43.2~52.8V | |
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | |||||
| HOLD UP TIME | 40ms/230VAC 35ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 85 ~ 132VAC / 170 ~ 264VAC by switch 240 ~ 370VDC(switch on 230VAC) | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| EFFICIENCY | 87.5% | 88.5% | 89% | 89% | 90% | |
| AC CURRENT | 2.8A/115VAC 1.6A/230VAC | |||||
| INRUSH CURRENT | COLD START 60A/230VAC | |||||
| LEAKAGE CURRENT | <0.75mA / 240VAC | |||||
| PROTECTION | OVERLOAD | 110 ~ 140% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 13.8~16.2V | 18.75~21.75V | 28.8~33.6V | 41.4~48.6V | 55.2~64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70°C (Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C , 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | |||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC | SAFETY STANDARDS | U60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16,CCC GB4943 approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | |||||
| EMC EMISSION | Compliance to EN55022 (CISPR22), GB9254 Class B, EN55014, EN61000-3-2,-3 | |||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A | |||||
| OTHERS | MTBF | 601K hrs min. MIL-HDBK-217F (25°C) | ||||
| DIMENSION | 159*97*30mm (L*W*H) | |||||

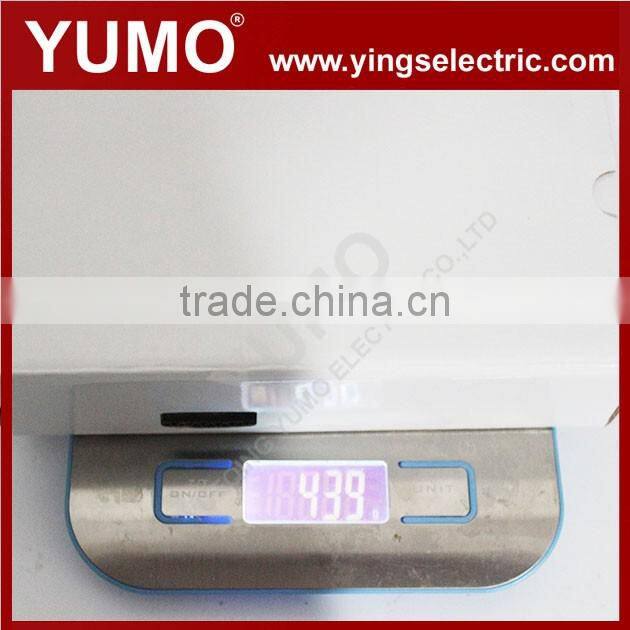

| PACKING | 0.48Kg ; 30pcs/15.4Kg/0.75CUFT | |||||
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
