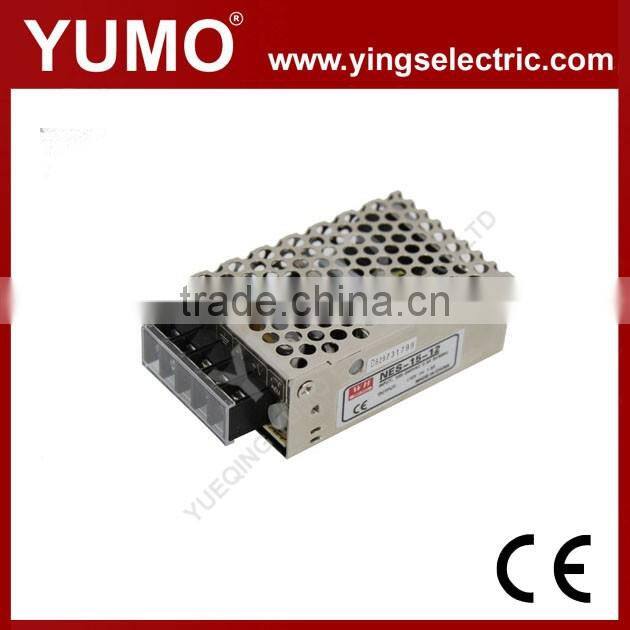

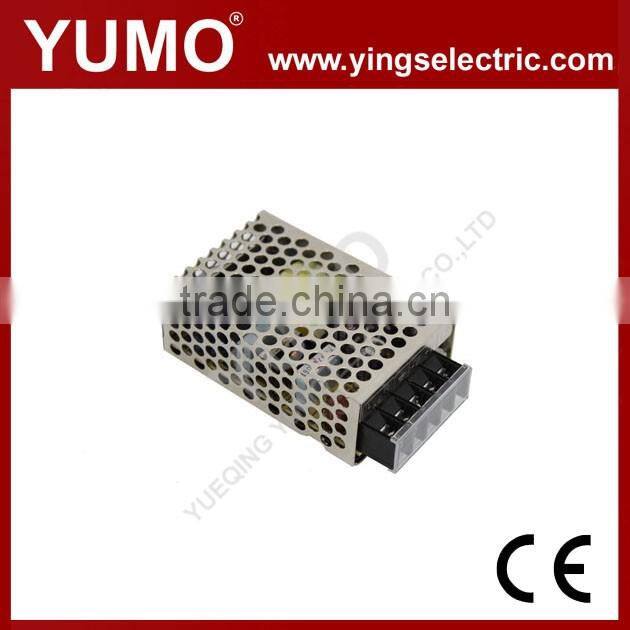

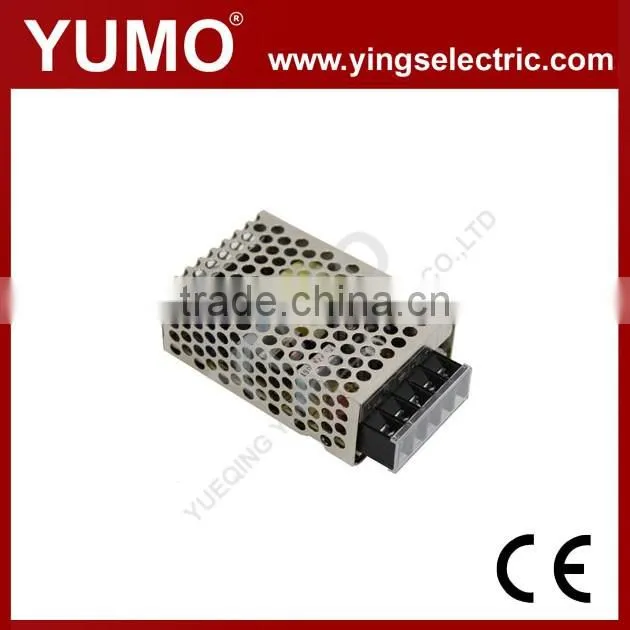

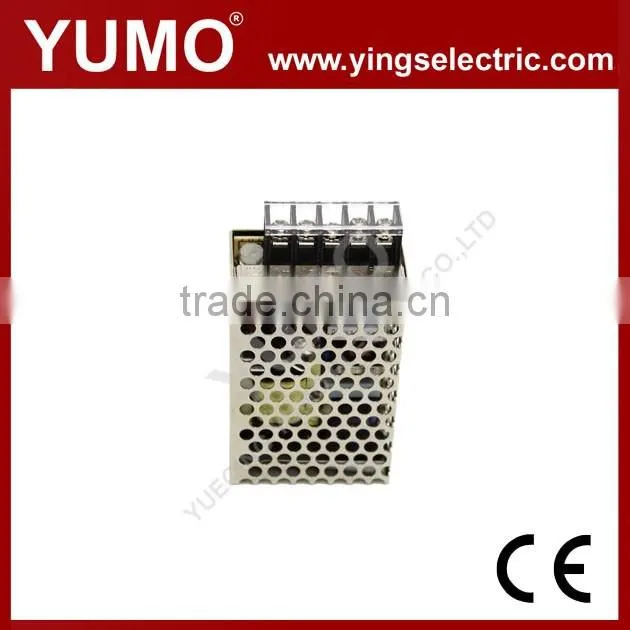

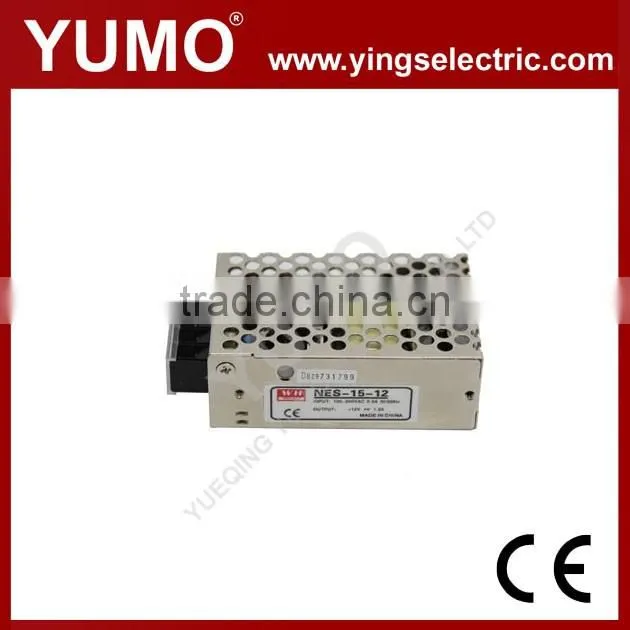

YUMO NES-15 15W 5/12/24/48V NES Series Efficient single switching power Switching Power Supply
Specifications:
1.CE ROHS approved.
2.2 years warranty
3.79% efficiency
4.100-240VAC 0.5A 50/60Hz input
Notice:
a.We do have enough ability to produce your customized order
b.Samples are available
c.High quality and competive price .
d. 2 years warrenty ,buy with confidence
Features:
1. AC input range selectable by switch
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warranty
Data sheet :
we can stick customers' label as long as you can purchase enough quantity in a time.
MODEL | NES-15-5 | NES-15-12 | NES-15-15 | NES-15-24 | NES-15-48 | |
OUTPUT | DC VOLTAGE | 5V | 12V | 15 | 24V | 48 |
RATED CURRENT | 3A | 1.3A | 1 | 0.7 | 0.35 | |
CURRENT RANGE | 0 ~ 3A | 0 ~ 1.3A | 0 ~ 1A | 0 ~ 0.7A | 0 ~ 0.35A | |
RATED POWER | 15W | 15.6W | 15W | 16.8W | 16.8W | |
RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | |
VOLTAGE ADJ. RANGE | 4.75 ~ 5.5V | 10.8 ~ 13.2V | 13.5~16.5V | 21.6 ~ 26.4V | 43.2~52.8 | |
VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
LINE REGULATION | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
LOAD REGULATION | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
SETUP, RISE TIME | 1000ms,30ms at full load | |||||
HOLD TIME | 100ms/230VAC 20ms/115VAC at full load | |||||
INPUT | VOLTAGE RANGE | 85~264VAC or120~370VDC | ||||
FREQUENCY RANGE | 47 ~ 63Hz | |||||
EFFICIENCY (Typ.) | 80% | 82% | 83% | 85% | 83% | |
AC CURRENT | 0.35A/115VAC 0.25A/230VAC | |||||
INRUSH CURRENT (max.) | COLD START 45A | |||||
LEAKAGE CURRENT | <3mA/240VAC | |||||
PROTECTION | OVERLOAD | Above 105% rated output power | ||||
Protection type : Constant current limiting, | ||||||
OVER VOLTAGE | 5.8~6.8V | 14~16V | 17~20V | 28~32V | 55~64V | |
Protection type :Shut off | ||||||
ENVIRONMENT | WORKING TEMP. | -20 ~ +60°C | ||||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
STORAGE TEMP., HUMIDITY | -30 ~ +85°C, 10 ~ 95% RH | |||||
TEMP. COEFFICIENT | ±0.02%/ (0 ~ 40°C) | |||||
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min | |||||
SAFETY & EMC | SAFETY STANDARDS | Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved | ||||
WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||||
EMC EMISSION & IMMUNITY | EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved | |||||
OTHERS | MTBF | 500K hrs min | ||||
DIMENSION | 78×51×28mm (L*W*H) | |||||
WEIGHT | 0.18KG | |||||
YUMO NES-15 15W 5/12/24/48V NES Series Efficient single switching power Switching Power Supply YUMO NES-15 15W 5/12/24/48V NES Series Efficient single switching power Switching Power Supply YUMO NES-15 15W 5/12/24/48V NES Series Efficient single switching power Switching Power Supply YUMO NES-15 15W 5/12/24/48V NES Series Efficient single switching power Switching Power Supply YUMO NES-15 15W 5/12/24/48V NES Series Efficient single
switching power Switching Power Supply YUMO NES-15 15W 5/12/24/48V NES Series Efficient single switching power Switching Power Supply YUMO NES-15 15W 5/12/24/48V NES Series Efficient single switching power Switching Power Supply YUMO NES-15 15W 5/12/24/48V NES Series Efficient single switching power Switching Power Supply YUMO NES-15 15W 5/12/24/48V NES Series Efficient single switching power Switching Power Supply YUMO NES-15 15W 5/12/24/48V NES Series Efficient single switching power Switching Power Supply YUMO NES-15 15W 5/12/24/48V NES Series Efficient single switching power Switching Power Supply YUMO NES-15 15W 5/12/24/48V NES Series Efficient single switching power Switching Power Supply YUMO NES-15 15W 5/12/24/48V NES Series Efficient single switching power
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
