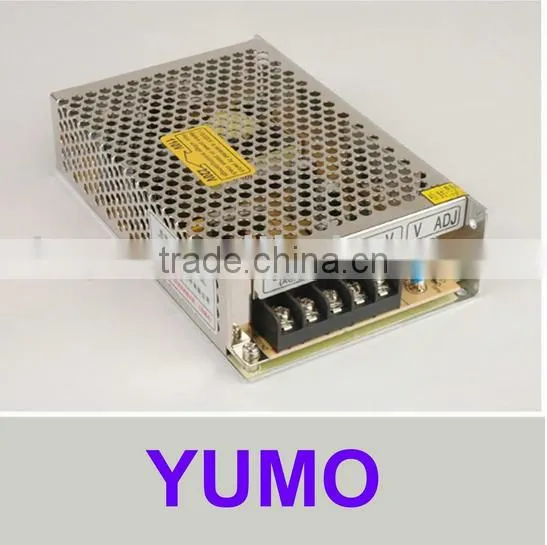

YUMO S-100F 100W Single phase output Switching Power Supply
switching power supply,switch power supply,DC power supply
Protection:Over load,over voltage,short circuit
Professional export
Model Specification | S-100F-5 | S-100F-7.5 | S-100F-12 | S-100F-15 | S-100F-24 | S-100-48 |
| DC output voltage | 5V | 7.5V | 12V | 15V | 24V | 48V |
| Output voltage error (Note2) | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Rated output current | 20A | 13.5A | 8.5A | 6.7A | 4.5A | 2.2A |
| Output current rage | 0-20A | 0-13.5A | 0-8.5A | 0-6.7A | 0-4.5A | 0-2.2A |
| Wave and noise(Note3) | 100mVp-p | 125mVp-p | 125mVp-p | 125mVp-p | 150mVp-p | 150mVp-p |
| Inlet stability(Note4) | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability(Note5) | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| DC output power | 100W | 101W | 102W | 100.5W | 108W | 105.6W |
| Efficiency | 76% | 76% | 80% | 81% | 83% | 84% |
| Adjustable range for DC voltage | +10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | 85132VAC/176264VAC SELECTED BY JUMPER OR SWTCH 4763Hz;255370VDC | |||||
| Input current | 2.4A/115V 1.2A/230V | |||||
| AC impulse current | Cold-start current 35A/115V 60A/230V | |||||
| Leakage current | <1mA/240VAC | |||||
| Overload protection | 105%150% TypePULSING HICCUP SHUTDOWN Reset. auto recovery | |||||
| Over-voltage protection | 115%135% | |||||
| High-temperature protection | ||||||
| Temperature coefficient | ±0.03%(050) | |||||
| Setup rise hold up time | 1ms,30ms,15ms | |||||
| Vibration | 10500Hz,2G 10min./1cycle,Period for 60min,Each axes | |||||
| Withstand voltage | Input and output interval3KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC | |||||
| Isolation resistance | Input and output interval,Input and enclosure,Output and enclosure500VAC/100M Ohms | |||||
| Working temperature and humidity | -10+60,20%90%RH | |||||
| Store temperature and humidity | -20+85,10%95RH | |||||
| Overall dimension | 199*98*38mm | |||||
| Weight | 0.65Kgs | |||||
| Safety standards | Meet UL1012,TUV EN60950 | |||||
| EMC standards | Meet IEC801-2,3,4,IEC555-2 | |||||
| Note:1.The testing condition for the parameter above is:230VAC input, rated load,25 70%Rh,Humidity 2.Error,include the setting error, line stability and load stability.(Note:5) 3.Wave test:adoptingA12double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting 4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage. 5.Load stability test: The load is from 0% to 100%,others 60%. 6.C2311must be knocked down. | ||||||
YUMO S-100F 100W Single phase output Switching Power Supply YUMO S-100F 100W Single phase output Switching Power Supply YUMO S-100F 100W Single phase output Switching Power Supply YUMO S-100F 100W Single phase output Switching Power Supply YUMO S-100F 100W Single phase output Switching Power Supply
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
