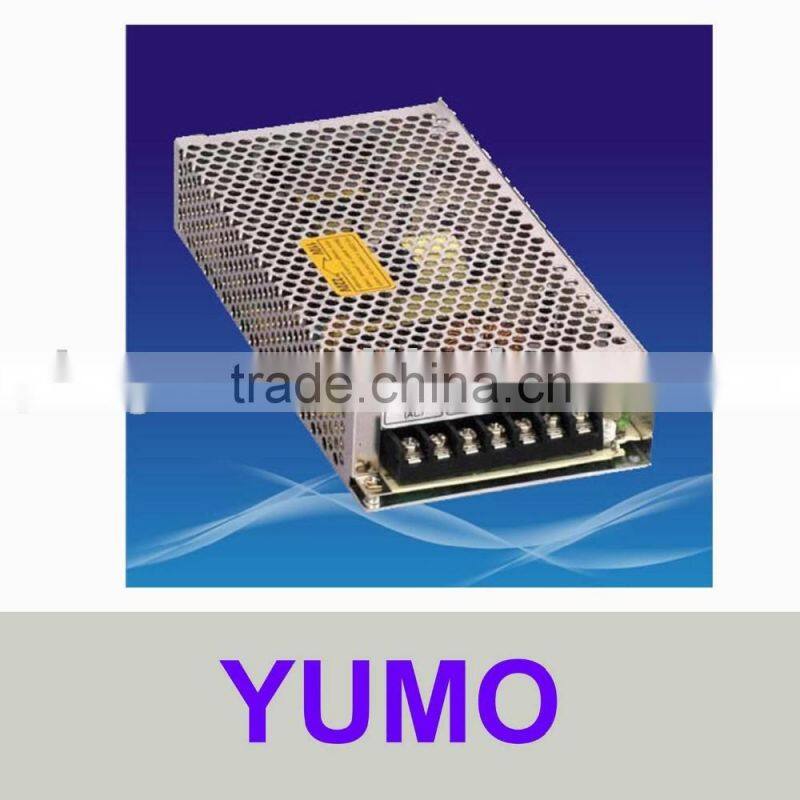

S-100 100W Single phase output Switching Power Supply constant voltage supply
switching power supply,switch power supply,DC power supply
Protection:Over load,over voltage,short circuit
Professional export
Model Specification | S-100-3 | S-100-5 | S-100-7-5 | S-100-12 | S-100-15 | S-100-24 | S-100-27 | S-100-48 |
| DC output voltage | 3V | 5V | 7.5V | 12V | 15V | 24V | 27V | 48V |
| Output voltage error (Note2) | ±2% | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Rated output current | 20A | 20A | 13.6A | 8.5A | 6.7A | 4.5A | 3.7A | 2A |
| Output current rage | 0-20A | 0-20A | 0-13.6A | 0-8.5A | 0-6.7A | 0-4.5A | 0-3.7A | 0-2A |
| Wave and noise(Note3) | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet stability(Note4) | ±0.5% | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
| Load stability(Note5) | ±0.5% | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
| DC output power | 60W | 100W | 102W | 102W | 100.5W | 108W | 99.9W | 96W |
| Efficiency | 70% | 78% | 80% | 81% | 81% | 84% | 84% | 84% |
| Adjustable range for DC voltage | 2.85-3.3V | 4.75-5.5V | 6.75-8.25V | 10.8-13.2V | 13.5-16.5V | 21.6-26.4V | 26-32V | 43.2-52.8V |
| AC input voltage range | 85132VAC/180264VACselected by switch4763Hz;255-370VDC | |||||||
| Input current | 2.4A/115V 1.2A/230V | |||||||
| AC impulse current | Cold-start current 30A/115V 60A/230V | |||||||
| Leakage current | <1mA/240VAC | |||||||
| Overload protection | ||||||||
| Over-voltage protection | ||||||||
| High-temperature protection | ||||||||
| Temperature coefficient | ±0.03%(050) | |||||||
| Setup rise hold up time | 200ms,100ms,30ms | |||||||
| Vibration | 10500Hz,2G 10min./1cycle,Period for 60min,Each axes | |||||||
| Withstand voltage | Input and output interval1.5KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC | |||||||
| Isolation resistance | Input and output interval,Input and enclosure,Output and enclosure0500VAC/100M Ohms | |||||||
| Working temperature and humidity | -10+60,20%90%RH | |||||||
| Store temperature and humidity | -20+85,10%95RH | |||||||
| Overall dimension | 199*98*38mm | |||||||
| Weight | 0.5Kgs | |||||||
| Safety standards | Meet UL1012 | |||||||
| EMC standards | ||||||||
| Note:1.The testing condition for the parameter above is:230VAC input, rated load,25 70%Rh,Humidity 2.Error,include the setting error, line stability and load stability.(Note:5) 3.Wave test:adoptingA12double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting 4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage. 5.Load stability test: The load is from 0% to 100%,others 60%. 6.C2311must be knocked down. | ||||||||
S-100 100W Single phase output Switching Power Supply constant voltage supply S-100 100W Single phase output Switching Power Supply constant voltage supply S-100 100W Single phase output Switching Power Supply constant voltage supply ng power supply 5v 12v
