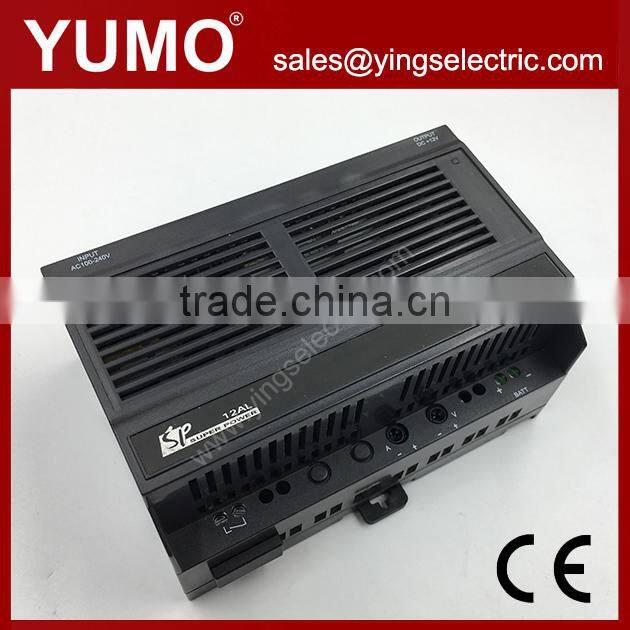

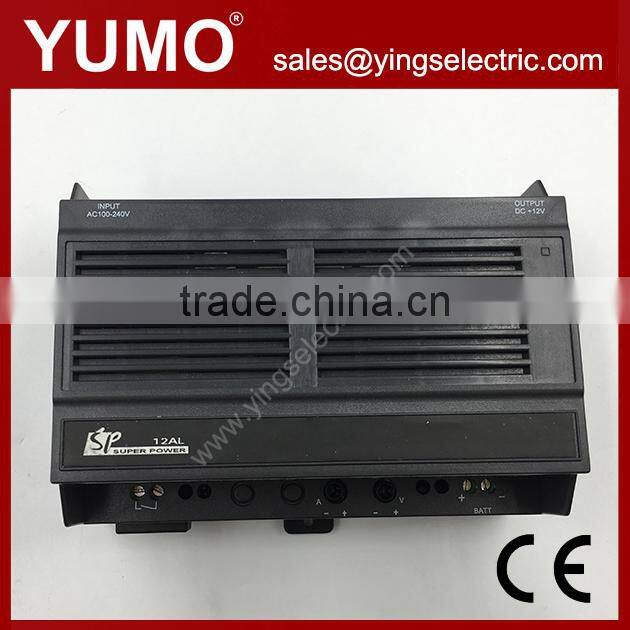

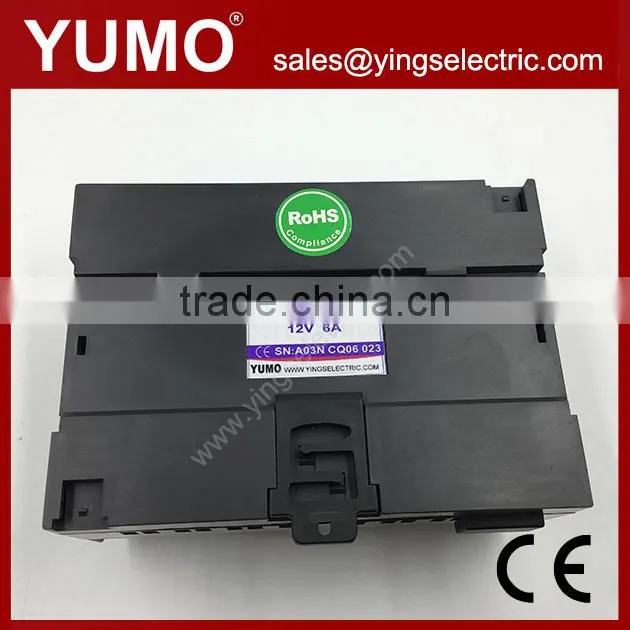

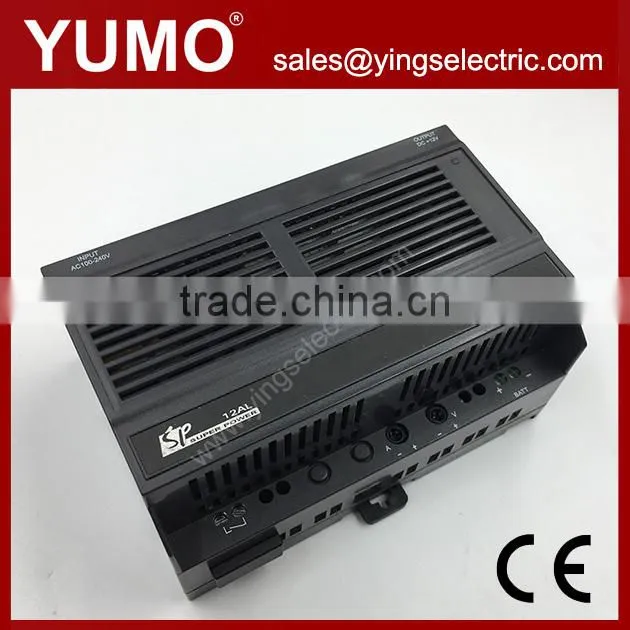

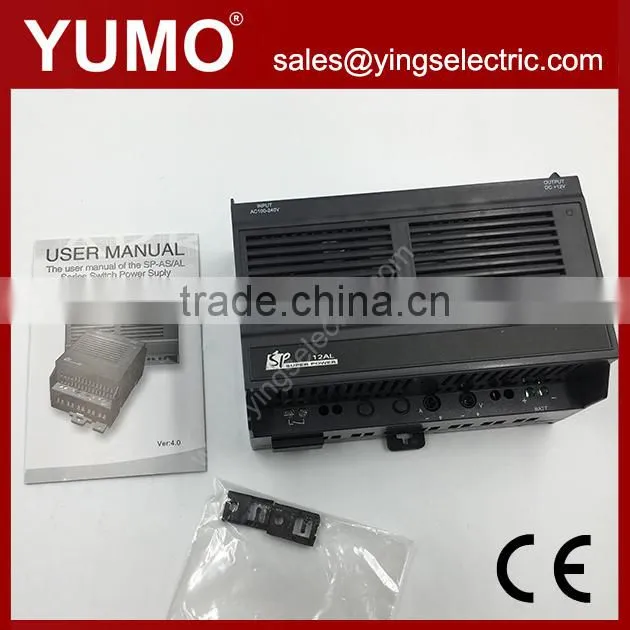

SP-12AL AC110-220V input,DC12V 6A output,power supply for plc
Switching power supply uninterrupted power supply for PLC SP-24AL SP series industrial switching power supply is especially designed for industrial equipment, which employ 35mm DIN guideway, with low ripple, wide range of input voltage from AC 100-240VAC,and can output DC5V,12V,24V, 48V.It provides UPS uninterrupted power supply and soft start. Remote controlling function is also provided with. APPLICATION |
The switch power supply, with compact size, light weight (250G) and high efficiency, whose voltage and current can be matched, has current protection and provides with UPS support, soft start and remote control functions. It is widely used in computers, terminal equipments, communication equipment and almost all the electronic equipments. It is now a power supply that electronics information industry cannot live without it. |
Features |
Internal-Installed EMI filter condenser Input frequency: 47-63HZ Output voltage stability:+-0.5% Can be used for DIN installation (EN50022-35) All range voltage input (85-264VAC,120V-370VDC) Output voltage inching range (-5%~+10%,adjusting potentiometer V) Have the function of soft-start (to limit the peak current of start and the pressure of the voltage to the components) The current of the load can be roughly adjusted (means the maximum protective current of the load, adjusting potentiometer A) Have the short circuit and over-load protection. (Over-load protection: 105%-135%) Power supply output with the LED indicatornsulation and voltage endurance: >1.5KV
Over-heat protection function (The main control CMOS chip stops output when the temperature is beyond 135 degree and the output will renew automatically when the temperature drops to certain level.) |
Technical data |
Type | SP-05AS | SP-12AS | SP-24AS | SP-05AL | SP-12AL | SP-24AL |
Voltage (V) | 5 | 12 | 24 | 5 | 12 | 24 |
Current (A) | 7 | 3 | 1.5 | 14 | 6 | 3 |
Dimensions (WXHXD) | 71mm * 106mm * 65mm | 126mm * 106mm * 65mm | ||||
Input Voltage | 85-265VAC | |||||
Supply frequency | 47-63Hz | |||||
Output voltage tolerance | 1% | |||||
Max. Ripple/Noise | <100mVpp | |||||
Operation Temperature | -25 to 70 | |||||
Efficiency | >80% | |||||
5mm DIN SP-12AL AC110-220V input,DC12V 6A output,power supply for plcSP-12AL AC110-220V input,DC12V 6A output,power supply for plcSP-12AL AC110-220V input,DC12V 6A output,power supply for plcSP-12AL AC110-220V input,DC12V 6A out
put,power supply for plc
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Sky-pe: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
