MT4434TE 4.3 "FSTN 192 x 64 pixels 12 ~ 28 VDC Backlight white LED  touch screen panel HMI

Product Description



Display screen 4.3 "FSTN
Resolution 192 x 64 pixels (support 4 x 12 Chinese characters display)
Color monochrome
Brightness 97 cd/m2
Contrast potentiometer adjustment
Backlight white LED
Liquid crystal life of 25 + 2 C, 65 + 10%RH conditions for more than 50000 hours
Touch screen non touch
CPU 8 bit processor
Memory Flash ROM 64KB
Formula memory no
Real time clock (30PPM precision)
Function keys 19, can be freely defined (including 10 digital input button)

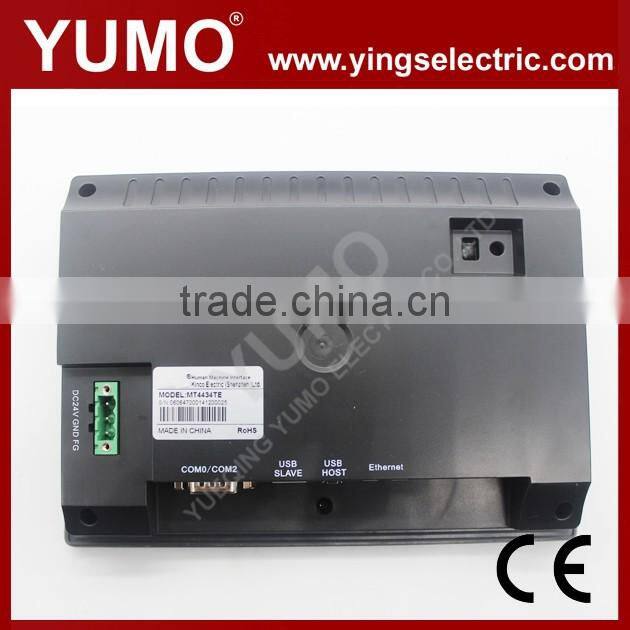

Communication port PC RS232 COM0: & RS485/422 PLC & RS232 PLC
EN61000-6-2:2005 EN61000-6-4:2007, CE
Use environment
Working power supply 12 ~ 28 VDC
Current consumption MAX150mA@24VDC
Anti interference test voltage 1500Vp-p, pulse period 1US, continuous 1s
Pressure test AC 500V 1 minutes
Insulation resistance over 10M ohm DC @500V
Shock test 10 ~ 25 Hz (X, Y, Z direction 2G/ 30 minutes)
Protection level IP65 (front panel)
Working environment temperature 0 ~ 50
Working environment humidity 20 ~ 90% RH (non condensing)
Storage temperature -20 C ~ 70
Shell material engineering plastics ABS+PC
Appearance size 175 * 90 * 26mm
Display size 101 * 36 mm
Mounting hole size 165 * 78 mm
Cooling mode natural air cooling
Weight 0.3 Kg



MT4434TE 4.3 "FSTN 192 x 64 pixels 12 ~ 28 VDC Backlight white LED touch screen panel HMIMT4434TE 4.3 "FSTN 192 x 64 pixels 12 ~ 28 VDC Backlight white LED touch screen panel HMIMT4434TE 4.3 "FSTN 192 x 64 pixels 12 ~ 28 VDC Backlight white LED touch screen panel HMIMT4434TE 4.3 "FSTN 192 x 64 pixels 12 ~ 28 VDC Backlight white LED touch screen panel HMIMT4434TE 4.3 "FSTN 192 x 64 pixels 12 ~ 28 VDC Backlight white LED touch screen panel HMIMT4434TE 4.3 "FSTN 192 x 64 pixels 12 ~ 28 VDC Backlight white LED touch screen panel HMI



MT4434TE 4.3 "FSTN 192 x 64 pixels 12 ~ 28 VDC Backlight white LED  touch screen panel HMIMT4434TE 4.3 "FSTN 192 x 64 pixels 12 ~ 28 VDC Backlight white LED  touch screen panel HMIMT4434TE 4.3 "FSTN 192 x 64 pixels 12 ~ 28 VDC Backlight white LED  touch screen panel HMIMT4434TE 4.3 "FSTN 192 x 64 pixels 12 ~ 28 VDC Backlight white LED  touch screen panel HMI
