YUMO SH-300 OEM CE Rohs approved PLC Text Panel HMI
Text Panel,LED panel,operational panel,text display
SH-300 Text Panel is a new product and being a small Human-Machine Interface,it mainly is used to be connected with PLC or other intelligent controllers with COM port communication function. It can monitor, set and modify the data of the register or the status of the relay inside the PLC by configuring text, indicator, function key, bar graphs and trend graphics elements etc. SH-300 is Monochrome(yellow-green) 4.3"STN-LCD with multi-language display, user-defined system prompting information and setting parameter, The project development software SH300 built on WINDOWS platform, with friendly operation interface, easy to learn. Due to its high performance and yet easy operation the SH300 offers you highly efficient economies for almost any application.
|
The project development software SH300, built on WINDOWS platform, being able to edit |
|
|
several monitoring screens and support multi-format graph |
|
|
The communication protocols will be downloaded into SH-300 Text panel together with the |
|
|
project files, so it is unnecessary to edit the communication program in PLC separately |
|
|
It can be connected with several PLC. in the begining it supports the leading PLC series |
|
|
Mitsubishi, Omron, Siemens, Panasonic, Delta and Vigor etc. |
|
|
With password protecting function |
|
|
With alarm list function, real-time displaying the alarm information line by line |
|
|

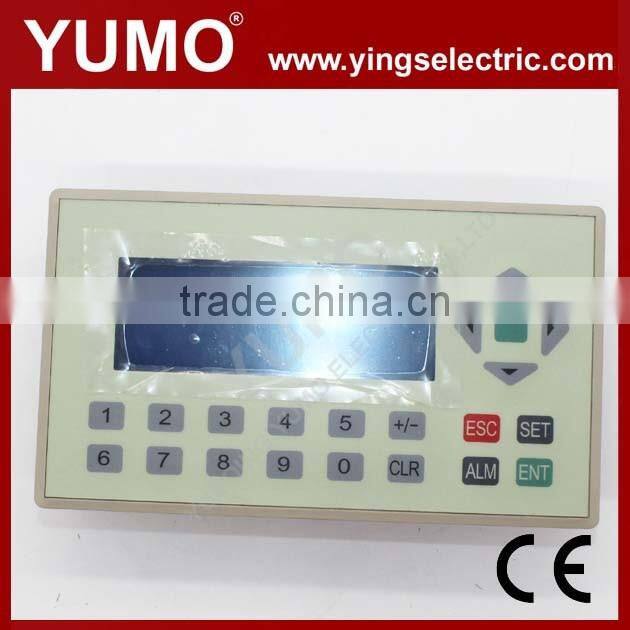

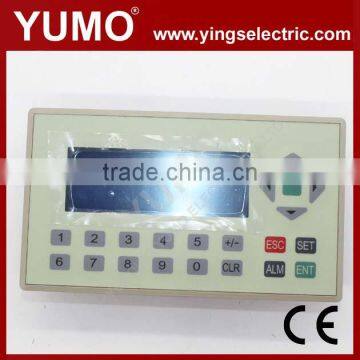

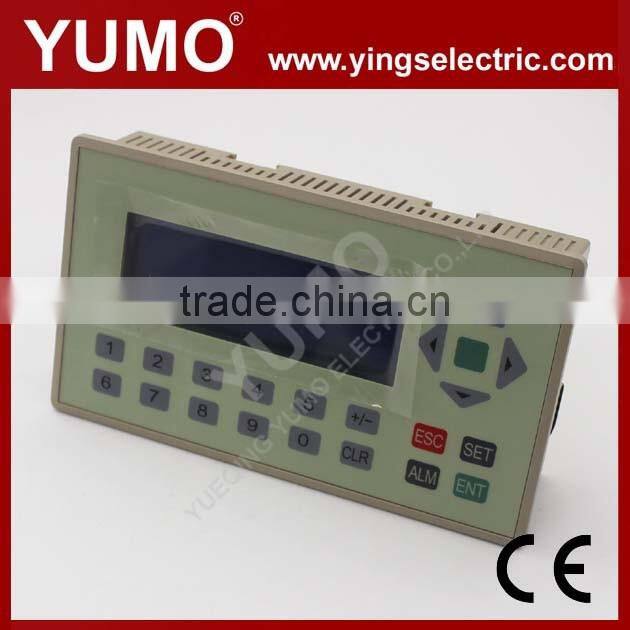

Having 14 keys, which can be defined as function keys, being easily operated, replacing |
|
|
some mechanical keys on the control cabinet, with the number key function |
|
|

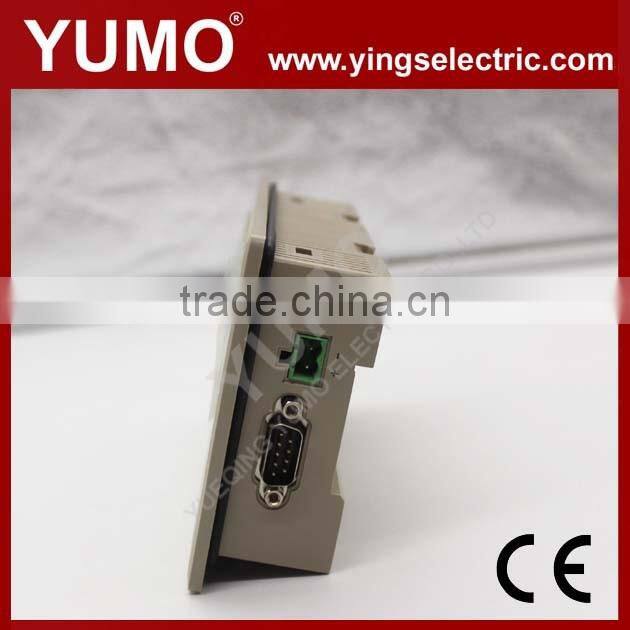

Supporting several kinds of communication ports: RS232/RS422/RS485 |
|
|
STN-LCD display with backlight, displaying 24 characters×4 rows |
|
|
With multi-language displaying function, with user-defined system prompting information, |
|
|
being convenient for different demands |
|
|
The front panel being up to IP65 Protection Level, waterproof, and greaseproof |
|
| ||
|
Hardware specification Display screen 4.3"STN - LCD Display screen Resolution 192 x 64 pixels LCM life With 25±2,65±10% RH over 50000 hours Brightness 60cd/m2 Color Monochrome(yellow-green) Contrast Adjustable resistor Backlight Long life yellow-green LED Memory 110KB Flash ROM Communication Port PC RS232& PLC RS485/422 & PLC RS232 Function button 14 freely configurable keys Allowable power disruption ≤20ms Frame Dimension 171.8×98.8×38.6mm Display Dimension 96×32mm Installation hole Dimension 165×85mm Cooling Method Natural air cooling Weight 260g Electric specification Rated voltage 1224VDC±10%<150mA @ 24VDC Withstanding voltage test 500V AC 1minute(between signal and GND) Insulation resistance Over 10M ohm @ DC500Vbetween signal and GND Ambient Requirement Operation ambient temperature -1060 Operation ambient humidity 20~90%no condensation Storage temperature -2070 Anti-jamming test Voltage 1500Vp-p,pulse period 1us,continuing 1s Vibration resistance 10~25Hz(2G for 30 min, in any of X,Y,Z axis) Degree of protection IP65the front panel
| ||
| ||
SH300 offers a wide-open system information menu. User can redefine the system information menu | ||
freely .The menu can be edited with other language. meanwhile you can change the position of the text | ||
according to your demand. User-defined window shows as follows: | ||
|
| ||
| ||
SH300 offers wide-open multi-language menu. which makes it possible that you can define the system | ||
information menu roundly. you can edit the system information menu with many country languages for | ||
example ChineseEnglishJapaneseKoreanFrench German Spanish etc. | ||
The SH300 LangEditor is a very characteristic language editor, it supports user to edit the menu with | ||
many country languages. The LangEditor software window shows as foiiows: | ||
