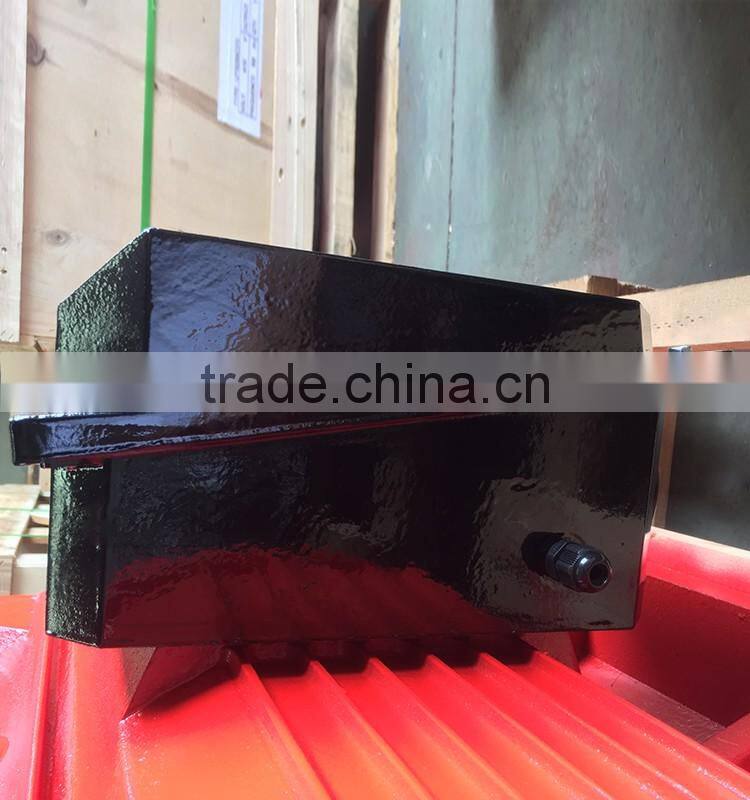

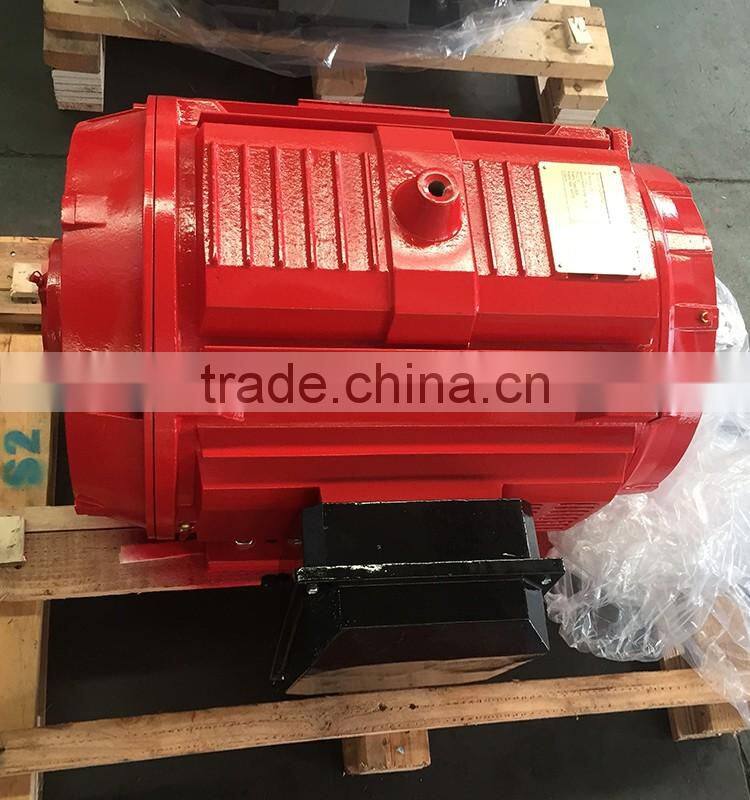

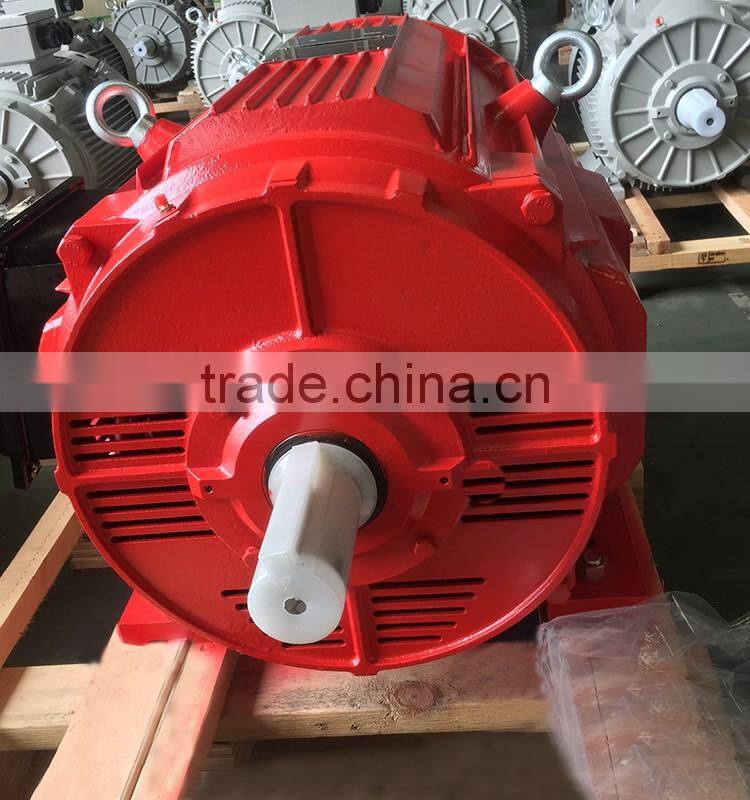

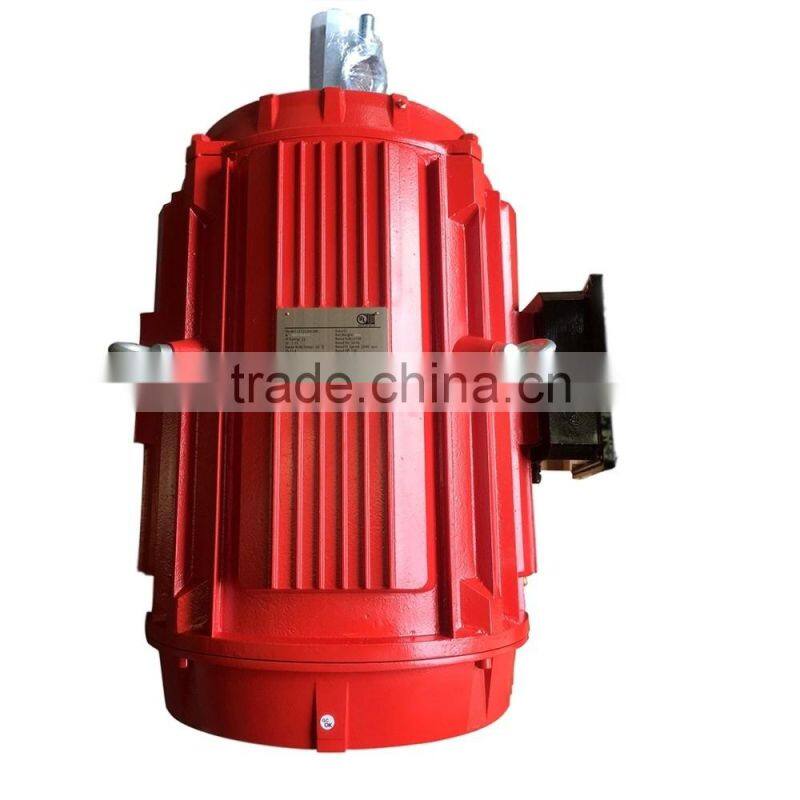

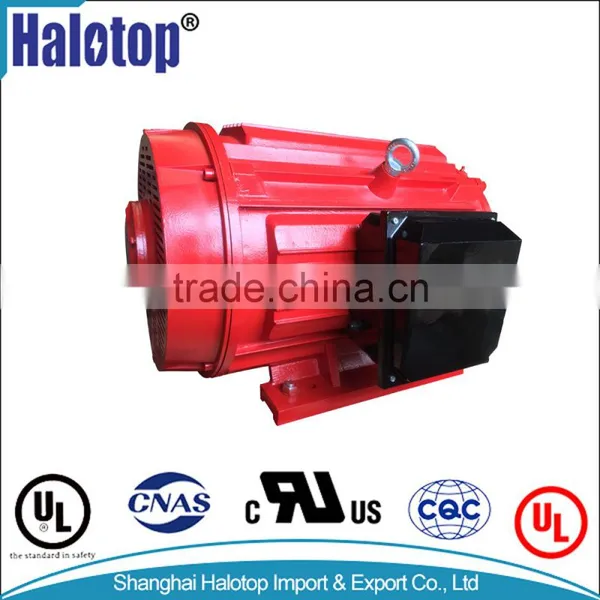

UL LISTED NEMA ODP STANDARD 150HP IE1 HIGH-POWER MOTOR (TDC445TS150U2B)
| TDC Serie Fire Pump Motors' Main Performance Parameters(NEMA 415V 50HZ) | ||||||||||||
| Serial NO. |
Model NO. |
Volts | Outputs (HP) |
Hz/DC |
Locked 415V |
Locked torque mutiple (standard) |
Maximum torque multiple (standard) |
Minimum torque multiple (standard) |
Sercice Factor |
INS Class |
RPM | The Test Environment Temperature |
| 1 | TDC254T15U2B | 380-415V | 15 | 50 | 141 | 130 | 200 | 100 | 1.15 | F | 2920 | 50℃ |
| 2 | TDC256T20U2B | 380-415V | 20 | 50 | 177 | 130 | 200 | 100 | 1.15 | F | 2920 | 50℃ |
| 3 | TDC284TS25U2B | 380-415V | 25 | 50 | 222 | 130 | 200 | 100 | 1.15 | F | 2930 | 50℃ |
| 4 | TDC286TS30U2B | 380-415V | 30 | 50 | 164 | 130 | 200 | 100 | 1.15 | F | 2930 | 50℃ |
| 5 | TDC324TS40U2B | 380-415V | 40 | 50 | 354 | 125 | 200 | 100 | 1.15 | F | 2930 | 50℃ |
| 6 | TDC326TS50U2B | 380-415V | 50 | 50 | 441 | 120 | 200 | 100 | 1.15 | F | 2930 | 50℃ |
| 7 | TDC364TS60U2B | 380-415V | 60 | 50 | 529 | 120 | 200 | 100 | 1.15 | F | 2930 | 50℃ |
| 8 | TDC365TS75U2B | 380-415V | 75 | 50 | 661 | 105 | 200 | 95 | 1.15 | F | 2940 | 50℃ |
| 9 | TDC405TS100U2B | 380-415V | 100 | 50 | 883 | 105 | 200 | 95 | 1.15 | F | 2940 | 50℃ |
| 10 | TDC444TS125U2B | 380-415V | 125 | 50 | 1105 | 100 | 200 | 90 | 1.15 | F | 2940 | 50℃ |
| 11 | TDC445TS150U2B | 380-415V | 150 | 50 | 1319 | 100 | 200 | 90 | 1.15 | F | 2940 | 50℃ |
