Home > Industrial Equipment & Components > Engine & Part > Engine > 58HP Diesel Engine for Fire Fighting With Radiator 490

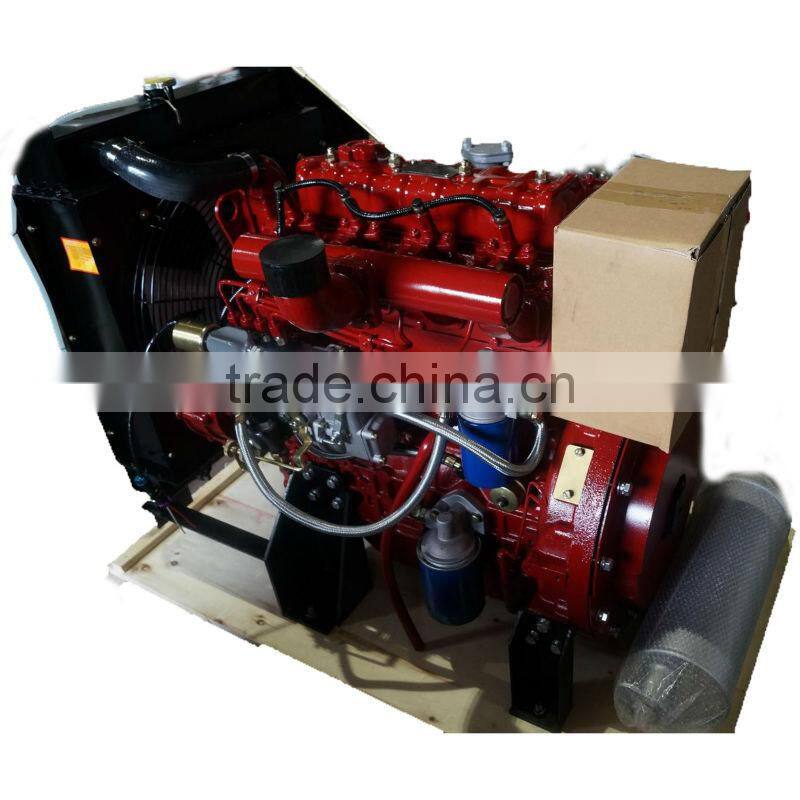

58HP Diesel Engine for Fire Fighting With Radiator 490
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Fire fighting diesel engine and system
Fuel:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
45HP New Fire Fighting Diesel Engine With Radiator 485NegotiableMOQ: 1 Set -
45HP New Fire Fighting Training Equipment With Radiator 485NegotiableMOQ: 1 Set
-
4 Cylinders Diesel Engine Fire Fighting Equipment With Radiator 4100NegotiableMOQ: 1 Set
-
Diesel Engine/ Water Cooled Engine/fire Fighting EngineNegotiableMOQ: 2 Sets
-
Fire Fighting Pump Set/ Fire Fighting Pump / Fire Fighting EquipmentUS$ 2,000 - 6,000MOQ: 1 Set
Condition
New
Usage
Other, Fire fighting diesel engine and system
Fuel
Diesel
Stroke
4 Stroke
Cylinder
Multi-cylinder
Cold Style
Other, Water-cooled
Start
Electric Start
Place of Origin
Jiangsu, China
Brand Name
HALOTOP
Model Number
490
Dimension(L*W*H)
113X68X97 cm
Weight
360KGS
Warranty
One year near our servise station in Dubai
After-sales Service Provided
Overseas service center available
Specifications
58HP diesel engine for fire fighting with radiator 490with radiator, air fliter,muffler,solenoid valve.
58HP diesel engine for fire fighting with radiator 490
diesel engine 58HP / 58HP fire fighting equipment / diesel engine forfire fighting
Product Description
| RADIATOR SERIES FIRE FIGHTING EQUIPMENT | ||||||
| Engine Model | 380 | 480 | 485 | 490 | 4100 | |
| Type | Vertical,water-cooling 4-stroke,direct-injector | |||||
| Aspiration | Nature | |||||
| Number of Cylinders | 4 | 4 | 4 | 4 | 4 | |
| Bore*Storke(mm) | 80*90 | 85*90 | 85*95 | 90*105 | 100*118 | |
| Compression Ratio | 18:01 | 18:01 | 18:01 | 18:01 | 18:01 | |
| Total Displacement(L) | 1.357 | 1.809 | 2.156 | 2.67 | 3.705 | |
| Rated Power | KW/HP | 20/27 | 27.8/37 | 22.5/45 | 42/58 | 56/75 |
| Rated Speed | r/min | 3000 | 3000 | 3000 | 3000 | 3000 |
| Max.torque | N.m | ≥72.6 | 99.8 | ≥118.2 | ≥149.7 | ≥193 |
| Fuel Consumption | g/kW.h | ≤242 | ≤241 | ≤241 | ≤258 | ≤238 |
| Radiator | RD480 | RD480 | RD485 | RD490 | RD4100 | |
| Rotating Direction at Output End | Counter-clockwise | |||||
| Lubrication Oil | 15W40 | |||||
| Lubrication Oil Content | L | 4.5 | 6 | 6.5 | 7 | 9 |
| Lubrication Method | Pressure and splash | |||||
| Starting Method | Electric | |||||
| PTO Type | Option:1.Shaft2.Coupling3.Drive Plate | |||||
| Net Mass | kg | 250 | 300 | 320 | 360 | 420 |
