Home > Products > Fire fighting equipment > 45HP New Fire Fighting Diesel Engine With Radiator 485

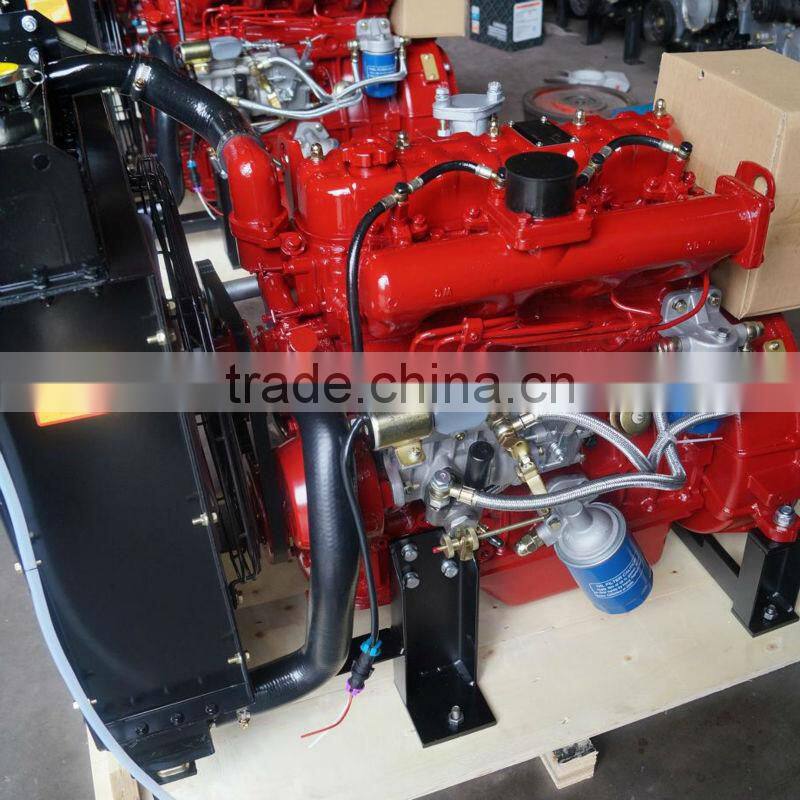

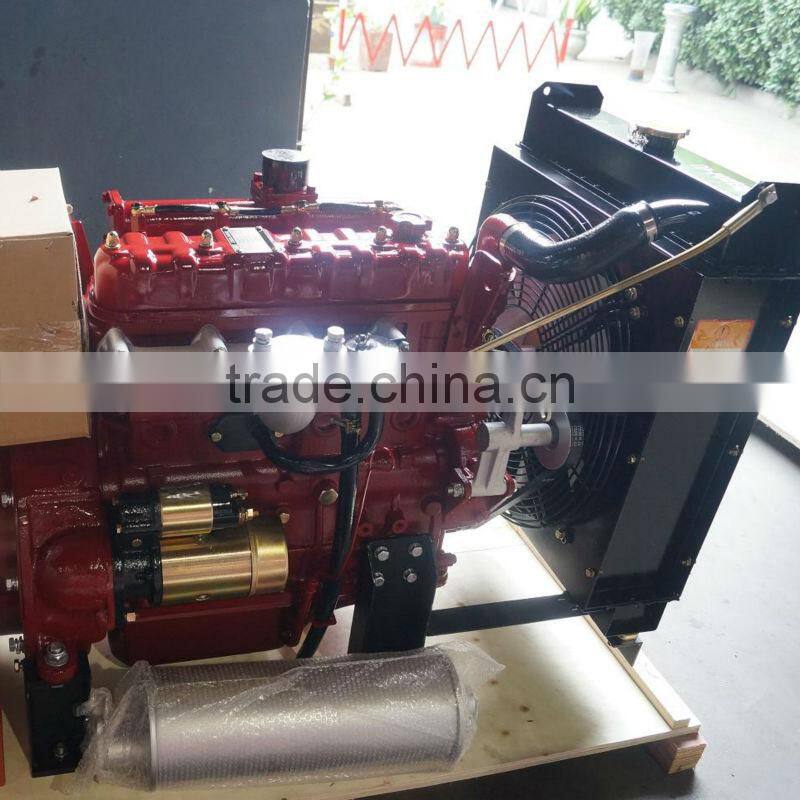

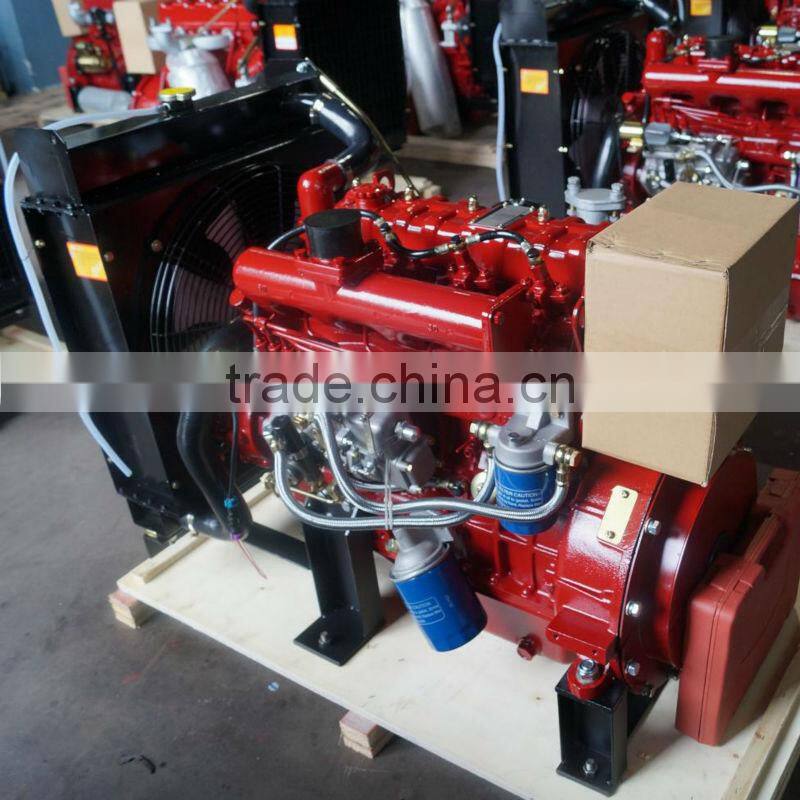

45HP New Fire Fighting Diesel Engine With Radiator 485
Negotiable
/ Set
1 Set(Min. Order)
- shanghai port
- T/T
You May Like
-
45HP New Fire Fighting Training Equipment With Radiator 485
-
4 Cylinders Diesel Engine Fire Fighting Equipment With Radiator 4100
-
Diesel Engine/ Water Cooled Engine/fire Fighting Engine
-
Fire Fighting Pump Set/ Fire Fighting Pump / Fire Fighting Equipment
-
Fire Fighting Engine FOR WATER PUMP /Diesel Engine for Fire Fighting Pump/ Diesel Engine
-
Fire Fighting Equipment/4 Cylinder Diesel Engine/engine
Product Details
| Condition | New | Usage | Other, Fire fighting diesel engine and system | |
| Fuel | Diesel | Stroke | 4 Stroke | |
| Cylinder | Multi-cylinder | Cold Style | Other, Water-cooled | |
| Start | Electric Start | Place of Origin | Jiangsu, China | |
| Brand Name | HALOTOP | Model Number | 485 | |
| Dimension(L*W*H) | 113X68X97 cm | Weight | 320KGS | |
| Warranty | One year near our servise station in Dubai | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
45HP fire fighting diesel engine with radiator 485with radiator, air fliter,muffler,solenoid valve.
45HP new fire fighting diesel engine with radiator 485
diesel engine 45HP / fire fighting equipment / new fire fighting diesel engine
Product Description
| RADIATOR SERIES FIRE FIGHTING EQUIPMENT | ||||||
| Engine Model | 380 | 480 | 485 | 490 | 4100 | |
| Type | Vertical,water-cooling 4-stroke,direct-injector | |||||
| Aspiration | Nature | |||||
| Number of Cylinders | 4 | 4 | 4 | 4 | 4 | |
| Bore*Storke(mm) | 80*90 | 85*90 | 85*95 | 90*105 | 100*118 | |
| Compression Ratio | 18:01 | 18:01 | 18:01 | 18:01 | 18:01 | |
| Total Displacement(L) | 1.357 | 1.809 | 2.156 | 2.67 | 3.705 | |
| Rated Power | KW/HP | 20/27 | 27.8/37 | 22.5/45 | 42/58 | 56/75 |
| Rated Speed | r/min | 3000 | 3000 | 3000 | 3000 | 3000 |
| Max.torque | N.m | ≥72.6 | 99.8 | ≥118.2 | ≥149.7 | ≥193 |
| Fuel Consumption | g/kW.h | ≤242 | ≤241 | ≤241 | ≤258 | ≤238 |
| Radiator | RD480 | RD480 | RD485 | RD490 | RD4100 | |
| Rotating Direction at Output End | Counter-clockwise | |||||
| Lubrication Oil | 15W40 | |||||
| Lubrication Oil Content | L | 4.5 | 6 | 6.5 | 7 | 9 |
| Lubrication Method | Pressure and splash | |||||
| Starting Method | Electric | |||||
| PTO Type | Option:1.Shaft2.Coupling3.Drive Plate | |||||
| Net Mass | kg | 250 | 300 | 320 | 360 | 420 |
