45HP new fire fighting training equipment with radiator 485

Name: 45HP new fire fighting training equipment with radiator 485
Brand: HALOTOP
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Condition:	New	Usage:	Other, Fire fighting diesel engine and system	Fuel:	Diesel
Stroke:	4 Stroke	Cylinder:	Multi-cylinder	Cold Style:	Other, Water-cooled
Start:	Electric Start	Place of Origin:	Jiangsu, China	Brand Name:	HALOTOP
Model Number:	485	Dimension(LWH):	113X68X97 cm	Weight:	320KGS
Warranty:	One year near our servise station in Dubai	After-sales Service Provided:	Overseas service center available

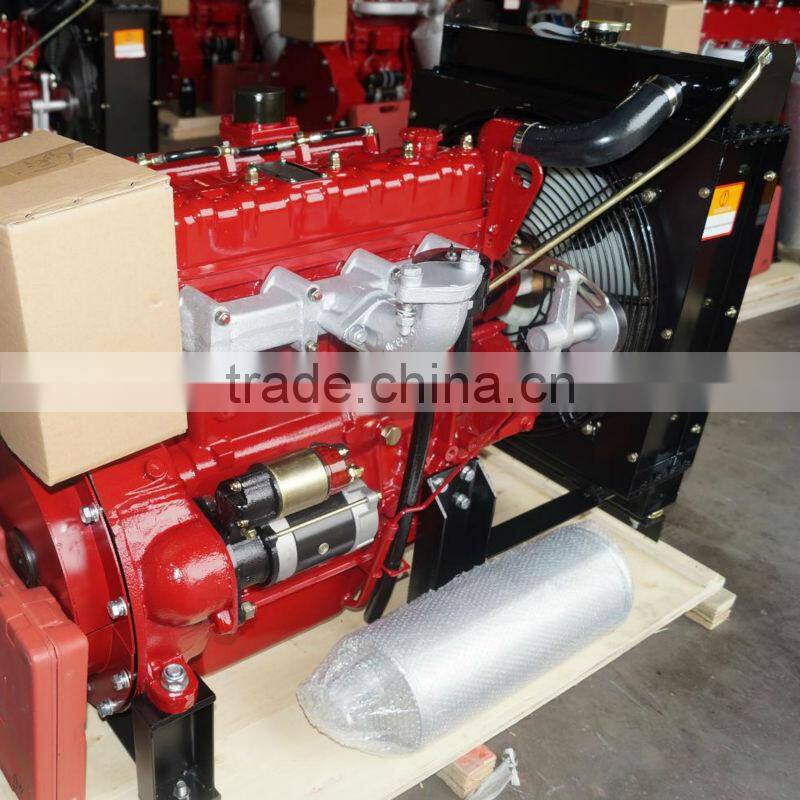

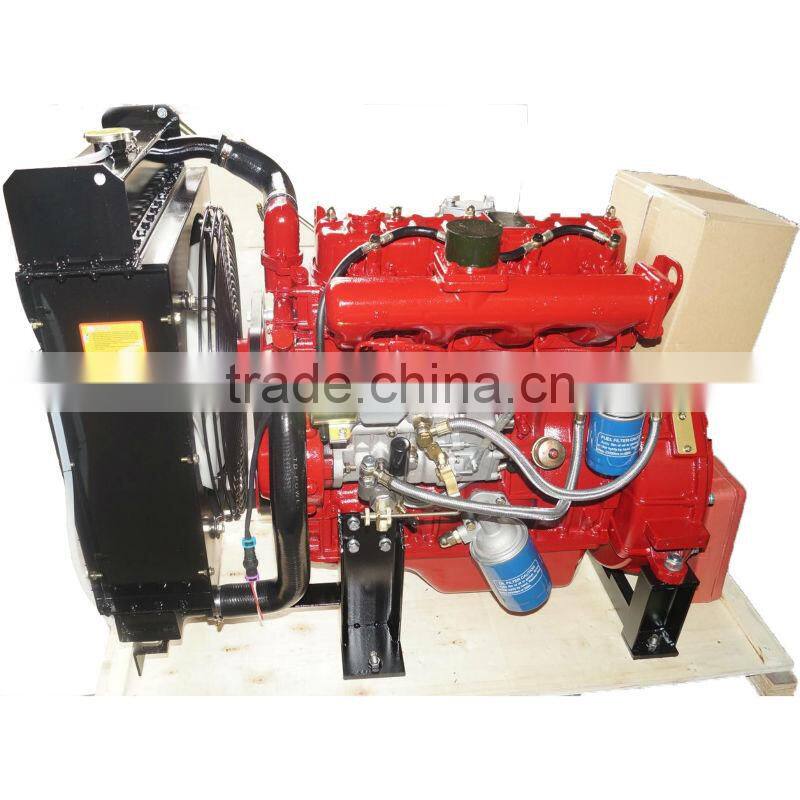

45HP new fire fighting training equipment with radiator 485
with radiator, air fliter,muffler,solenoid valve.

45HP new fire fighting training equipment with radiator 485

ul fire fighting equipment / fire fighting equipment / fire fighting training equipment

Product Description

RADIATOR SERIES FIRE FIGHTING EQUIPMENT
Engine Model		380	480	485	490	4100
Type		Vertical,water-cooling 4-stroke,direct-injector
Aspiration		Nature
Number of Cylinders		4	4	4	4	4
Bore*Storke(mm)		80*90	85*90	85*95	90*105	100*118
Compression Ratio		18:01	18:01	18:01	18:01	18:01
Total Displacement(L)		1.357	1.809	2.156	2.67	3.705
Rated Power	KW/HP	20/27	27.8/37	22.5/45	42/58	56/75
Rated Speed	r/min	3000	3000	3000	3000	3000
Max.torque	N.m	≥72.6	99.8	≥118.2	≥149.7	≥193
Fuel Consumption	g/kW.h	≤242	≤241	≤241	≤258	≤238
Radiator		RD480	RD480	RD485	RD490	RD4100
Rotating Direction at Output End		Counter-clockwise
Lubrication Oil		15W40
Lubrication Oil Content	L	4.5	6	6.5	7	9
Lubrication Method		Pressure and splash
Starting Method		Electric
PTO Type		Option:1.Shaft2.Coupling3.Drive Plate
Net Mass	kg	250	300	320	360	420
