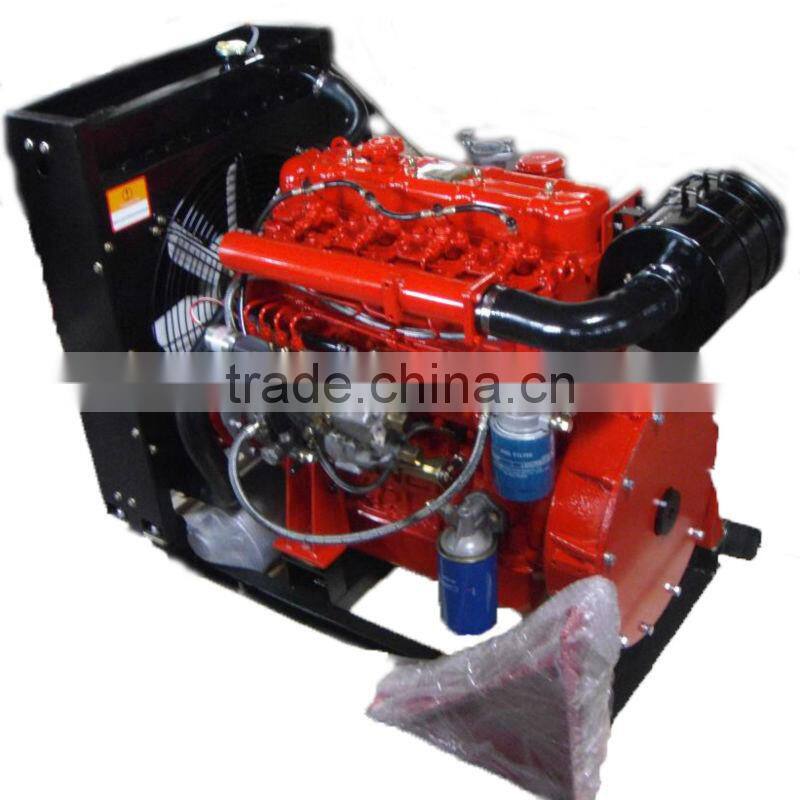

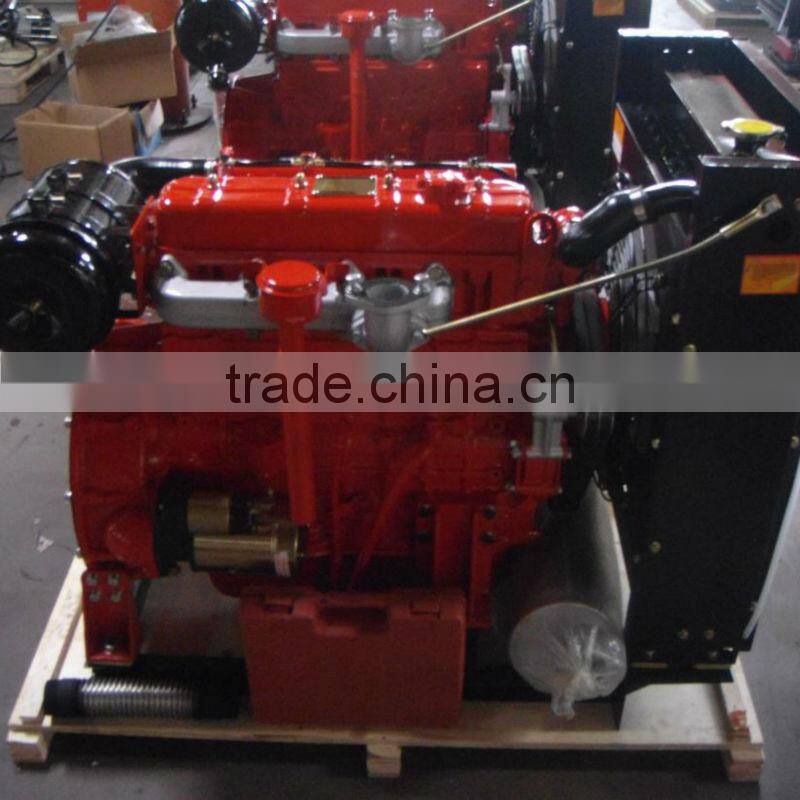

105HP Fire Fighting Diesel Engine With Radiator 4108
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Fire fighting diesel engine and system
Fuel:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
130HP Fire Fighting Diesel Engine With Radiator 6102BQNegotiableMOQ: 1 Set -
170HP Fire Fighting Eqpipment Diesel Engine With Radiator 6102BZSNegotiableMOQ: 1 Set
-
3 Cylinders Fire Fighting Equipment With Radiator 380 SupplierNegotiableMOQ: 1 Set
-
4 Cylinders ul Diesel Engine for Fire Fighting Equipment With Radiator 480NegotiableMOQ: 1 Set
-
Fire Fighting Equipment With Radiator Manufacturers 6102BZSSNegotiableMOQ: 1 Set
Condition
New
Usage
Other, Fire fighting diesel engine and system
Fuel
Diesel
Stroke
4 Stroke
Cylinder
Multi-cylinder
Cold Style
Other, Water-cooled
Start
Electric Start
Place of Origin
Jiangsu, China
Brand Name
HALOTOP
Model Number
4108
Dimension(L*W*H)
120X76X110 cm
Weight
480 KGS
Warranty
One year near our servise station in Dubai
After-sales Service Provided
Overseas service center available
Specifications
105HP fire fighting diesel engine with radiator 4108with radiator, air fliter,muffler,solenoid valve.
105HP fire fighting diesel engine with radiator 4108
diesel engine 105HP / 4108 fire fighting equipment / fire fighting diesel engine
Product Description
| RADIATOR SERIES FIRE FIGHTING EQUIPMENT | |||||
| Engine Model | 4108 | 4105T | 6102BQ | 6102BZS | |
| Type | Vertical,water-cooling 4-stroke,direct-injector | ||||
| Aspiration | Nature | Turbo-charged | |||
| Number of Cylinders | 4 | 4 | 6 | 6 | |
| Bore*Storke(mm) | 108*118 | 105*118 | 102*118 | 102*118 | |
| Compression Ratio | 17.5:1 | 17.5:1 | 17:01 | 17:01 | |
| Total Displacement(L) | 4.322 | 4.085 | 5.78 | 5.78 | |
| Rated Power | KW/HP | 76/105 | 90/122 | 95/130 | 125/170 |
| Rated Speed | r/min | 3000 | 3000 | 3000 | 3000 |
| Max.torque | N.m | ≥266 | ≥315 | ≥332.6 | ≥438 |
| Fuel Consumption | g/kW.h | ≤238 | ≤238 | ≤205 | ≤205 |
| Radiator | RD4108 | RD4105T | RD6102 | RD6102 | |
| Rotating Direction at Output End | Counter-clockwise | ||||
| Lubrication Oil | 15W40 | ||||
| Lubrication Oil Content | L | 11 | 11 | 13 | 13 |
| Lubrication Method | Pressure and splash | ||||
| Starting Method | Electric | ||||
| PTO Type | Option:1.Shaft2.Coupling3.Drive Plate | ||||
| Net Mass | kg | 480 | 500 | 650 | 720 |
