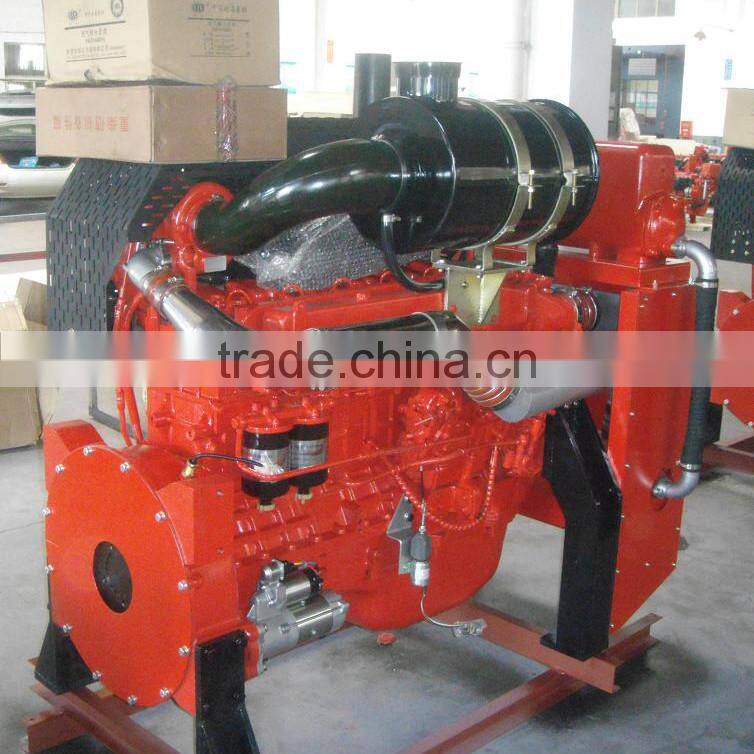

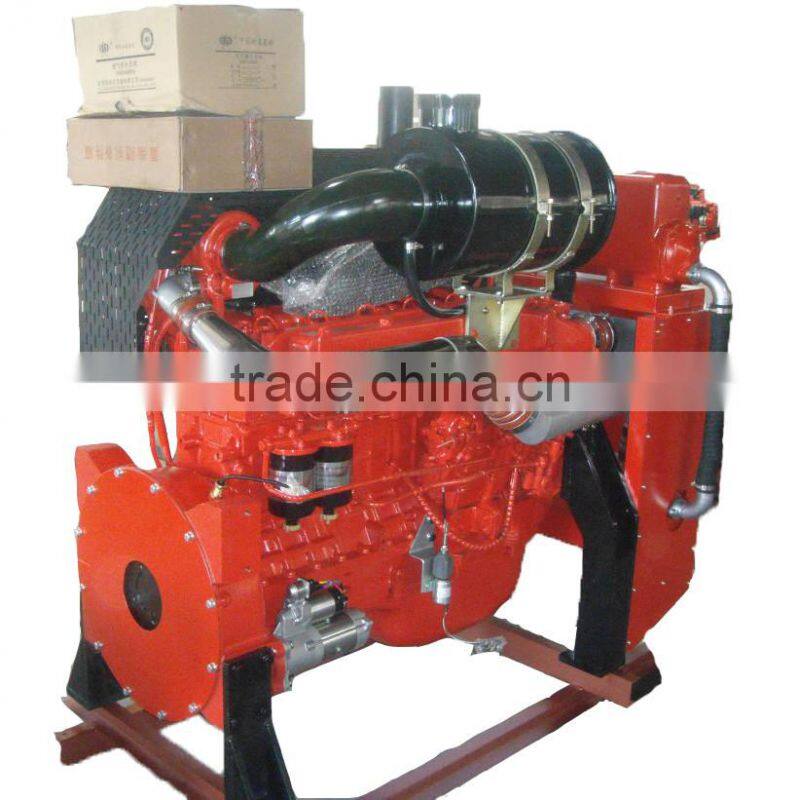

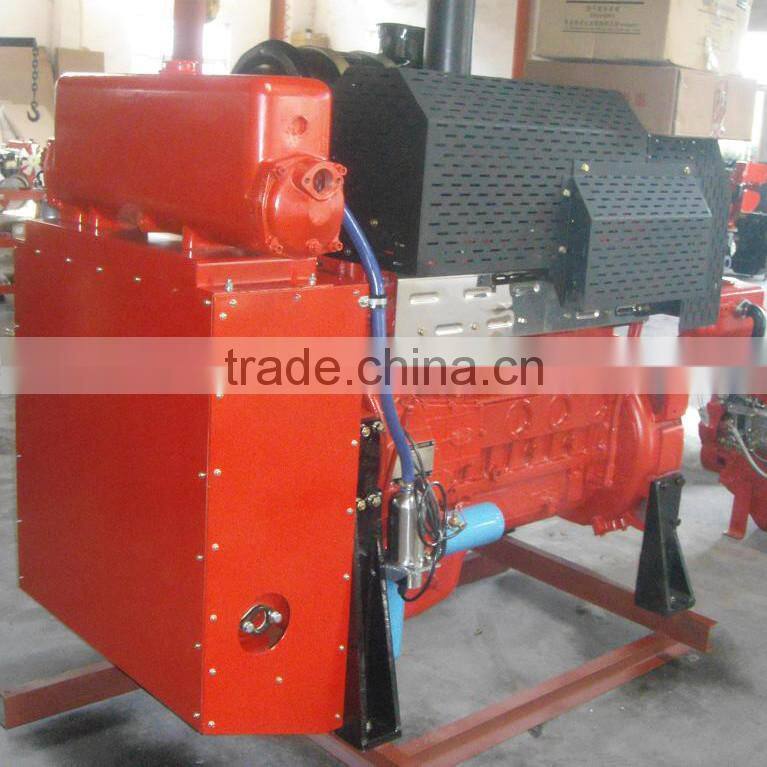

Fire Fighting Training Equipment With Heat Exchanger 6120TI
Specifications
Fire fighting training equipment with heat exchanger 6120TIwith shaft, heat exchanger , air fliter,muffler,solenoid valve.
Fire fighting training equipment with heat exchanger 6120TI
Fire fighting equipment / fire fighting equipment manufacturers / fire fighting equipment supplier
| HEAT EXCHANGER SERIES -DIESEL ENGINE | |||||||
| Engine Model | 380 | 485 | 4100 | 6102BQ | 6102BZSS | 6120TI | |
| Type | Vertical,water-cooling 4-stroke,direct-injector | ||||||
| Aspiration | Nature | Turbo-charged | |||||
| Number of Cylinders | 4 | 4 | 4 | 6 | 6 | 6 | |
| Bore*Storke(mm) | 80*90 | 85*90 | 100*118 | 102*118 | 102*118 | 120*130 | |
| Compression Ratio | 18:01 | 18:01 | 18:01 | 17:01 | 17:01 | 16.5:1 | |
| Total Displacement(L) | 1.357 | 2.156 | 3.705 | 5.78 | 5.78 | 8.82 | |
| Rated Power | KW/HP | 20/27 | 33.5/45 | 56/75 | 95/130 | 138/187 | 200/272 |
| Rated Speed | r/min | 3000 | 3000 | 3000 | 3000 | 3000 | 2200 |
| Max.torque | N.m | ≥72.6 | ≥118.2 | ≥193 | ≥332.6 | ≥483 | |
| Fuel Consumption | g/kW.h | ≤242 | ≤241 | ≤238 | ≤205 | ≤205 | ≤200 |
| Heat changer | CH100 | CH200 | RD4100 | RD6102 | RD6102 | CH700 | |
| Rotating Direction at Output End | Counter-clockwise | ||||||
| Lubrication Oil | 15W40 | ||||||
| Lubrication Oil Content | L | 4.5 | 6.5 | 9 | 13 | 13 | 24 |
| Lubrication Method | Pressure and splash | ||||||
| Starting Method | Electric | ||||||
| PTO Type | Option:1.Shaft2.Coupling3.Drive Plate | ||||||
| Net Mass | kg | 250 | 320 | 420 | 650 | 720 | 1100 |
