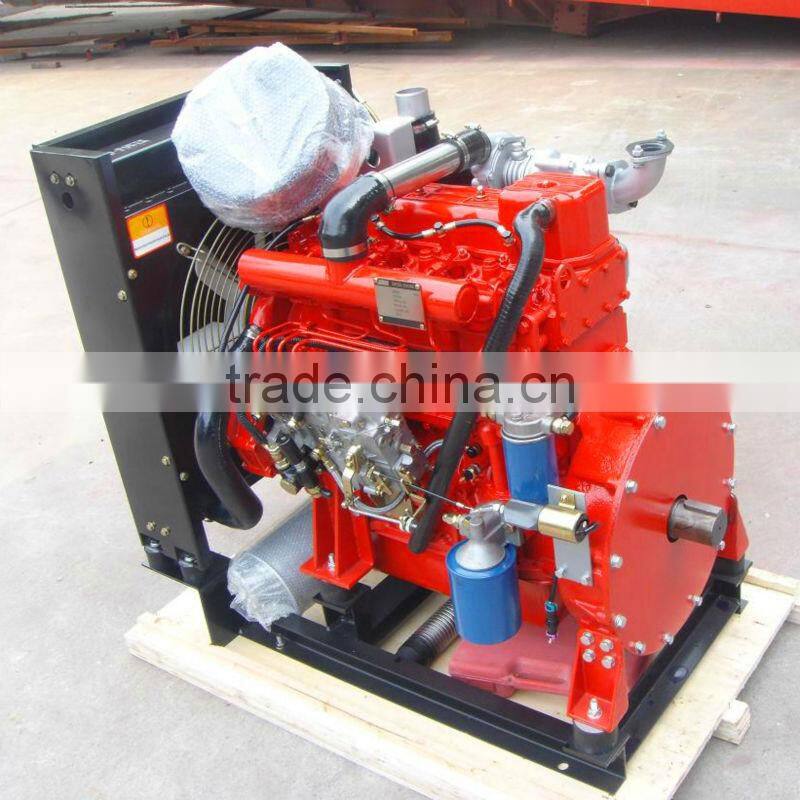

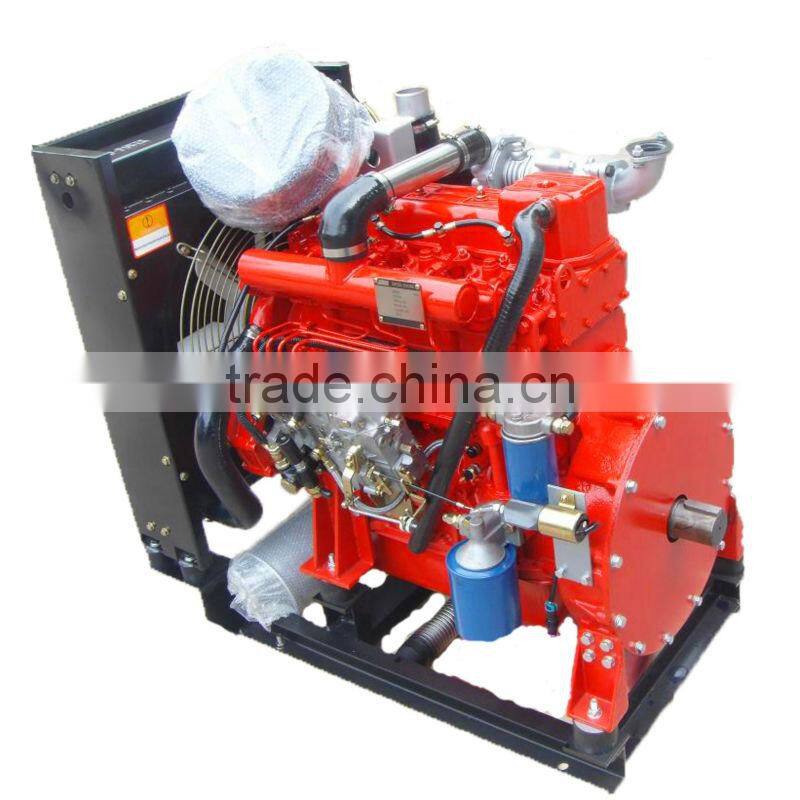

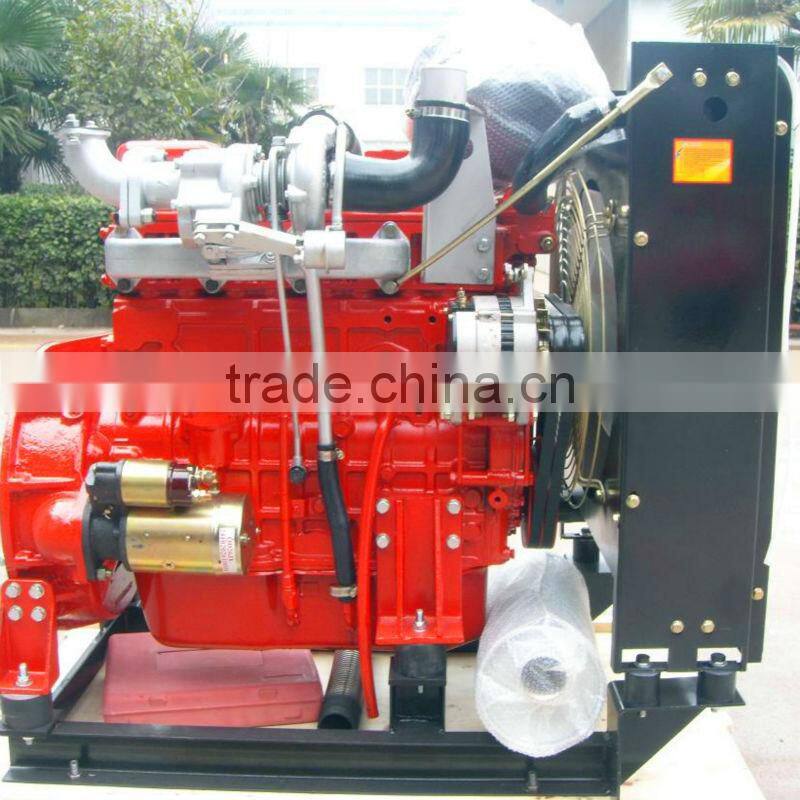

Fire fighting training equipment with turbocharger 4105T

Name: Fire fighting training equipment with turbocharger 4105T
Brand: HALOTOP
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Place of Origin:

Jiangsu, China

Brand Name:

HALOTOP

Model Number:

4105T

Fire fighting training equipment
with shaft, radiator, air fliter,muffler,solenoid valve.

Product Description

Fire fighting equipment with turbocharger 4105T

Fire fighting equipment / diesel engine / fire fighting training equipment

Engine Model		380	480	4100	4105T	6102BZS
Type		Vertical,water-cooling 4-stroke,direct-injector
Aspiration		Nature			Turbo-charged
Number of Cylinders		4	4	4	4	6
Bore*Storke(mm)		80*90	85*90	100*118	105*118	102*118
Compression Ratio		18:01	18:01	18:01	17.5:1	17:01
Total Displacement(L)		1.357	1.809	3.705	4.085	5.78
Rated Power	KW/HP	20/27	27.8/37	56/75	90/122	125/170
Rated Speed	r/min	3000	3000	3000	3000	3000
Max.torque	N.m	≥72.6	99.8	≥193	≥315	≥438
Fuel Consumption	g/kW.h	≤242	≤241	≤238	≤238	≤205
Radiator		RD480	RD480	RD4100	RD4105T	RD6102
Rotating Direction at Output End		Counter-clockwise
Lubrication Oil		15W40
Lubrication Oil Content	L	4.5	6	9	11	13
Lubrication Method		Pressure and splash
Starting Method		Electric
PTO Type		Option:1.Shaft2.Coupling3.Drive Plate
Net Mass	kg	250	300	420	500	720
