Home > Industrial Equipment & Components > Engine & Part > Engine > Fire Fighting Equipment Diesel Engine With Heat Exchanger 490

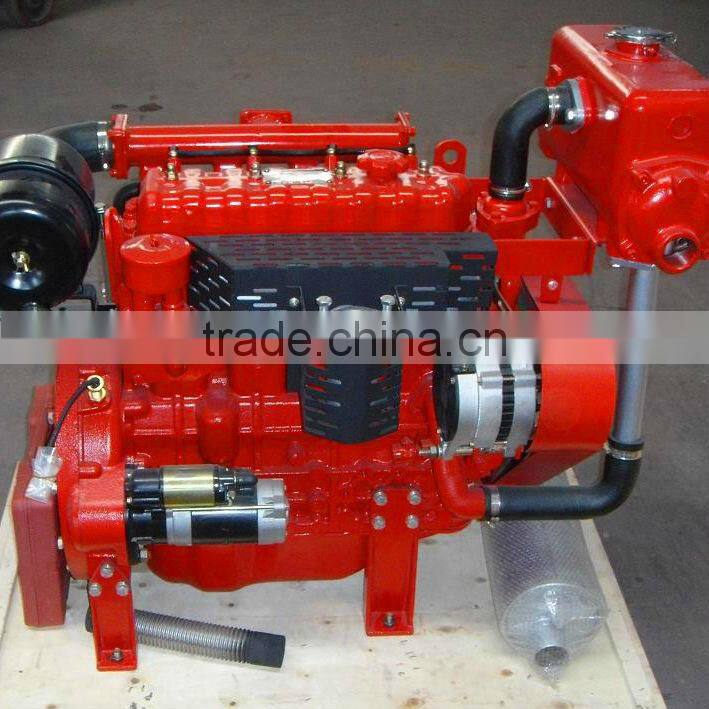

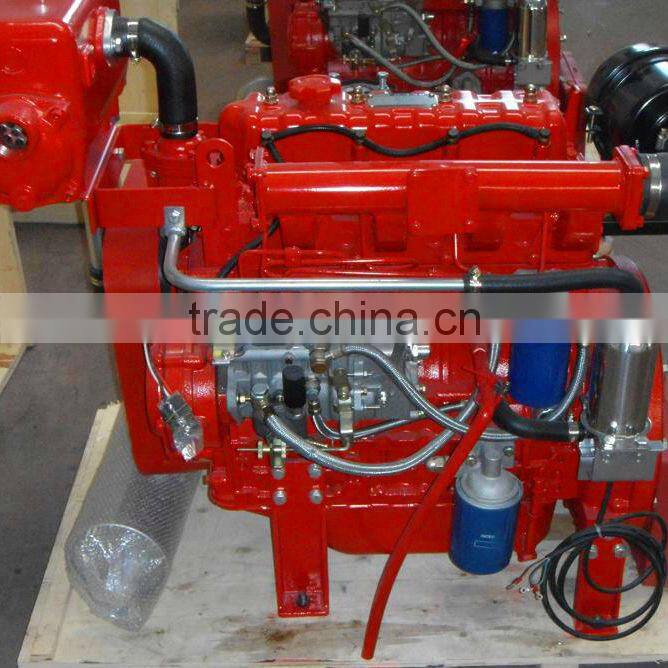

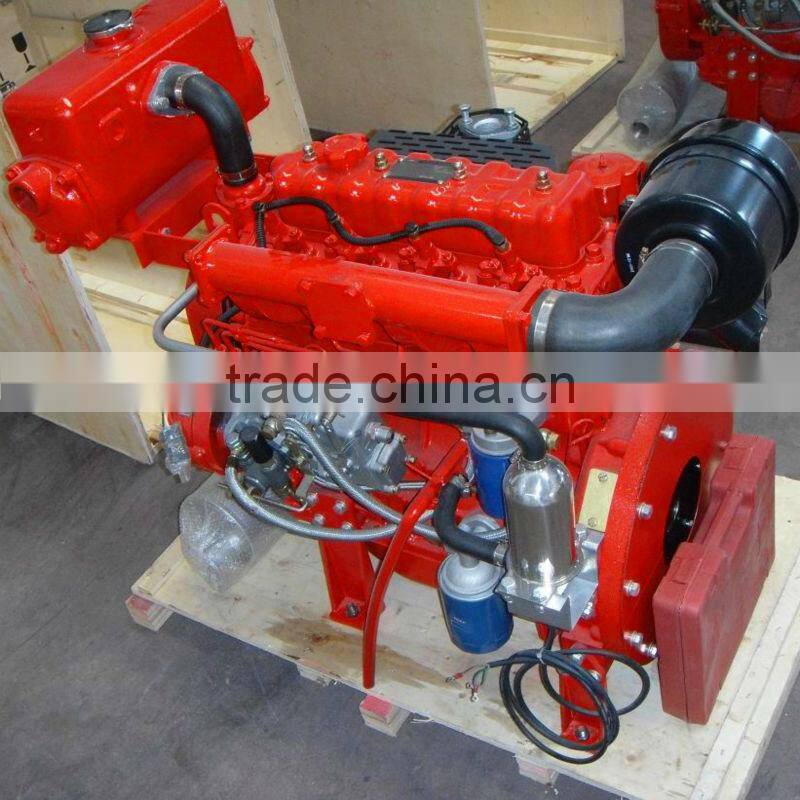

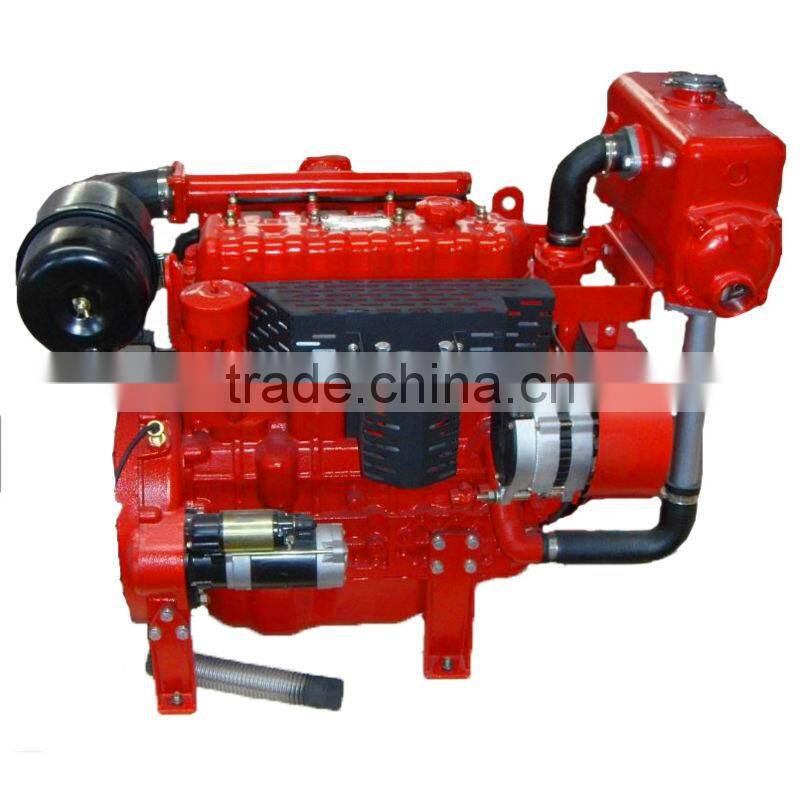

Fire Fighting Equipment Diesel Engine With Heat Exchanger 490
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Fire fighting diesel engine and system
Fuel:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fire Fighting Equipment With Heat Exchanger 4102NegotiableMOQ: 1 Set -
Fire Fighting Training Equipment With Heat Exchanger 380NegotiableMOQ: 1 Set
-
Fire Fighting Training Equipment With Heat Exchanger 485NegotiableMOQ: 1 Set
-
Fire Fighting Training Equipment With Heat Exchanger 4100NegotiableMOQ: 1 Set
-
Fire Fighting Training Equipment With Heat Exchanger 6102BQNegotiableMOQ: 1 Set
Condition
New
Usage
Other, Fire fighting diesel engine and system
Fuel
Diesel
Stroke
4 Stroke
Cylinder
Multi-cylinder
Cold Style
Other, Water-cooled
Start
Electric Start
Place of Origin
Jiangsu, China
Brand Name
HALOTOP
Model Number
490
Dimension(L*W*H)
113X68X97 mm
Weight
320 KGS
Warranty
One year near our servise station in Dubai
After-sales Service Provided
Overseas service center available
Specifications
Fire fighting equipment with heat exchanger1.with drive plate, radiator, air fliter,muffler,solenoid valve.
2.diesel engie
Product Description
Fire fighting equipment with heat exchanger 490
Fire fighting equipment / diesel engine / heat exchanger equipment
| Engine Model | 485 | 490 | 4102 | |
| Type | Vertical,water-cooling 4-stroke,direct-injector | |||
| Aspiration | Nature | |||
| Number of Cylinders | 4 | 4 | 4 | |
| Bore*Storke(mm) | 85*95 | 90*105 | 102*118 | |
| Compression Ratio | 18:01 | 18:01 | 17.5:01:00 | |
| Total Displacement(L) | 2.156 | 2.67 | 3.855 | |
| Rated Power | KW/HP | 33.5/45 | 42/58 | 63/85 |
| Rated Speed | r/min | 3000 | 3000 | 3000 |
| Max.torque | N.m | ≥118.2 | ≥149.7 | ≥232 |
| Fuel Consumption | g/kW.h | ≤241 | ≤258 | ≤238 |
| Heat changer | CH200 | AH300 | CH300 | |
| Rotating Direction at Output End | Counter-clockwise | |||
| Lubrication Oil | 15W40 | |||
| Lubrication Oil Content | L | 6.5 | 7 | 11 |
| Lubrication Method | Pressure and splash | |||
| Starting Method | Electric | |||
| PTO Type | Option:1.Shaft2.Coupling3.Drive Plate | |||
| Net Mass | kg | 320 | 360 | 450 |
