wavecom fastrack m1306b gsm/gprs modem
wavecom fastrack modem gprs and gsm ethernet gprs modem
Specification:
Each channel with separate power switch
Each individual module can be demolished
industrial chassis, elegant shell
GSM frequency: 850/900/1800/1900MHZ
16 x SIM card(big/small) slots
Wireless access to internet
Comply with GSM phase2 standard
Dual-band/Quad-band(optional)
RS-232/USB interface(optional)
64 SIM Card supported (Big/Small)
Optional MMS,data,voice function
Can send and receive English SMS MMS in bulk
Basic Feature:
Asynchronous, transparent or non-transparent, to a maximum 14400 bits / s
Baud Rate : 300-115200 bits / s
Automatic baud rate: from 2400 to 19200 bits / s
Fax support three
Switched voice and fax
V.42, V.42bis
GPRS compatible
WAP compatible

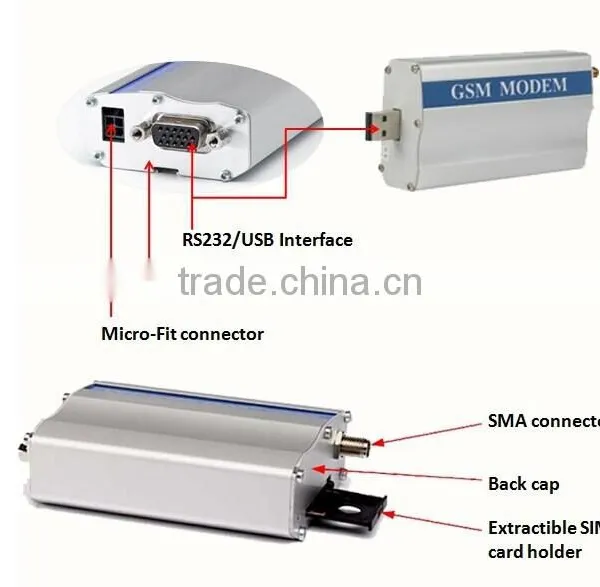

SMA Antenna Interface
SIM Card Outlet
Power connector
RS-232, the Mini-DB-9 connector
AT command control ( GSM 07.07 and 07.05)
Hardware Feature:
Support dual-band GSM: 900/1800 MHz
Meet the ETSI GSM 2 + standards
Class 4 ( 2W @ 900 MHz) Class 5 ( 1W @ 1800 MHz)
5 -24 VDC power supply (which can be directly connected to the nickel- metal
hydride or lithium batteries)
Operating Temperature: -20 ° C - + 55 ° C
Storage temperature: -25 ° C - + 70 ° C
Size: standard 1U chassis
USB2.0 connection
Size:32x21x14cm 6.5KG
Packing list:
1)power cable,
2)power adapter
3)USB Cable
4) 32 antennas
5)Driver CD
