Telemetry Data Logger, Sms Controller, Plc Controller

Specifications

   Telemetry Data Logger, sms controller, plc controller

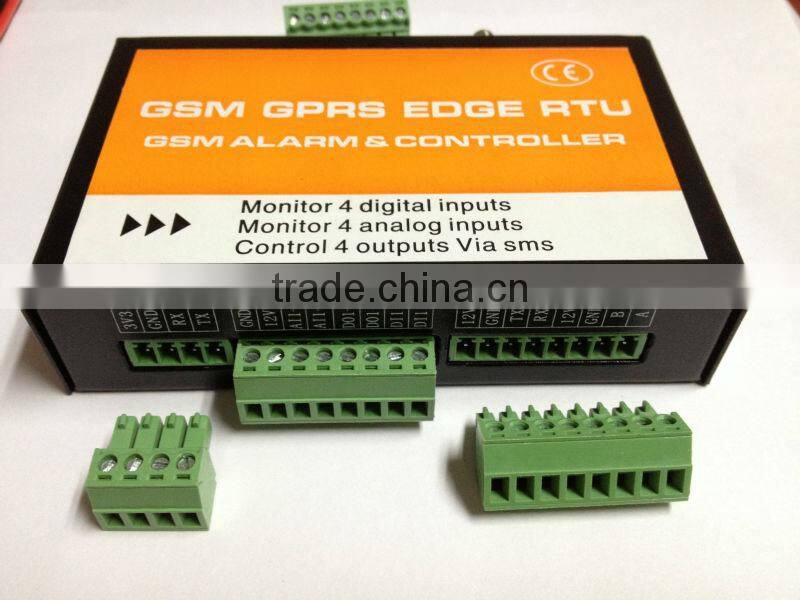

The Q26_RTU GSM/GPRS/EDGE Remote Monitoring& Remote Control System is a complete Remote Telemetry unit. It contains a GSM/GPRS/EDGE Modem and control circuitry. It is capable of controlling up to 2 Relay outputs and monitor 2 Digital inputs and 2 Analogue inputs.(Analogue input support: Detect Water leaks. Monitoring Temperatures for out-of-range conditions, Monitor Humidity for Damaging High Humidity Levels and monitor fuel levels).

The Q26_RTU GSM/GPRS/EDGE Remote Monitor &Remote Control System is operated by the sending of SMS and GPRS/EDGE. The GSM/GPRS/EDGE controller
can be used as a remote telemetry system; users can directly control the output relays from a simple text message or GPRS. The controller can also be used as a
remote monitoring system; the unit can automatically notify the user whenever the any inputs change state and inputs counter.
The Q26_RTU is complete with extend function include DI/DO/AI by UART2, support back up battery and built-in Quad-Band Modem -900/1800/850/1900.

Features

 Pictures show

Interface

Power:  12V (12V-35V)

       Correspond Relay Specification

Communicate:   485/232 (Factory Default: 232)

              485:       (A   B)

              232:       (RX1       TX1        GND)

Digital Input:

              DI1:        (DI1+     DI1-)

              DI2:        (DI2+     DI2-)

Digital Output:

              DO1:      (DO1+    DO1-)

              DO2:      (DO2+    DO2-)

Analog Input:     Transmitter (temperature /water level / humidity/ pressure)

              Type:     Current (4-20mA)

              AI1:        (AI1+      AI1-)

              AI2:        (AI2+      AI2-)

Indicator Light:

              GSM:     Device Register State

              ACT:      Reserve for customized

              NET:      Reserve for customized

              GPS:      Reserve for customized

SIM Card:     3V/1V8

Access Equipment:   Serial Port Equipment (Camera /PLC….)

              Reserve for customized

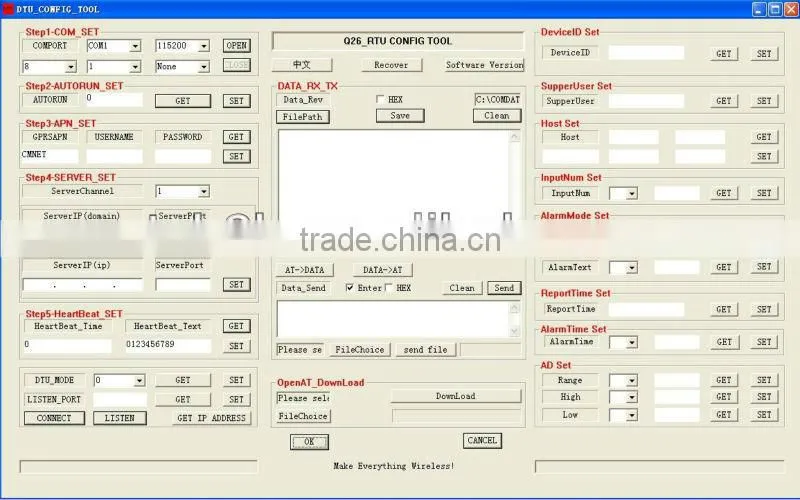

Configuration software:

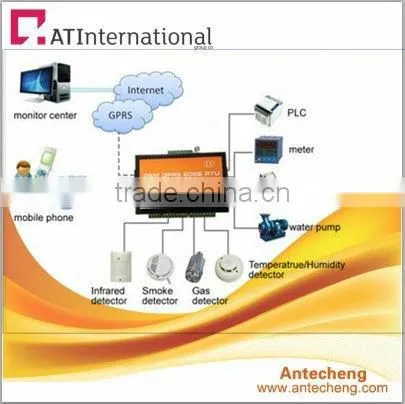

  Application

1) SMS/MMS/Voice solutions Remote data transmit
2) POS Machine Recharging system
3) Vending machine Power/Oil/Gas system
4) Remote LED system Environmental detection
5) IPC system Remote meter reading
6) Remote controlling system
7) Singlechip remote data communication system
8)temperature sensor
9)Environmental monitoring
10)industrial water pressure monitoring
11)pressure monitoring

Shopping Guide:

Warranty :One year

After -sell service : technician support

Packing :white paper box

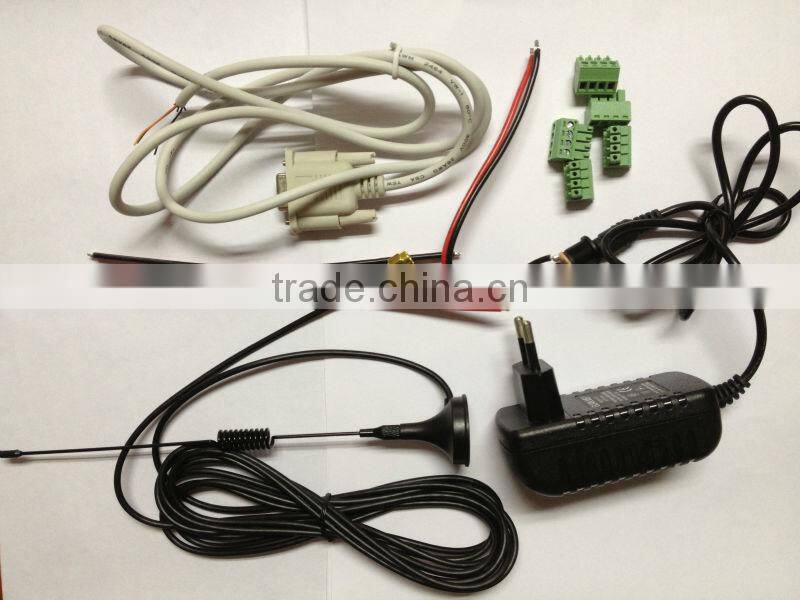

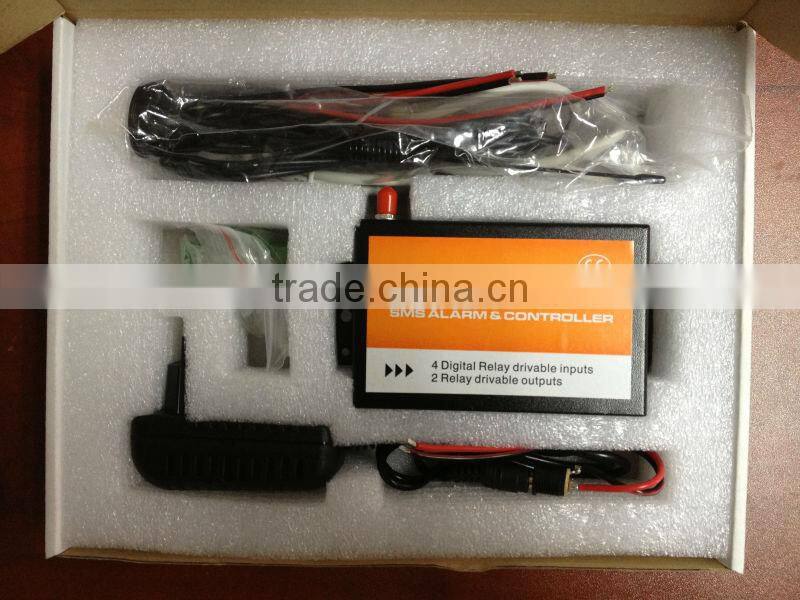

Standard package : power supplier x 1 ,RS232 cable x1 .GSM antenna x1 .connecting port x1

Option :GPS antenna Internal .Gps Module .Internal battery . Temperature sensor .humidity sensor .smoke sensor .Led Screen ,gas sensor (payment another)
