RS 232 M1306B Modem With MC368 Module

Specifications

single ports modem USB m1306B wavecom modem

RS232 GSM/GPRS MODEM M1306B

Wavecom’s rugged, discrete Fastrack GSM/GPRS modem has proven itself for stable, reliable performance on wireless networks worldwide for more than five years. Updated with new features, the now legendary Fastrack continues to deliver rapid time to market and painless integration for machine-to-machine applications.
Housed in a rugged metallic casing, 25 mm shorter than the previous version, the Fastrack M1306B now offers two general purpose input/output access points to connect peripherals. Fully certified, the dual-band 900/1800 MHz Fastrack M1306B offers GPRS Class 10 capability, supports Open AT and IT protocols such as IP connectivity.
It is included as part of the basic Autopage Package. Most Autopage users depend on it to send and receive messages, or keep it as a back up, but it can also be used for many other purposes. We supply it with a 240V mains power supply, a straight helical aerial and an RS232 data cable to connect it to your computer.

Functions of different modules

Main Features:

• EGSM 900/1800MHz
• Supports voice / data / fax / SMS (text and PDU modes) / GPRS class 10
• OpenAT capable for embedded applications
• Optional TCP/IP stack permitting direct UDP/TCP connectivity and POP3/SMTP/FTP services
• 3V SIM Interface

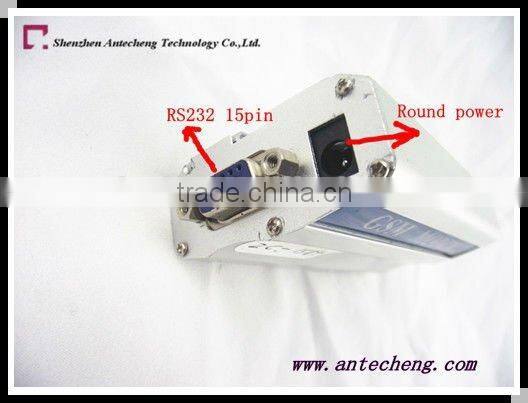

• 15/9 pin connector for voice and RS-232 serial interface
• Fully type-approved
• Serial port shutdown power saving feature
• Two general-purpose input/output pins built into Molex power connector
• Compatible with all laptops and PCs installed with Win 98SE / 2000 / ME / XP, Linux and Mac Os

Details:

• Band: Dual-band EGSM900/1800 MHz
• Dimensions: 2.6x7.4x6
• Input Voltage: 5.5 to 32v DC
• Power Supply: 14mA in idle mode with no RS232 communication @ 5.5VDC, 31mA in idle mode with active RS232 communication at 5.5VDC.
