automatic water motor controller with level transmitter for sunlight monitoring

FOB Price

USD $70 - $100 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Products Status:	Stock	Style:	External	Type:	Wireless
Interface Type:	Other, RS232/RS485	Transmission Rate:	14.4Kbps	Certification:	CE
Brand Name:	ATC	Model Number:	ATC60A02	Place of Origin:	Guangdong, China

Packaging Details

Neutral Packing

Product Description

automatic water motor controller with level transmitter for sunlight monitoring

Introduction:

There is a built-in microprocessor chip running on a real-time operating system. It gives immediate response to any change in all inputs and outputs condition. A GPRS modem is embedded in the GPRS RTU, user has to subscribe a SIM card for the GPRS RTU. The GPRS RTU can be installed in any location under GSM coverage.

Product Description

2 digital inputs feature

Upload data when inputs are triggered
Upload input status on schedule
Can be reuse as pulse counter input
SMS alarm when inputs are triggered
NO or NC type can be preset
Configurable for alarm and recover sms
Remote query inputs status
2 relay drivable outputs
Remote On/Off/Pulse output via GPRS or SMS
Remote query output status by GPRS or SMS
Can be activated by alarm
Can be activated by call
Can be activated on schedule

GPRS feature
Support connects servers, the servers must connect internet and have static public IP address or Dynamic Domain name
GPRS Transmission base on TCP/IP

Advance features

Specifically designed for remote Hydrological Data Acquisition System base on GPRS
Adopted highly integrated industrial CPU
sensor (optional)
Internal battery and providing power cut off alarm(optional)
Easy used GUI configure software

Specifications

Reference scope
DC Power supply 9-28V DC (Standard adapter: DC 12V/1.5A)
Power consumption 12V input Max. 150mA/Average 50mA
Frequency range 900/1800/850/1900MHZ
SIM Card Supporting 3V SIM Card
Antenna 50 Ω SMAAntenna interface
Serial RS232/RS485
Temperature range -30°C ~ +80 °C
Humidity range Relative humidity 95%

Applications

Security Alarm System applications;
Supervision and monitoring alarm systems;
Automatic monitoring system;
Vending Machines security protection;
Pumping Stations, Tanks, Oil or Water levels;
Buildings and Real Estate;
Weather Stations;
River Monitoring and Flood Control;
Oil and gas pipelines;
Corrosion protection
Temperatures, water leakage applications;
Wellheads, boat, vehicle;
Energy saving, street lights control system;
Valve controls;
Transformer stations;
Unmanned machine rooms;
Control room application;
Automation System, M2M;GSM Access Control System, GSM Gate Opener, etc.

Notes:

Standard : 12v /European standard power supply

Please contact us before place order to confirm which power Supply :

American standard , UK standard ,Austrian standard Add 2.5USD; 24V Voltage : Add 3.3USD

Standard / ATC60A01 / ATC60A02 / ATC60A03 Support RS232 mini USB , ATC60A00 only RS232 If RS485 Interface , Add 6.7USD

Standard backup battery : 4USD support 2-4hour

Optional Function .LCD or Camera ,GPS , Sensor , external relay ,solar panel Just contact us any time Best price will provide

Software : Android Apps will provide free , free upgrade any time for the Configuration software that can configure by PC or Apps of mobile

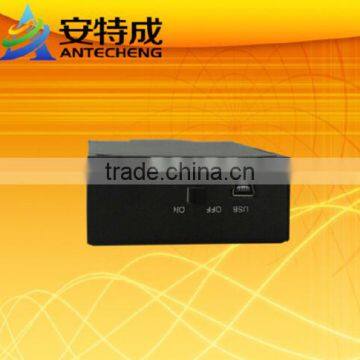

Products Pictures:

How to works :

· AI: Analog input (4-20mA/0-5V/0-10V) DI=Digital input DO=digital relay output

· AI is connect with different sensor for detecting value .like temperature /humidity /pressure value

· DI is detect device is on/off status .UART port is for meter reading

· With DTU(Data transfer unit ) feature .data got from AI/DI/UART/Rs232/RS485/USB can be send to your server Software /Mobile by GPRS/SMS

· DO with relay is switch on/off on others devices . You can control is by Mobile (SMS command ) or Server software (GPRS )

Packaging & Shipping

optional Accessories:

Water overflow Level Sensor

Oil overflow Level Sensor

Water Leak Sensor

Temperature Sensor

Door Sensor

PIR Motion Detector

Smoke Detector

Gas Leak detector

Glass Break detector

Shock detector

Power failure detector .

Aluminum .plastic.water proof box

Camera .Led Screen .Gps location .spare battery
