Help CenterEverflying One Layer Water Hose Extrusion Production Line
Related Products
-
Drip Irrigation Hose Making EquipmentUS$ 100,000 - 250,000MOQ: 1 Set -
Inline Round Drip Tape Making Machine With High QualityUS$ 40,000 - 60,000MOQ: 1 Set
-
Plastic Molding Machine for Labyrinth Drip Irrigation Tape MachineUS$ 25,000 - 30,000MOQ: 1 Set
-
Plastic Extruder-Factory Direct Sales for Labyrinth Drip Irrigation Tape MachineUS$ 25,000 - 30,000MOQ: 1 Set
-
Labyrinth Irrigation Drip Pipe Production LineUS$ 22,000 - 27,000MOQ: 1 Set
»Features and application
Specifications of the products:
Ø110, Ø125,Ø145,Ø160 ,Ø180, Ø200,Ø220
Applications of the products:

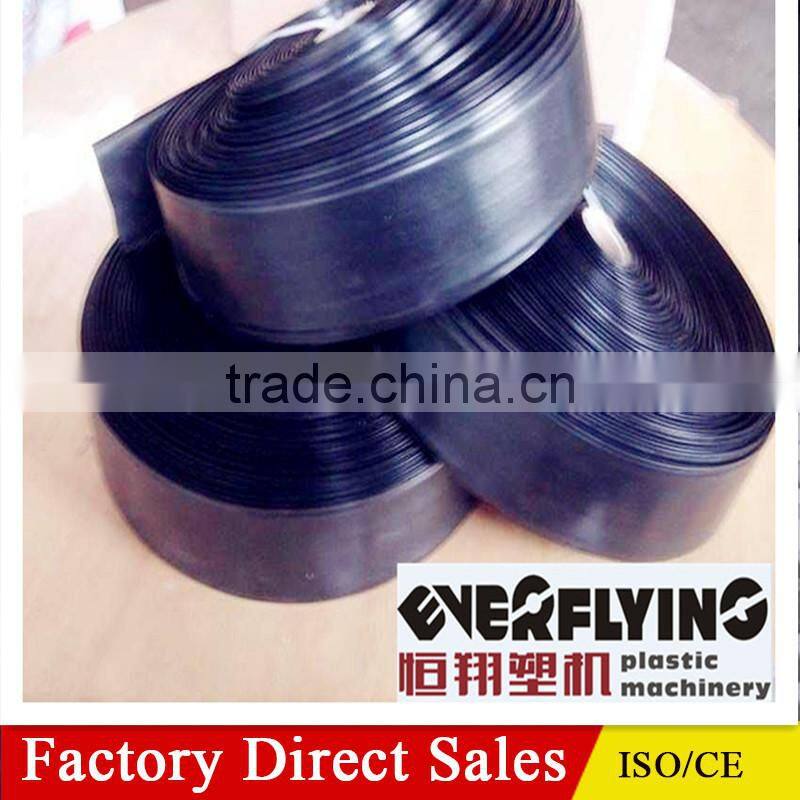

It is widely used for the irrigation of farmland and greenhouse planting to replace the original hose.
Properties of the products:
The double-layer bottom blowing water delivery belt uses bottom blowing method with two extruders to co-extrude . It adopts labyrinth water immersion to cool for molding, which strengthens the burst strength and pressure of the water delivery belt.The physical strength is three types of common water hose (water delivery belt).

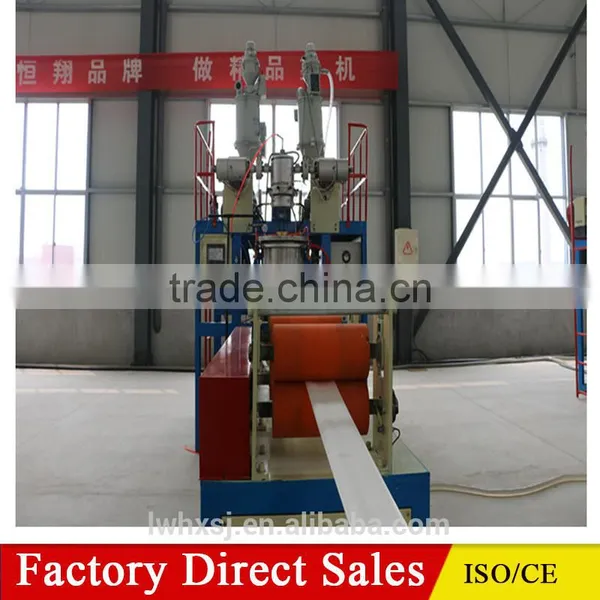

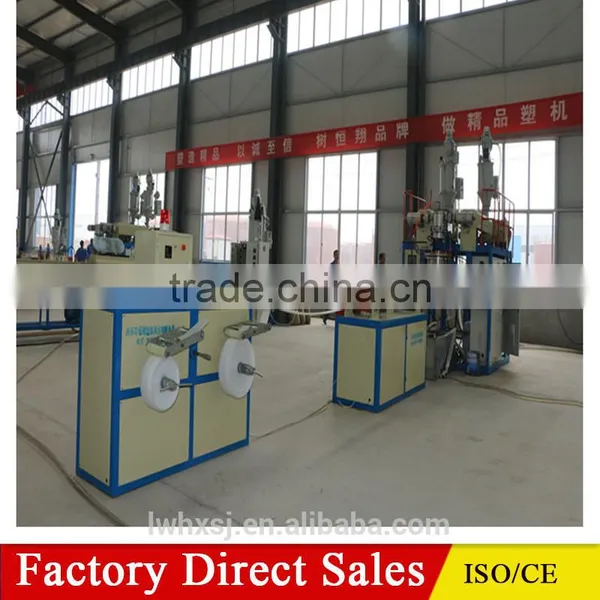

Mechanical characteristics of the double-layer bottom blowing water delivery belt:
1. It adopts two extruders with equivalent models sharing the same double-layer die head.It uses different raw materials to co-extrude and adopts frequency conversion timing control.
2. The water delivery belt machine set and the water delivery belt molding adopt the labyrinth water immersion type vaccum molding device.
3. It adopts the parallel crawer hauling and frequency conversion device.
4. The coiling of the water delivery belt machine set uses double-stage central rolling-up and torque tension control.
5. The electric control uses the intelligent digital subdivision control.
»Technical parameters
| Extruder model | SJ-55*2 | SJ-50*2 |
| Screw dia./L:D | Ø55/30:1 | Ø55/30:1 |
| Motor power(kw) | 22 * 2 | 18.5 * 2 |
| Specifications of the die head(mm) | Ø110, Ø120,Ø145,Ø150 ,Ø180, Ø220 (selected by users) | |
| Cooling method | water cooling | |
| Sizing sleeve | Matched with the die head(Ø11-Ø220) with the material of tin bronz | |
| Specifications of the vaccum pump (kw) | 2.2 | 1.5 |
| Haul-off motor (kw) | 2.2(frequency control) | 1.5 (frequency control) |
| Roll-up style | Double-position central wind-up | |
| Speed of the production line | 8-80m/min | |
Laiwu EverflyingPlastic Machinery Co.,Ltd is a pacesetting technologically advanced enterprise that devoted to the R&D and businesses of plastic machines.The company always taking “People oriented,Honest operation as tenet;draws support form quality to occupy the marketextends market by developing products;and draws support from management to gain benefit and growth”.
Our products are sold to the customers at home and abroad,more than 30 provinces ,and other countries,such as Russia,India,Ukraine,Malaysia,Australia and so on.
Exhibition glance:
Sales Manager Lina lee
linalee288 Mobile:0086-13563488171
