Specifications
1. diameters:20-110mm2. controled by PLC
3. speed >=3-8
4. max. weight: 45,000

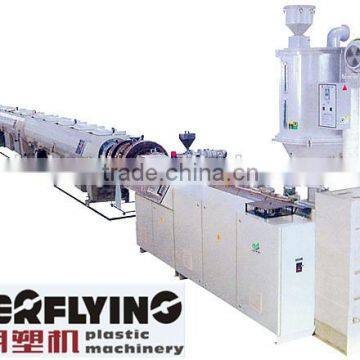

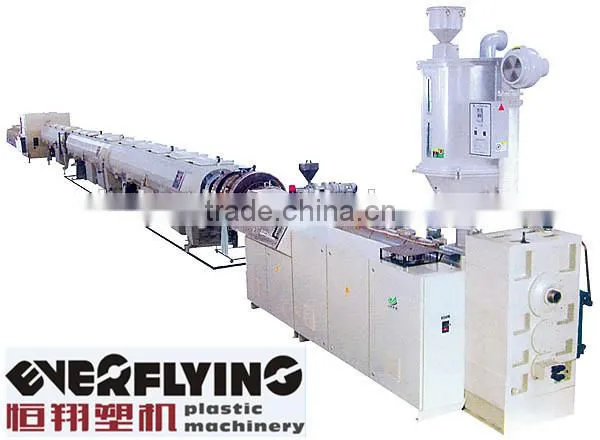

This production line usually uses the raw material, such as PPR,PERT,Expand other resin. The production has superior performance of non-toxic,thermostability,long operating life,no sediment,anti-corrosion and antifreezing. It can be used widely in supplying cold hot water,oil and corrosive liquid. And at the same time, it also can be used in caliduct and floor heating.
Main technical parameters:
Specifications Parameters | PPRG-32 | PPRG-63 | PPRG-110 |
Specifications of the extruder | SJ65*30 | SJ90*30 | SJ120*28 |
Specifications of the pipes produced mm | Φ20-Φ32 | Φ40-Φ63 | Φ75-Φ110 |
Speed of the production line m/min | ≥3-8 | ≥2-5 | ≥1.2-2.5 |
Compressed air (≥0.6MPa) m3/min | 0.3 | 0.3 | 0.5 |
Flow rate of the cooling water m3/h | 2 | 4 | 8 |
Total power kw | 85 | 115 | 160 |
Overall dimension (L*W*H) mm | 20,000*4,000*1,700 | 26,000*4,500*1,750 | 30,000*5,000*1,750 |
Weight kg | 3,500 | 4,000 | 4,500 |
