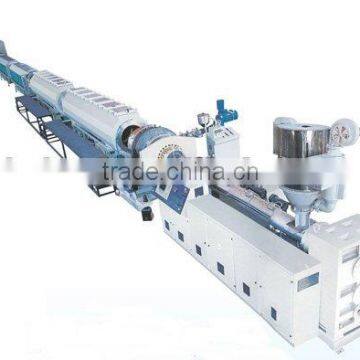

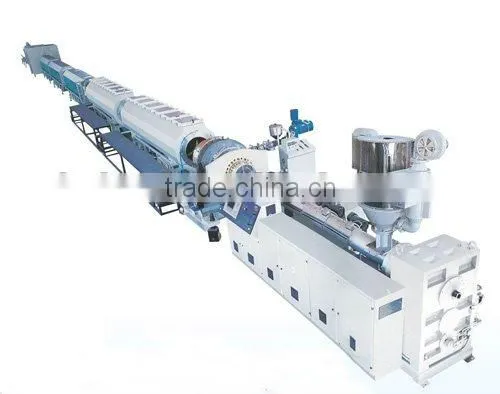

PE, PP-R Tubular Products Production Line
- 10 Set / Sets per Month
- Qingdao
- T/T
Product Details
| Condition: | New | Application: | Pipe | Plastic Processed: | PE |
| Screw Design: | Single-screw | Place of Origin: | Shandong, China | Brand Name: | Henagxiang |
| Model Number: | PPRG-320,PPRG-63,PPRG-110, | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
1. high efficiency2. good output
The production line adopts PLC to control, can realize the synchronic speed control of the main motor of the extruder and traction machine. It possesses high performance human-machine interface. All the technology parameters can be set and displayed through the touch screen: the cutting machine and fix length and cut automatically. The temperature of the die adopts imported intelligent temperature control meter, so that the quality of the pipes is assured.
Main technical parameters:
Specifications Parameters | PPRG-32 | PPRG-63 | PPRG-110 |
Specifications of the extruder | SJ65*30 | SJ90*30 | SJ120*28 |
Specifications of the pipes produced mm | Φ20-Φ32 | Φ40-Φ63 | Φ75-Φ110 |
Speed of the production line m/min | ≥3-8 | ≥2-5 | ≥1.2-2.5 |
Compressed air (≥0.6MPa) m3/min | 0.3 | 0.3 | 0.5 |
Flow rate of the cooling water m3/h | 2 | 4 | 8 |
Total power kw | 85 | 115 | 160 |
Overall dimension (L*W*H) mm | 20,000*4,000*1,700 | 26,000*4,500*1,750 | 30,000*5,000*1,750 |
Weight kg | 3,500 | 4,000 | 4,500 |
