Specifications of the products:
Space of the drip irrigation belts (mm): 150, 200, 300, 400, and 600 (selected by the user)
Dripping quantity of the drip irrigation belts (L/H): 1.8, 2.4, 2.8, 3.0 and 3.2 (selected by the user)
Applications of the products:

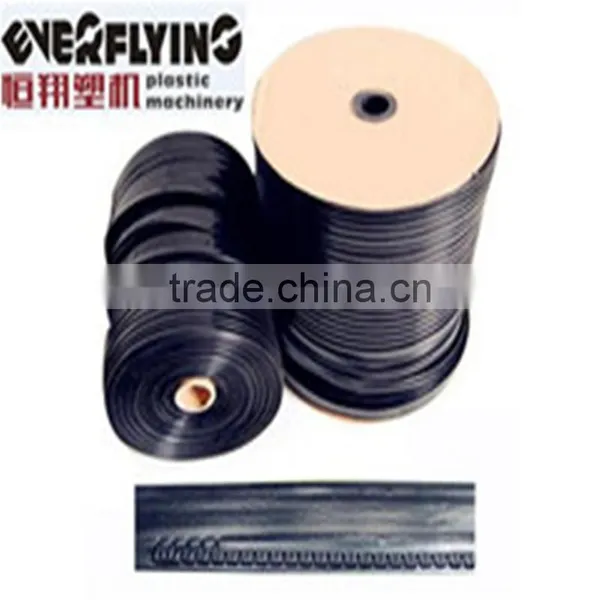

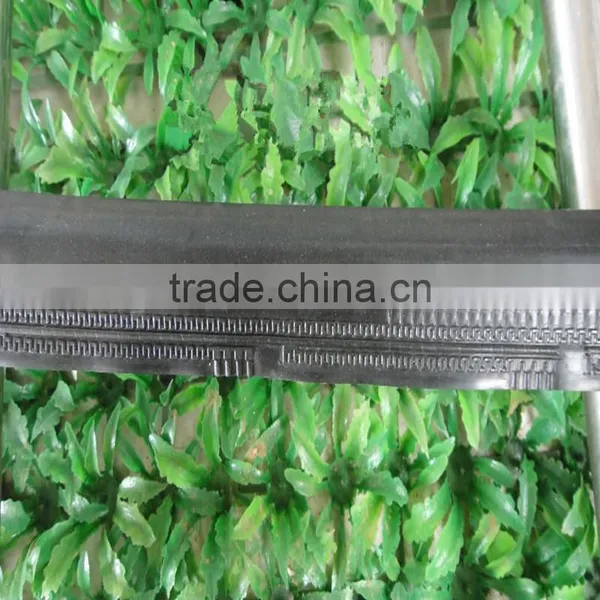

The double-layer drip irrigation belt is widely used for the irrigation of farmland and greenhouse planting.
Main technical parameters:
Model |
SM DGD 55/45 |
SM DGD 50/50 |
SM DGD 55/55 |
|||
Extruder model |
SJ-55 SJ-45 |
SJ-50 SJ-50 |
SJ-55 SJ-55 |
|||
Screw dia./ L:D |
Φ55/30:1 |
Φ45/30:1 |
Φ50/30:1 |
Φ45/30:1 |
Φ55/28:1 |
Φ55/30:1 |
Main motor power (KW) |
18.5 |
11 |
15 |
15 |
18.5 |
18.5 |
Die head specifications (mm) |
Φ55*1.5 or Φ53*1.5 (selected by the user) |
|||||
Cooling method |
Air and water cooling |
|||||
Driving power of the molding wheel (KW) |
1.5 or 1.1 (selected by the user) |
|||||
Haul-off power (KW) |
1.5 or 1.1 (frequency control) |
|||||
Coiling power (Nm) |
6*2 |
|||||
Total water consumption (m3/h) |
90~120 |
|||||
Speed of the production line |
2*20m/min |
2*30 m/min |
2*40 m/min |
|||
Overall dimension L*W*H |
12*1.5*2.3 |
|||||
The parameters above can be changed without notice.
According to the customer request,to keep the equipment intact.
Laiwu EverflyingPlastic Machinery Co.,Ltd is a pacesetting technologically advanced enterprise that devoted to the R&D and businesses of plastic machines.The company always taking “People oriented,Honest operation as tenet;draws support form quality to occupy the marketextends market by developing products;and draws support from management to gain benefit and growth”.
Our products are sold to the customers at home and abroad,more than 30 provinces ,and other countries,such as Russia,India,Ukraine,Malaysia,Australia and so on.
Exhibition glance:
Sales Manager Lina lee
linalee288 Mobile:0086-13563488171
If customer requires our technician to install in the customer’s factory, the expenses for one of supplier's technicians going to the country of customer to install equipment and train staffs, including fees of round-trip air ticket, accommodation, as well as service charge, and so on, will be afforded by buyer. Service charge will be USD80 per day.
