Specifications
1. pe material as raw material2. good output
3. high efficiency
Laiwu Everflying Plastic Machinery Co., Ltd was established at the beginning of 2004. The company is devoted to the R&D and businesses of plastic machines. The company takes “people oriented, honest operation” as tenet; draws support from quality to occupy the market; extends market by developing products; and draws support from management to gain benefit and growth. Our company has gained approval of ISO9001 International Quality System, and gained several Utility Model Patents.
workshop office
following are some awardings we gained
Our company mainly produces and operates various plastic machines for producing films, pipes, wires & cables. The company possesses a high qualified talent team, who can provide design, production and service according to the customers’ requirements.
Structural characteristics:

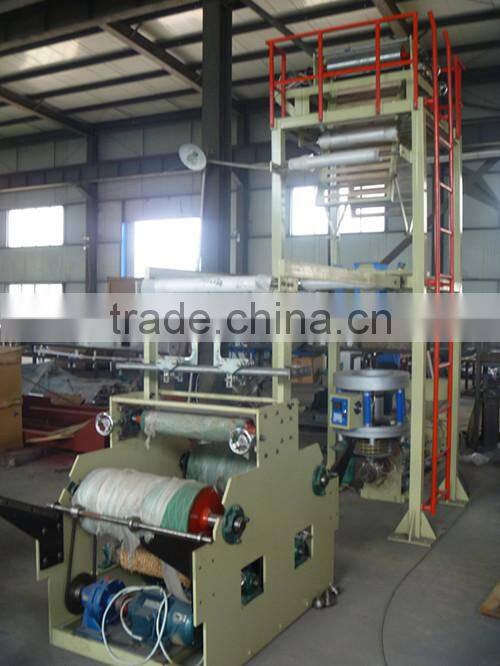

It is used for producing packaging films. It also can used for producing LDPE, LLDPE, HDPE film, packaging film, wrapping film, water-proofing and seepage prevention films after changed the screw and machine head. The products are widely used for the package of foodstuffs, drugs, boxed, cases, bottles, cloth rolls, floor slabs, pallets, glass, ceramics, papers, roll papers, lamps, and electrical equipment etc.
Main technical parameters:
Extruder |
Lower center |
|||||
Screw dia. mm |
35 |
45 |
50 |
55 |
65 |
75 |
L/D |
30:1 |
|||||
Main motor KW |
15 |
18.5 |
22 |
30 |
37 |
45 |
Rotating speed R/Min |
0~120 |
0~120 |
0~120 |
0~120 |
0~100 |
0~100 |
Heating power KW |
7 |
8.5 |
10 |
12 |
14 |
18 |
|
Temperature control sections |
3 |
5 |
5 |
5 |
7 |
7 |
Die head |
Spiral head |
|||||
|
Applicable raw material |
HDPE, LDPE, LLDPE |
|||||
Film width mm |
100~550 |
150~700 |
200~750 |
300~950 |
400~1,150 |
500~1,450 |
Film thickness mm |
0.008~0.2 |
|||||
Extruding capacity Kg/h |
10~30 |
15~60 |
15~75 |
20~90 |
25~120 |
30~145 |
Total power KW |
28 |
42 |
45 |
48 |
60 |
80 |
Net weight Kg |
2,500 |
2,800 |
3,000 |
3,200 |
4,000 |
5,000 |
|
Dia. of neckling die mm |
HL40 |
HL60 |
HL80 |
HL80 |
HL100 |
HL130 |
|
Dia. of neckling die mm |
L120 |
L150 |
L150 |
L200 |
L250 |
L300 |
Heating power KW |
3/4 |
3/4 |
3/4.2 |
3.5/5 |
3.5/6 |
|
Blower power KW |
2.2 |
4 |
||||
Air ring |
1 |
|||||
Haul-off machine |
Automatic haul-off |
|||||
Haul-off power KW |
0.75 |
1.1 |
1.5 |
|||
|
Width of haul-off roller mm |
600 |
750 |
800 |
1,000 |
1,200 |
1,500 |
Haul-off speed m/min |
12~120 |
|||||
Haul-off height mm |
4,000 |
4,200 |
4,200 |
4,500 |
5,000 |
5,500 |
Coiler |
Surface friction coiler |
|||||
Coiling position |
Single position (or double positions) |
|||||
Motor Kg/cm |
10 |
15 |
20 |
20 |
30 |
40 |
Coiling width mm |
650 |
800 |
850 |
1,050 |
1,250 |
1,550 |
|
Inner dia. of the paper pipe mm |
70 |
|||||
|
Outer dia. of the paper pipe mm |
90 |
|||||
Dimension |
1.8Φ3.6 |
2.0×4.0 |
2.1×4 |
2.2×4.2 |
2.2×4.8 |
2.6×5.0 |
