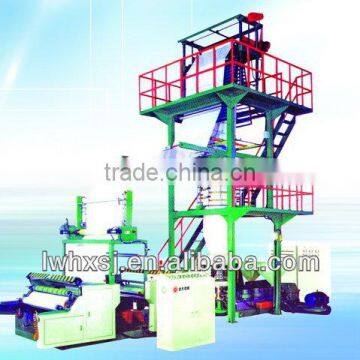

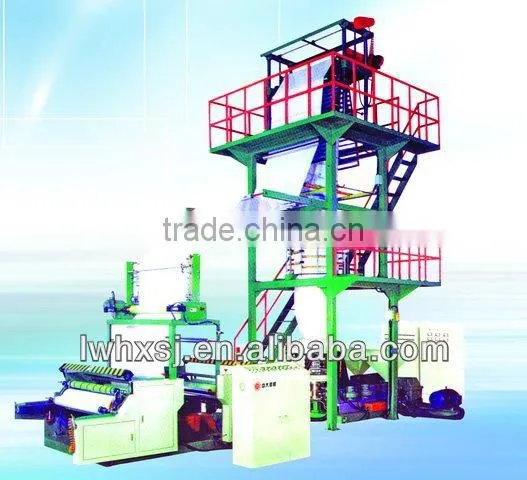

Help CenterWarpping Film Machine:Multilayer Packing Film Blowing Machine Set
Related Products
-
Warpping Film Machine:2FM2200-I Multilayer Packing Film Blowing Machine SetNegotiableMOQ: 1 Set -
Everflying PE Geomembrane Plastic Co-extrusion Film Making MachineNegotiableMOQ: 1 Set
-
High Speed Good Quality Everflying PE Geomembrane Plastic Film Making MachineNegotiableMOQ: 1 Set
-
PE Plastic Packaging Film Blowing Machine SetNegotiableMOQ: 1 Set
-
Good Quality Everflying Airport Luggage Wrapping Film Blowing MachineNegotiableMOQ: 1 Set
Specifications
It mainly adopts advanced technologies of high-efficiency and energy saving extruding system ,and automatic temperature control
»Features and application
It mainly adopts advanced technologies of high-efficiency and energy saving extruding system,rotating die head,elevation type haul-off,and automatic temperature control system.The die head and the screw are pocessed by imported precision machinetool.
Double layer co-extruding composition plastic packaging film machine unit is mainly used for producing LDPE,LLDPE,EVA,and mPE two-type two-layer or one-type two-layer composition films.It is the ideal equipment for producing various fliuid packaging film,printing film and black/white films.
Three layers co-extruding compostion plastic packaging film machine unit is mainly used for producing LDPE,LLDPE,EVA,and mPE three-type three-layer, two-type three-layer and one-type three-layer composition films.It is the ideal equipment for producing various fluid packaging film,printing film and black/white
film.
»Technical parameters
2FM-I
| Model | 2FM1100-I | 2FM1300-I | 2FM-1600-I | 2FM-2200-1 |
| Max.folding width(mm) | 1000 | 1200 | 1500 | 2000 |
| Applicable raw material | LLDPE,LDPE,LLDPE/LDPE Blend mPE.EVA | |||
| Composed layers | 2 | 2 | 2 | 2 |
| Screw dia.(mm) | Φ 45/ Φ 45 | Φ 45/ Φ 45 | Φ 50/ Φ 50 | Φ 55/ Φ 55 |
| Max.plasticizing capacity |
90kg/h(LDPE) |
90kg/h(LDPE) | 110kg/h(LDPE) | 150kg/h(LDPE) |
| Die head | Φ 200 | Φ 300 | Φ 350 | Φ 500 |
| Air ring | Dake type,steady wind structure | |||
| Length of haul-off roller(mm) | 1100 | 1300 | 1600 | 2200 |
| Wind-up speed | 3˜30m/min | |||
| Total power kw | 60 | 62 | 70 | 90 |
| Overall dimension | 7×5.5×5 | 7×5.7×5 | 7.5×6×7 | 7.5×6.6×7.6 |
| Weight tons | 10 | 11 | 12 | 12.5 |
3FM-I
| Model | 3FM1100-I | 3FM1300-I | 3FM-1600-I | 3FM-2200-1 |
| Max.folding width(mm) | 1000 | 1200 | 1500 | 2000 |
| Applicable raw material | LLDPE,LDPE,LLDPE/LDPE Blend mPE.EVA | |||
| Composed layers | 3 | 3 | 3 | 3 |
| Screw dia.(mm) | Φ 45/ Φ 45/ Φ45 | Φ 45/ Φ 45/ Φ 45 | Φ 50/ Φ 50/ Φ 50 | Φ 55/ Φ 55/ Φ 55 |
| Max.plasticizing capacity |
120kg/h(LDPE) |
120kg/h(LDPE) | 160kg/h(LDPE) | 200kg/h(LDPE) |
| Die head | Φ 200 | Φ 300 | Φ 350 | Φ 500 |
| Air ring | Dake type,steady wind structure | |||
| Length of haul-off roller(mm) | 1100 | 1300 | 1600 | 2200 |
| Wind-up speed | 3˜30m/min | |||
| Total power kw | 90 | 92 | 110 | 135 |
| Overall dimension | 9×5.5×6.5 | 9×5.7×6.5 | 9×6.5×7 | 9×7.5×8 |
| Weight tons | 12 | 12.5 | 14 | 16 |
